7063320 - Snapper 48" Z- VAC Triple Grass Catcher BLOWER MOUNT GROUP 48 Parts Diagram

48" Z- VAC Triple Grass Catcher

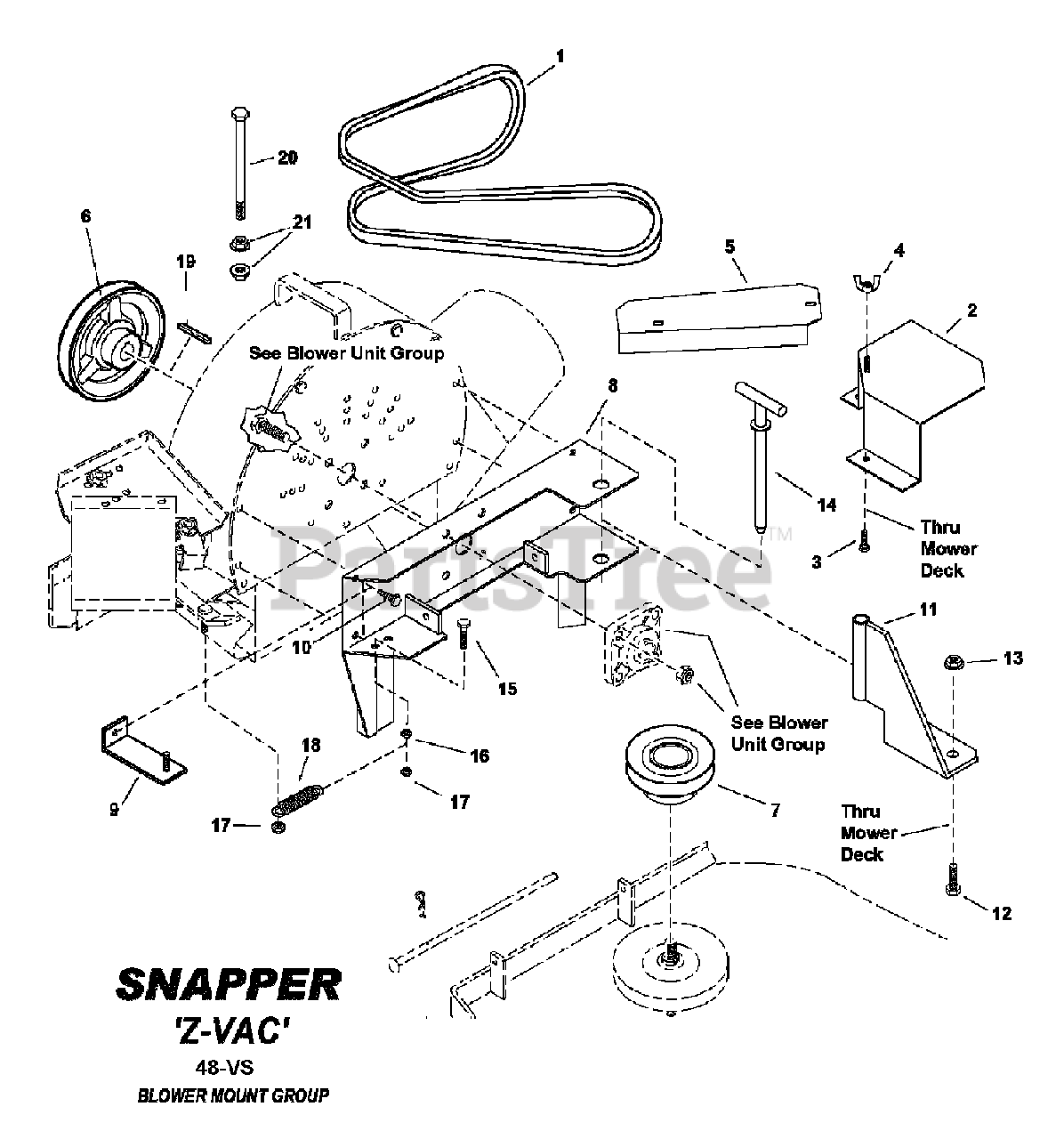

BLOWER MOUNT GROUP 48 Parts Diagram

  • Title

1

Snapper 3036323

BELT, A Section, 91.125" effective length

$

$

Not available

2

Snapper 3037161

WELDMENT, Belt Cover, Deck

$

$

Not available

3

Snapper 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

4

Snapper 7091537

WING LOCKNUT 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

5

Snapper 3037162

BELT GUARD, 48" Deck

$

$

Not available

6

Snapper 3046806

PULLEY, Blower Input, 48" & 52"
(Superseded to 3046806YP)

$64.99

$

Usually ships in 2-12 days

0

7

Snapper 3036324

PULLEY, 48"/52" Spindle
(Superseded to 3036324YP)

$75.99

$

Usually ships in 2-12 days

0

8

Snapper 3027505

WELDMENT, 48" Blower Mount

$

$

Not available

9

Snapper 3027507

WELDMENT, Guard Support Bracket

$35.99

$

Usually ships in 2-12 days

0

10

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 3027508

WELDMENT, Deck Mount Bracket
(Superseded to 3027508YP)

$66.99

$

Usually ships in 2-12 days

0

12

Snapper 7091304

* SCREW, 3/8-16 x 1" Hex Head Cap, GR5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

13

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

14

Snapper 3032118

WELDMENT, T-Handle Pin
(Superseded to 3032118YP)

$49.99

$

Usually ships in 2-12 days

0

15

Snapper 7027168

* SCREW, 5/16-18 x 1" Hex Head Cap, GR5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR B
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 17

0

18

Snapper 3020807

SPRING, Idler, Fast Vac
(Superseded to 3020807SM)

$18.99

$

Usually ships in 2-12 days

0

19

Snapper 7012315

KEY, 1/4 Square x 1.44
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

20

Snapper 7091617

SCREW, 3/8-16 x 6" Hex Head Cap, GR5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

21

Snapper 7090951

* NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0
