7063320 - Snapper 48" Z- VAC Triple Grass Catcher 3 BAG CATCHER MOUNT GROUP Parts Diagram

48" Z- VAC Triple Grass Catcher

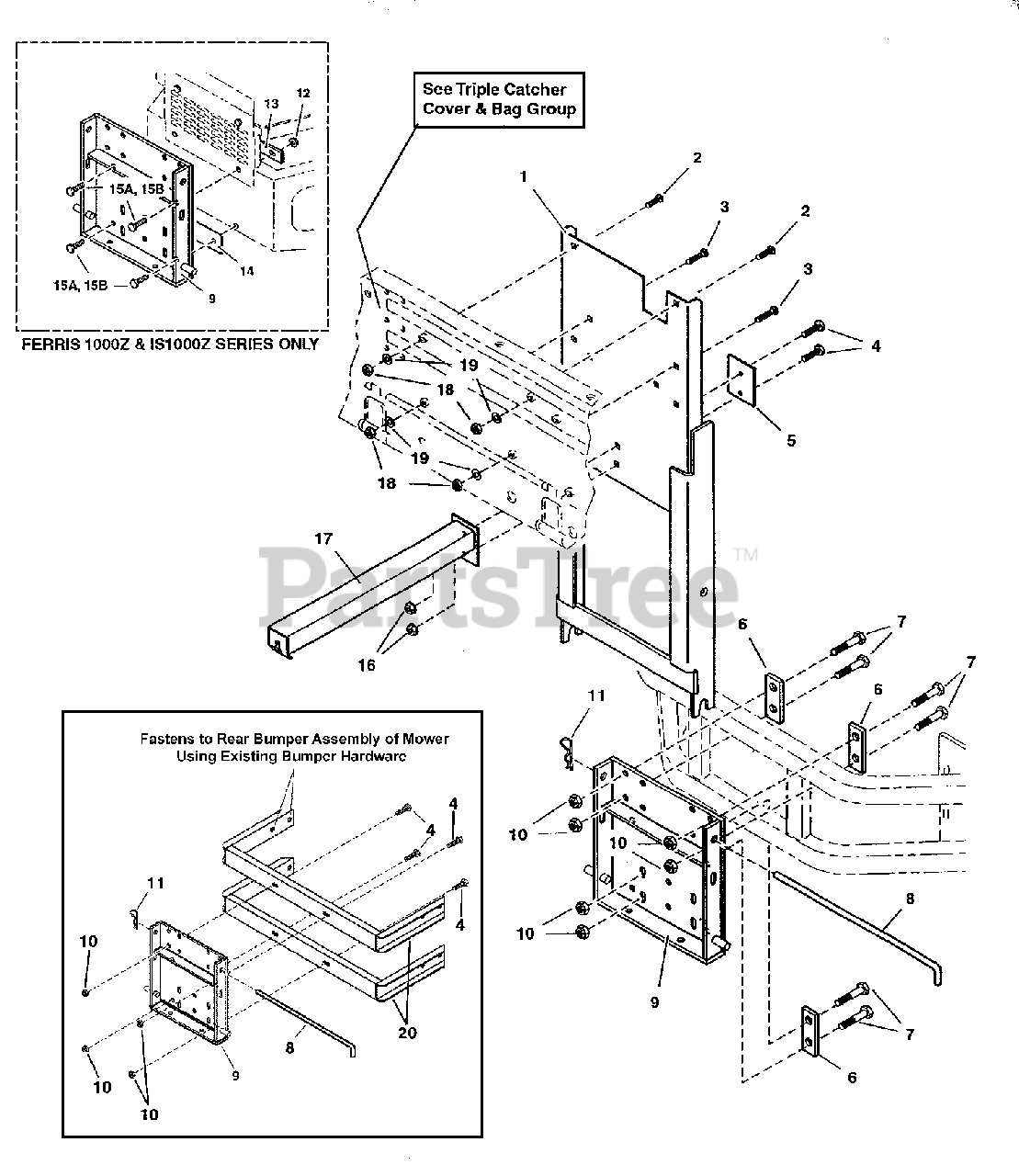

3 BAG CATCHER MOUNT GROUP Parts Diagram

  • Title

1

Snapper 3027509

WELDMENT, Catcher Support

$

$

Currently unavailable

2

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7091928

BOLT, 5/16-18 x 1-1/4" Square Neck Carriage, GR5
(Superseded to 703446)

Note: Was 90978

$4.49

$

In Stock, Qty 5

0

4

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

5

Snapper 3046829

PLATE, Reinforcement

$

$

Not available

6

Snapper 3046992

* BAR CLAMP
(Superseded to 3046992YP)

$7.99

$

Usually ships in 2-12 days

0

7

Snapper 7091501

* SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR5
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 1717085

ROD, Hitch
(Superseded to 1717085SM)

$50.99

$

In Stock, only 2 left!

0

9

Snapper 1723436

WELDMENT, Bumper Mount Plate
(Superseded to 1732625ASM)

$131.99

$

Usually ships in 2-12 days

0

10

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 1960033

* HAIRPIN, Clip
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7091619

* NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 2847506

* REINFORCEMENT, Bumper
(Superseded to 3047506)

$

$

Not available

14

Snapper 2847507

* SHIM

$

$

Currently unavailable

15A

Snapper 7091328

* SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

15B

Snapper 7091305

* SCREW, 3/8-16 x 2" Hex Head Cap, GR5
(Superseded to 7091305SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 3046831

ARM, Cover Latch (weldment)

$

$

Currently unavailable

18

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 3027510

STANDOFF, Bumper Mount (weldment)
(Superseded to 7050551YP)

$205.99

$

Usually ships in 2-12 days

0

21

Snapper 3039122

DEFLECTOR, Exhaust (not shown)
(Superseded to 3039122YP)

Note: fits onto existing muffler discharge port on engine

$112.99

$

Usually ships in 2-12 days

0

22

Snapper 3039123

MUFFLER CLAMP, 1-5/8" (not shown)
(Superseded to 3039123YP)

Note: secures muffler deflector onto muffler discharge port

$5.49

$

Usually ships in 2-12 days

0
