7063313 - Snapper 52" Z Vac Triple Grass Catcher 3 BAG CATCHER GROUP Parts Diagram

52" Z Vac Triple Grass Catcher

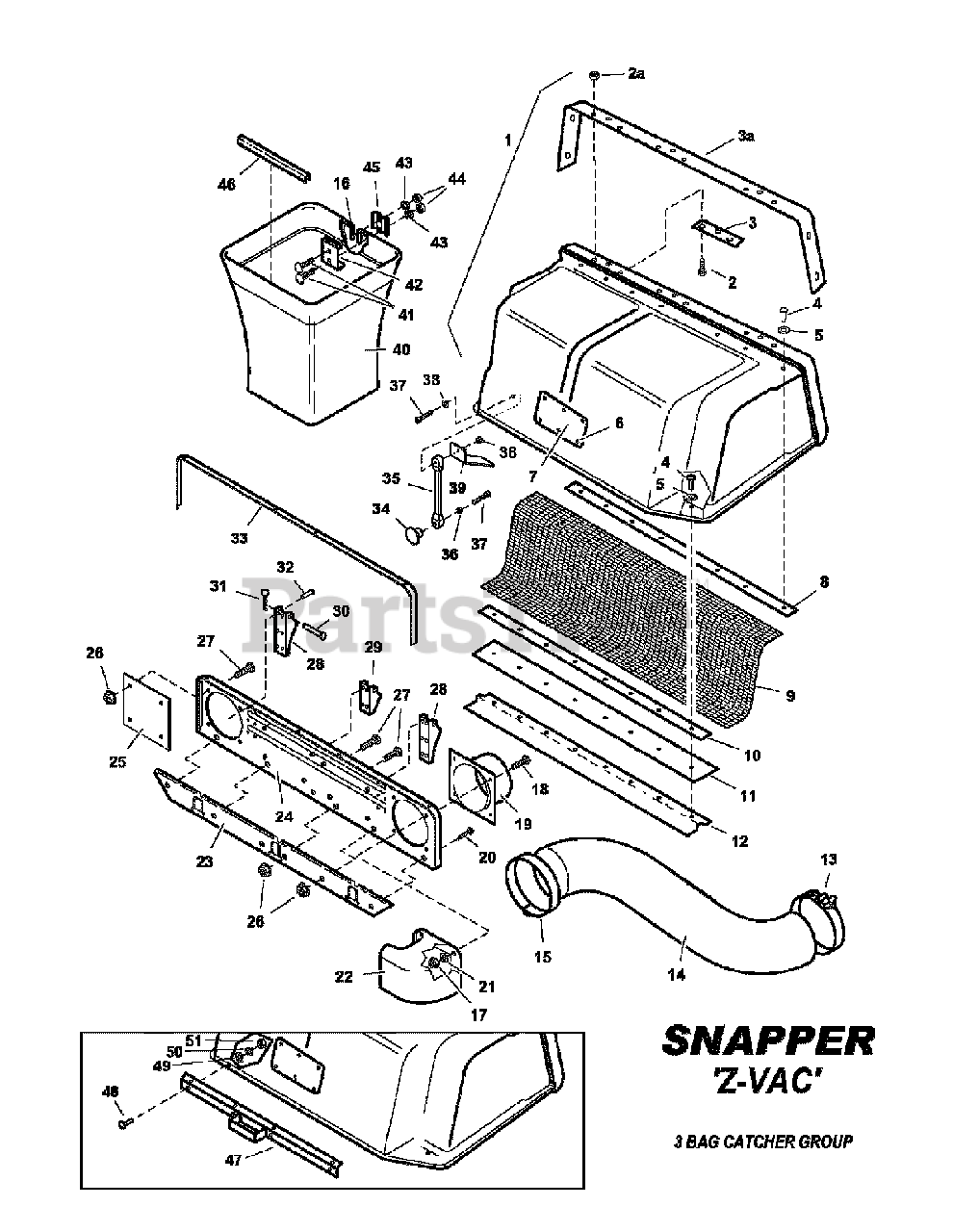

3 BAG CATCHER GROUP Parts Diagram

  • Title

1

Snapper 3046862

ASSEMBLY, Cover & Screen
(Superseded to 3046862YP)

Note: includes Cover (1717026) & Ref. No. 2 thru 12

$740.99

$

Usually ships in 2-12 days

0

2

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR5
(Superseded to 703925)

Note: secures hinges & hinge stiffener to top of cover

$4.49

$

In Stock, Qty 7

0

2

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR5
(Superseded to 001X38MA)

Note: Was 79405 (secures hinge stiffener to sides of cover)

$4.49

$

In Stock, Qty 10

0

2A

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

3

Snapper 1717067

WELDMENT, Hinge
(Superseded to 1717067ASM)

$30.99

$

Usually ships in 2-12 days

0

3A

Snapper 3027475

STIFFENER, Hinge
(Superseded to 3027475YP)

$88.99

$

Usually ships in 2-12 days

0

4

Snapper 7076958

POP RIVET, 3/16 x .565,Aluminum

$

$

Currently unavailable

5

Snapper 1910531

* WASHER, Rivet .188 (.20 I.D. x .500 O.D.)
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 1667248

CLIP, Canoe
(Superseded to 1667248SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 1704405

DECAL, Safety, Grass Bag
(Superseded to 1732820SM)

$77.99

$

In Stock, only 1 left!

0

8

Snapper 1716970

CLAMP
(Superseded to 1716970FS)

$39.99

$

Usually ships in 2-12 days

0

9

Snapper 1717041

SCREEN, Catcher
(Superseded to 1717041SM)

$43.99

$

Usually ships in 2-12 days

0

10

Snapper 1717524

CLAMP, Seal
(Superseded to 1717524FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 1716968

SEAL, Catcher Top
(Superseded to 1716968SM)

$32.99

$

Usually ships in 2-12 days

0

12

Snapper 1716972

ANGLE, Screen
(Superseded to 1716972FS)

$41.99

$

Usually ships in 2-12 days

0

13

Snapper 3022876

HOSE, CLAMP Lower, Fast Vac
(Superseded to 3022876YP)

$75.99

$

Usually ships in 2-12 days

0

14

Snapper 3022833

HOSE, Snapper Fast Vac
(Superseded to 3022833SM)

$318.99

$

In Stock, only 1 left!

0

15

Snapper 3022875

HOSE CLAMP, Upper
(Superseded to 3022875YP)

$42.99

$

Usually ships in 2-12 days

0

16

Snapper 1703855A

HOOP, Grass Bag
(Superseded to 1703855ASM)

$139.99

$

Usually ships in 2-12 days

0

17

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR5
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 3046801

ADAPTER, Hose (weldment)
(Superseded to 3046801SM)

$76.99

$

Usually ships in 2-12 days

0

20

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

$3.99

$

In Stock, only 3 left!

0

21

Snapper 7091130

* WASHER, 5/16" Flat
(Superseded to 7091130SM)

$3.99

$

In Stock, only 3 left!

0

22

Snapper 1717039

DEFLECTOR, Grass Bag
(Superseded to 1717039SM)

$96.99

$

Usually ships in 2-12 days

0

23

Snapper 1716973A

ASSEMBLY, Channel
(Superseded to 1716973ASM)

$370.99

$

Usually ships in 2-12 days

0

24

Snapper 1716966A

WELDMENT, Backplate
(Superseded to 1716966ASM)

$225.99

$

Usually ships in 2-12 days

0

25

Snapper 1717037

COVER, Backplate
(Superseded to 1725969SM)

$29.99

$

Usually ships in 2-12 days

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

28

Snapper 1720875A

HINGE
(Superseded to 1720875ASM)

$16.99

$

Usually ships in 2-12 days

0

29

Snapper 1720945A

HINGE
(Superseded to 1720945ASM)

$12.99

$

Usually ships in 2-12 days

0

30

Snapper 1672344

PIN, 3/8 x 2-3/4" Clevis
(Superseded to 1672344SM)

$6.49

$

In Stock, only 2 left!

0

31

Snapper 7091809

PIN, 1/8 x 1-1/4" Cotter
(Superseded to 7091809YP)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 3022834

* RIVET

$

$

Currently unavailable

33

Snapper 1717082

SEAL, Catcher Top
(Superseded to 1717082SM)

$70.99

$

Usually ships in 2-12 days

0

34

Snapper 3022838

KNOB

$

$

Currently unavailable

35

Snapper 3021670

STRAP, Rubber

$

$

Currently unavailable

36

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7090922

SCREW, #10-32 x 1-1/2 Hex Washer Head Machine
(Superseded to 7090922YP)

Note: w/nyloc patch

$3.99

$

Usually ships in 2-12 days

0

38

Snapper 7091702

WASHER, .19 x .38 x .06 Flat
(Superseded to 7091702YP)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper 3046832

COVER SUPPORT
(Superseded to 3046832YP)

$14.99

$

Usually ships in 2-12 days

0

40

Snapper 7030847

GRASS BAG
(Superseded to 1703764SM)

$96.99

$

In Stock, Qty 12

0

41

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

42

Snapper 1703807A

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 1 left!

0

43

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

44

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

45

Snapper 1672023A

CLAMP, Grass Bag
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

46

Snapper 1675707

TUBE CLIP, Grass Bag
(Superseded to 1675707SM)

$6.49

$

In Stock, only 3 left!

0

47

Snapper 3027476

COVER, Handle (weldment)

$

$

Not available

48

Snapper 7092117

SCREW, #8-32 x 1/2" Cross Recess Pan Head
(Superseded to 7092117SM)

$3.49

$

Usually ships in 2-12 days

0

49

Snapper 3031985

* WASHER, #8 Flat

$

$

Not available

50

Snapper 7092116

WASHER, #8 External Tooth Lock

$

$

Not available

51

Snapper 7091018

* NUT, #8-32 Hex Machine, GR 2B
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0
