7063305 - Snapper 48" Baffle Kit ACCESSORY, 48" Baffle Kit Parts Diagram

48" Baffle Kit

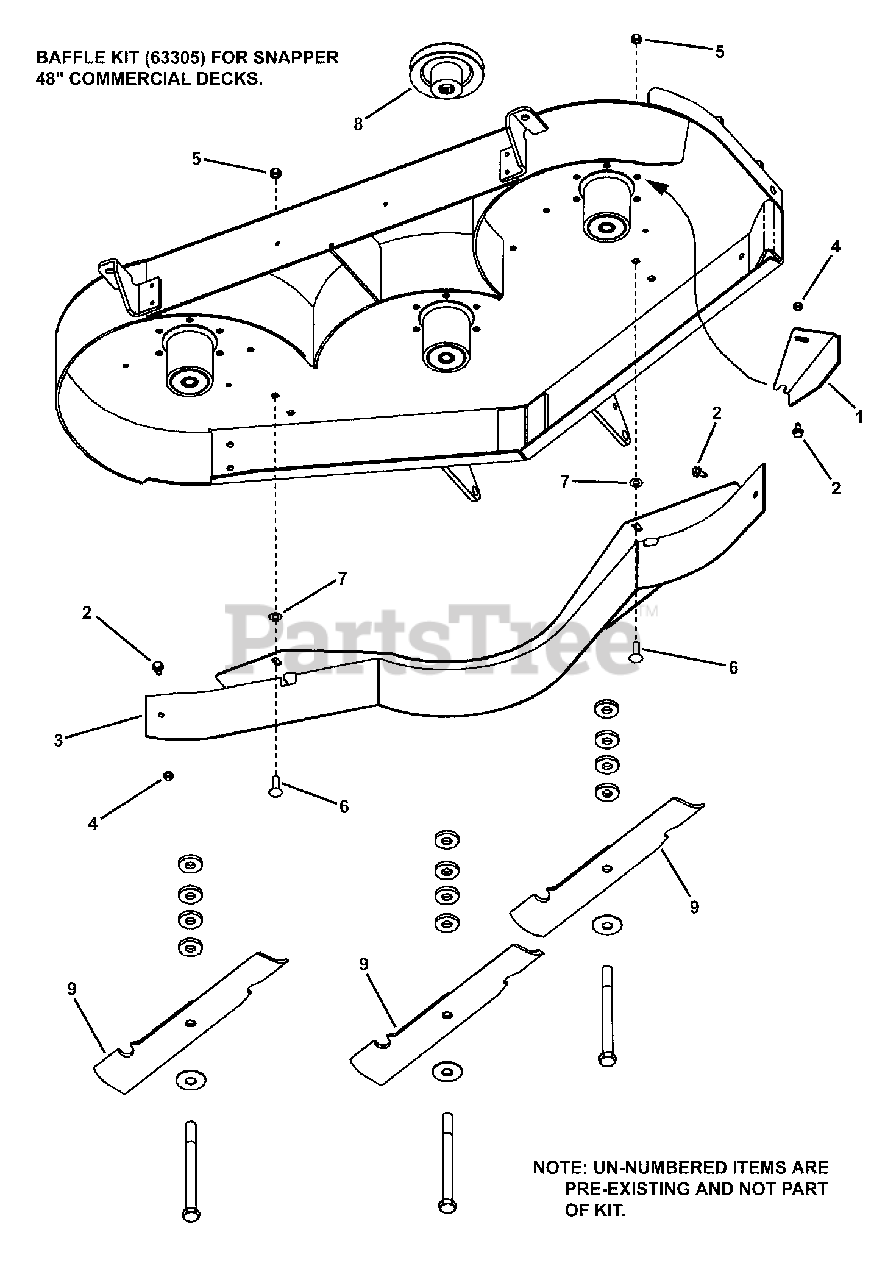

ACCESSORY, 48" Baffle Kit Parts Diagram

  • Title

--

Snapper 7063305

KIT, 48" Baffle
(Superseded to 7063305YP)

$267.99

$

Usually ships in 2-12 days

0

1

Snapper 7075358

BAFFLE, Discharge, 48" Deck
(Superseded to 7075358YP)

$31.99

$

Usually ships in 2-12 days

0

2

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

3

Snapper 7058566

WELDMENT, Baffle, 48" Deck

$

$

Currently unavailable

4

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR5 or B
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

5

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

6

Snapper 7091790

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage, GR5
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

7

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7075362

PULLEY, Driven 48" Deck

Note: for use on NZM19480KWV (Series 0) model only

$

$

Not available

9

Snapper 7075771

BLADE, 16.5"
(Superseded to 7075771BZYP)

$27.99

$

In Stock, Qty 17

0

--

Snapper 7075762

SHEET, Instruction, 48"/52" Baffle Kit (Not shown)

Note: not shown

$

$

Currently unavailable
