7063281 - Snapper 28" & 33" Rider Twin Bag Grass Catcher Chute Group Parts Diagram

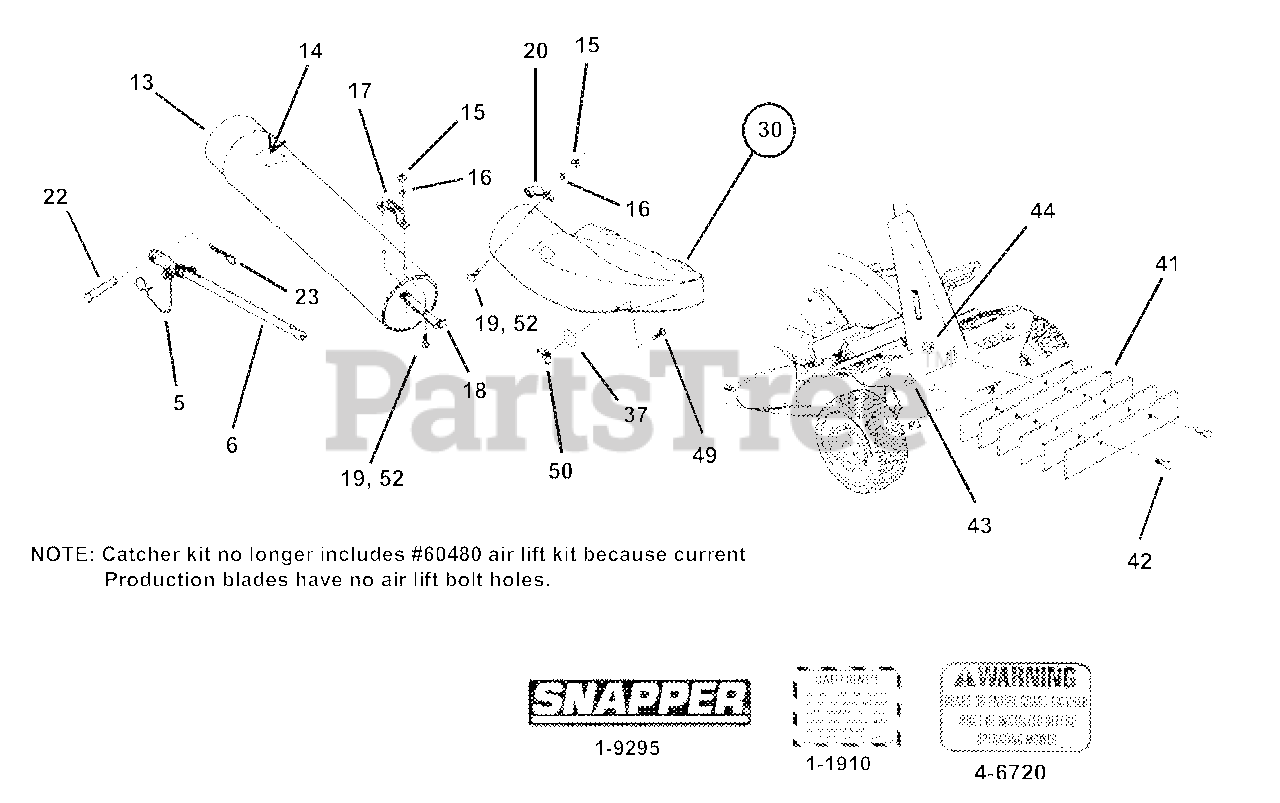

28" & 33" Rider Twin Bag Grass Catcher

Chute Group Parts Diagram

  • Title

5

Snapper 7051407

ASSEMBLY, Spring & Hook
(Superseded to 7051407YP)

$37.99

$

In Stock, only 1 left!

0

6

Snapper 7036073

BRACE, Rear (24-1/2" Long)
(Superseded to 7036073YP)

$48.99

$

Usually ships in 2-12 days

0

--

Snapper 7046573

BRACE, Rear (24-13/16" Long)

$

$

Not available

13

Snapper 7014517

TUBE, Grass (36" long)
(Superseded to 7014517YP)

$125.99

$

Usually ships in 2-12 days

0

14

Snapper 7011910

DECAL, Caution
(Superseded to 7011910YP)

$11.99

$

Usually ships in 2-12 days

0

15

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 60589

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314 (Included in Hardware Bag 60589)

$4.49

$

In Stock, Qty 6

0

17

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

Note: Included in Hardware Bag 60589

$10.99

$

Usually ships in 2-12 days

0

18

Snapper 7031952

BASE, Tube Handle
(Superseded to 7031952YP)

Note: Included in Hardware Bag 60589

$7.49

$

In Stock, only 1 left!

0

19

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, only 1 left!

0

20

Snapper 7031951

LATCH, Tube Chute
(Superseded to 7031951YP)

Note: Included in Hardware Bag 60589

$5.99

$

In Stock, only 1 left!

0

22

Snapper 7029841

PIN, 5/16 x 11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, only 3 left!

0

23

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7057809

ADAPTER
(Superseded to 7057809YP)

Note: (Includes Decal 4-6720)

$277.99

$

Usually ships in 2-12 days

0

37

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

41

Snapper 7072416

WEIGHT, Front Frame
(Superseded to 7072416YP)

$28.99

$

Usually ships in 2-12 days

0

42

Snapper 7091976

SCREW, 5/8-11 x 1-3/4" Cap
(Superseded to 7091976YP)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 7090333

WASHER, 5/8" Split Lock
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

44

Snapper 7090537

NUT, 5/8-11 Hex
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

49

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 7

0

50

Snapper 7091537

WING NUT, 5/16-18 Lock
(Superseded to 7091537YP)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, only 3 left!

0

52

Snapper 7091614

SCREW, 1/4-20 x 3/4"
(Superseded to 7091614YP)

$3.99

$

Usually ships in 2-12 days

0

1-9295

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

$13.99

$

In Stock, only 4 left!

0

1-1910

Snapper 7011910

DECAL, GRASS CATCHER
(Superseded to 7011910YP)

$11.99

$

Usually ships in 2-12 days

0

4-6720

Snapper 7046720

DECAL, CHUTE DEFLECTOR
(Superseded to 7046720SM)

$7.49

$

In Stock, only 1 left!

0
