7063281 - Snapper 28" & 33" Rider Twin Bag Grass Catcher Catcher Group Parts Diagram

28" & 33" Rider Twin Bag Grass Catcher

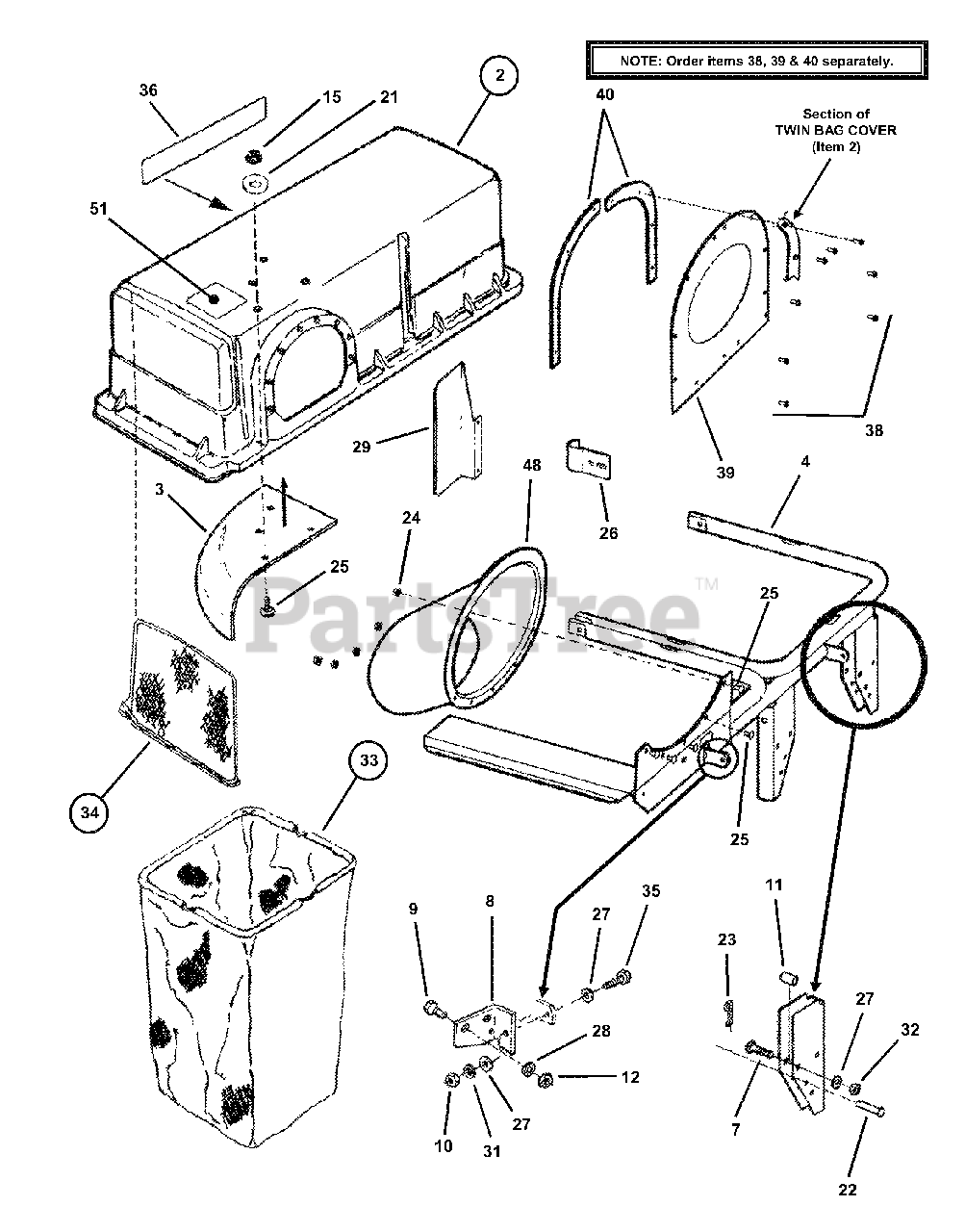

Catcher Group Parts Diagram

  • Title

--

Snapper 7063281

KIT, Grass Catcher

Note: Was 60946

$

$

Currently unavailable

2

Snapper 7059626

COVER, Twin Bag
(Superseded to 7059626YP)

$512.99

$

Usually ships in 2-12 days

0

3

Snapper 7019725

SECTOR
(Superseded to 7019725YP)

$87.99

$

Usually ships in 2-12 days

0

4

Snapper 7059951

WELDMENT, Frame
(Superseded to 7059951YP)

$541.99

$

Usually ships in 2-12 days

0

7

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Carr.
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

8

Snapper 7038087

HINGE, Top
(Superseded to 7038087YP)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 7091611

SCREW, 1/4-28 x 3/4" Cap
(Superseded to 7091611YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7091606

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7023797

PAD, Bumper Mount
(Superseded to 7023797YP)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Was 91605

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 60589

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7029841

PIN, 5/16 x 11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, only 3 left!

0

23

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7091545

NUT, 1/4-20 Flange Lock
(Superseded to 703916)

Note: Included in Hardware Bag 60589

$4.99

$

In Stock, only 2 left!

0

25

Snapper 7091604

BOLT, 1/4-20 x 1/2" Carriage
(Superseded to 703978)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7031954

SUPPORT, Bumper
(Superseded to 7031954YP)

$13.99

$

Usually ships in 2-12 days

0

27

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

28

Snapper 7090053

WASHER, 1/4 Int.Tooth Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 7

0

29

Snapper 7071677

GUARD, Muffler
(Superseded to 7071677YP)

$79.99

$

In Stock, only 1 left!

0

31

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

33

Snapper 7051930

ASS'Y,Bag

Note: (Incl. Indented Items)

$

$

Not available

--

Snapper 7019250

BAG, Grass Catcher
(Superseded to 7019250YP)

$81.99

$

In Stock, Qty 9

0

--

Snapper 7019965

ROD, Bag Support
(Superseded to 7019965YP)

$87.99

$

Usually ships in 2-12 days

0

--

Snapper 7014456

CONNECTOR
(Superseded to 7014456YP)

$5.99

$

Usually ships in 2-12 days

0

34

Snapper 7057652

ASS'Y, Screen (Indented Items)

$

$

Currently unavailable

--

Snapper 7019731

SCREEN
(Superseded to 7019731YP)

$32.99

$

Usually ships in 2-12 days

0

--

Snapper 7019732

FRAME, Screen
(Superseded to 7019732YP)

$25.99

$

Usually ships in 2-12 days

0

35

Snapper 7090238

SCREW, 5/16-24 x 1" Cap
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

36

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

$13.99

$

In Stock, only 4 left!

0

38

Snapper 7090896

SCREW, #10-24 x 1/2" S. Tap
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

39

Snapper 7019794

SEAL
(Superseded to 7019794YP)

$

$

Not available

40

Snapper 7038276

CLAMP

$

$

Not available

48

Snapper 7019966

INLET, Twin Bagger
(Superseded to 7019966YP)

$198.99

$

Usually ships in 2-12 days

0

51

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0
