7063157 - Snapper 33" Yard Cruiser Single Grass Catcher Weights_Decal Group Parts Diagram

33" Yard Cruiser Single Grass Catcher

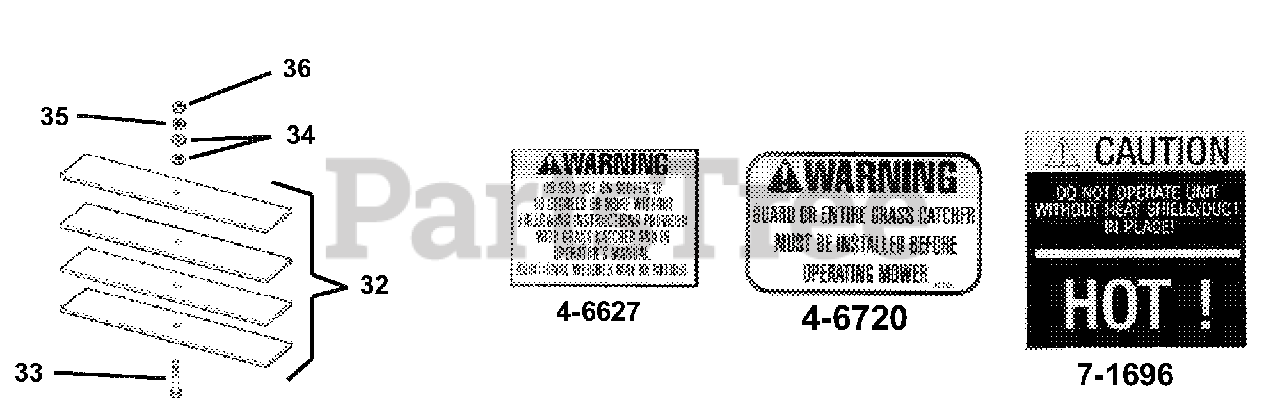

Weights_Decal Group Parts Diagram

  • Title
32

Snapper 7058909

BALLAST
(Superseded to 7058909YP)

$28.99

$

Usually ships in 2-12 days

0

33

Snapper 7091305

SCREW, 3/8-16 Hex Cap
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

36

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

46627

Snapper 7046627

DECAL, GRASS BAG WARNING
(Superseded to 7046627YP)

$7.99

$

In Stock, only 2 left!

0

46720

Snapper 7046720

DECAL, CHUTE DEFLECTOR
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

71696

Snapper 7071696

DECAL, HEAT SHIELD
(Superseded to 7071696YP)

$5.99

$

Usually ships in 2-12 days

0
