7063120 - Snapper 38" Rear Engine Rider Thatcherizer Thatcherizer Parts Diagram

38" Rear Engine Rider Thatcherizer

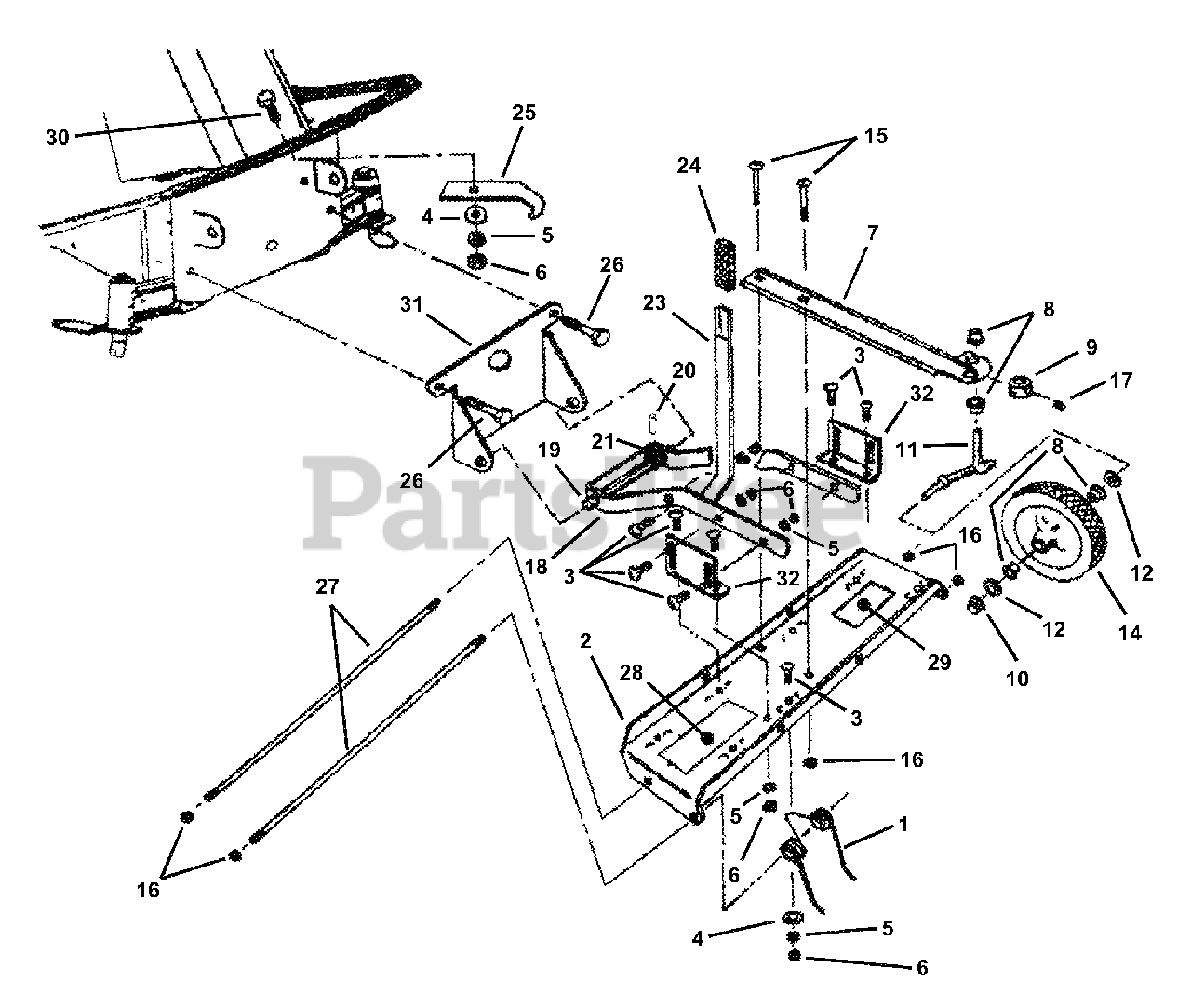

Thatcherizer Parts Diagram

  • Title
--

Snapper 7063120

KIT, Thatcherizer

Note: (Incl. items 1 thru 32)

$

$

Currently unavailable

1

Snapper 7018491

TINE
(Superseded to 7018491YP)

$17.99

$

In Stock, only 1 left!

0

2

Snapper 19947

TRAY, Tine (30.5")

$

$

Currently unavailable

3

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 8

0

4

Snapper 7014098

WASHER, 5/16" I.D. Flat
(Superseded to 7014098SM)

$16.99

$

In Stock, only 2 left!

0

5

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7018700

SUPPORT, Wheel

$

$

Not available

8

Snapper 7014342

BEARING, Nylon
(Superseded to 7014342YP)

$6.49

$

In Stock, only 1 left!

0

9

Snapper 7014100

LOCKING COLLAR
(Superseded to 7014100YP)

$18.99

$

In Stock, only 1 left!

0

10

Snapper 7014101

PUSH NUT, 1/2"
(Superseded to 7014101YP)

$4.49

$

In Stock, only 2 left!

0

11

Snapper 7018493

AXLE
(Superseded to 7018493YP)

$43.99

$

Usually ships in 2-12 days

0

12

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7018189

GAUGE WHEEL

$

$

Not available

15

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Square Neck Carriage
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7014103

SCREW, 5/16-18 x 1/4" Set
(Superseded to 7014103YP)

$3.49

$

In Stock, only 1 left!

0

18

Snapper 7072805

FRAME, Main

$

$

Currently unavailable

19

Snapper 7072803

ROD, Mounting
(Superseded to 7072803YP)

$68.99

$

Usually ships in 2-12 days

0

20

Snapper 7014106

PIN, 1/4 x 1-3/4" Roll
(Superseded to 7014106YP)

$4.49

$

In Stock, only 2 left!

0

21

Snapper 7072804

SPRING
(Superseded to 7072804YP)

$5.99

$

Usually ships in 2-12 days

0

23

Snapper 7018494

HANDLE, Lift
(Superseded to 7018494BMYP)

$59.99

$

Usually ships in 2-12 days

0

24

Snapper 7014109

GRIP, Vinyl
(Superseded to 7014109YP)

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 7072744

BRACKET, Transport Lock
(Superseded to 7072744YP)

$72.99

$

Usually ships in 2-12 days

0

26

Snapper 7090590

BOLT, 3/8-16 x 3" Hex
(Superseded to 7090590YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7014110

ROD, Safety
(Superseded to 7014110YP)

$5.49

$

Usually ships in 2-12 days

0

28

Snapper 7014062

DECAL, Thatcherizer

$

$

Not available

29

Snapper 7014119

DECAL, Instructions

$

$

Not available

30

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

31

Snapper 7072745

BRACKET, Attaching
(Superseded to 7072745YP)

$319.99

$

Usually ships in 2-12 days

0

32

Snapper 7014778

BRACKET, Tray
(Superseded to 7014778YP)

$11.99

$

Usually ships in 2-12 days

0
