7063100 - Snapper Bucket Grass Catcher Kit Catcher Frame Assembly Parts Diagram

Bucket Grass Catcher Kit

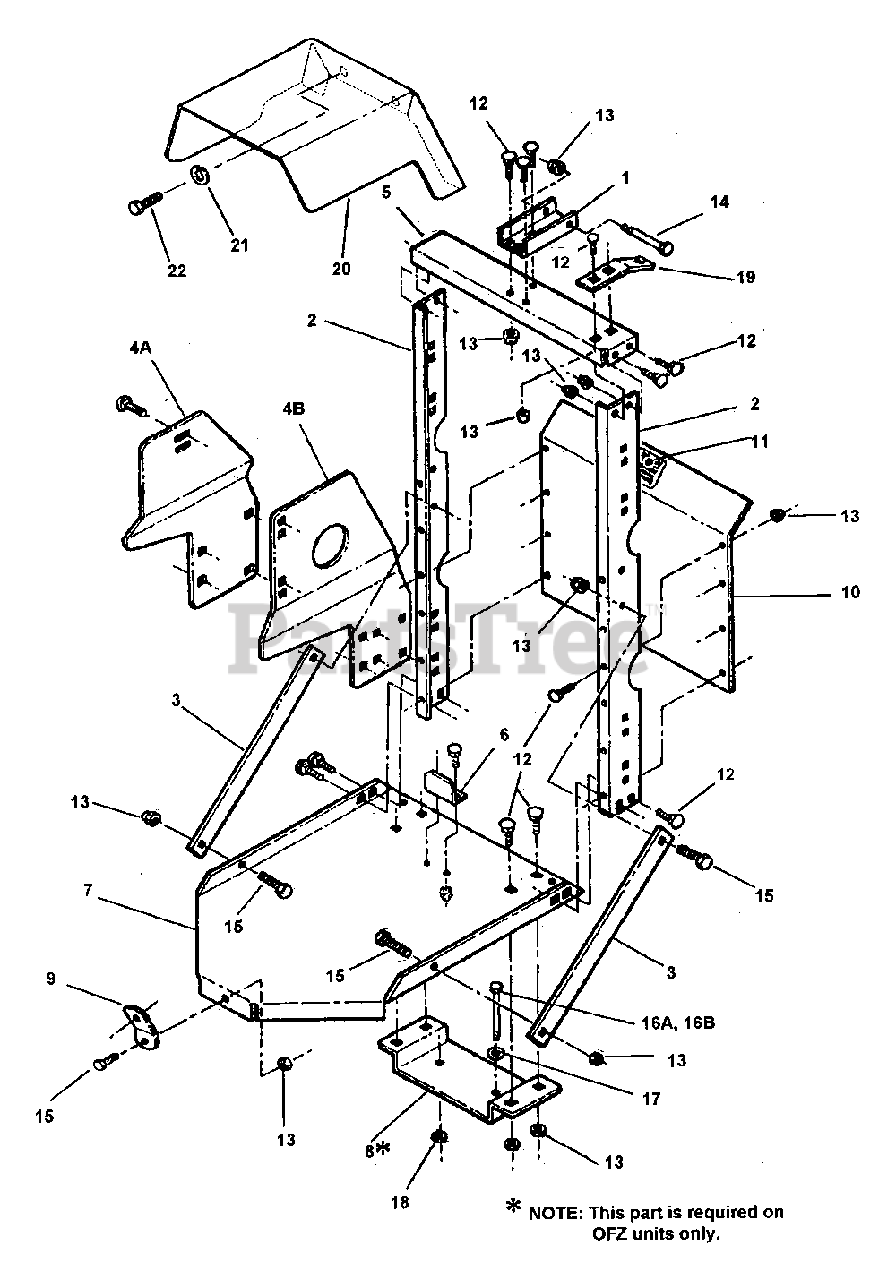

Catcher Frame Assembly Parts Diagram

  • Title

1

Snapper 7041994

BRACKET, Lower Hinge
(Superseded to 7041994YP)

$27.99

$

Usually ships in 2-12 days

0

2

Snapper 7041981

ANGLE, Upright

$

$

Not available

3

Snapper 7046187

STRAP, Plate Support
(Superseded to 7046187YP)

$13.99

$

Usually ships in 2-12 days

0

4A

Snapper 7046192

BRACE, Left Hand Grass Catcher (MMZ)
(Superseded to 7046192YP)

$61.99

$

Usually ships in 2-12 days

0

4B

Snapper 7046389

BRACE, Left Hand Grass Catcher (OFZ)
(Superseded to 7046389YP)

$133.99

$

Usually ships in 2-12 days

0

5

Snapper 7041988

CHANNEL, Cross Brace
(Superseded to 7041988YP)

$47.99

$

Usually ships in 2-12 days

0

6

Snapper 7046189

BRACKET, Stop

$

$

Currently unavailable

7

Snapper 7041999

Plate, Cannister
(Superseded to 7041999YP)

$205.99

$

Usually ships in 2-12 days

0

8

UNKNOWN

$

$

Not available

?8A

Snapper 7046190

BRACKET, Standoff, Grass Catcher (Kohler OFZ Models Only)
(Superseded to 7046190YP)

$63.99

$

Usually ships in 2-12 days

0

?8B

Snapper 7072389

BRACKET, Standoff, Grass Catcher (Kubota OFZ Models Only)

$

$

Currently unavailable

9

Snapper 7046184

PLATE, Retainer
(Superseded to 7046184YP)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 7057778

ASSEMBLY, Heat Shield & Decal

Note: (Includes item 11)

$

$

Currently unavailable

11

Snapper 7046403

DECAL, Heat Shield
(Superseded to 7046403YP)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

13

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7090998

BOLT, 5/16-18 x 4-1/2" Hex Head, Grade 2
(Superseded to 7090998YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

16A

Snapper 7091982

SCREW, 3/8-16 x 5-1/4" Hex Head Cap, Gr. 5 (Kohler OFZ Models)
(Superseded to 7091982YP)

$5.49

$

In Stock, only 1 left!

0

16B

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Gr. 5 (Kubota OFZ Models)
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

17

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

18

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7072040

BRACKET, Chute Hanger
(Superseded to 7072040YP)

$18.99

$

Usually ships in 2-12 days

0

20

Snapper 7045293

SHIELD, PTO Clutch (Kubota Models Only)
(Superseded to 7045293YP)

$70.99

$

Usually ships in 2-12 days

0

21

Snapper 7091315

WASHER, .32 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 5025237X25

BOLT, M8-1.25 X 25MM GD8.8
(Superseded to 5025237X25YP)

Note: Was 91933

$3.99

$

Usually ships in 2-12 days

0
