7063100 - Snapper Bucket Grass Catcher Kit Catcher Assembly Parts Diagram

Bucket Grass Catcher Kit

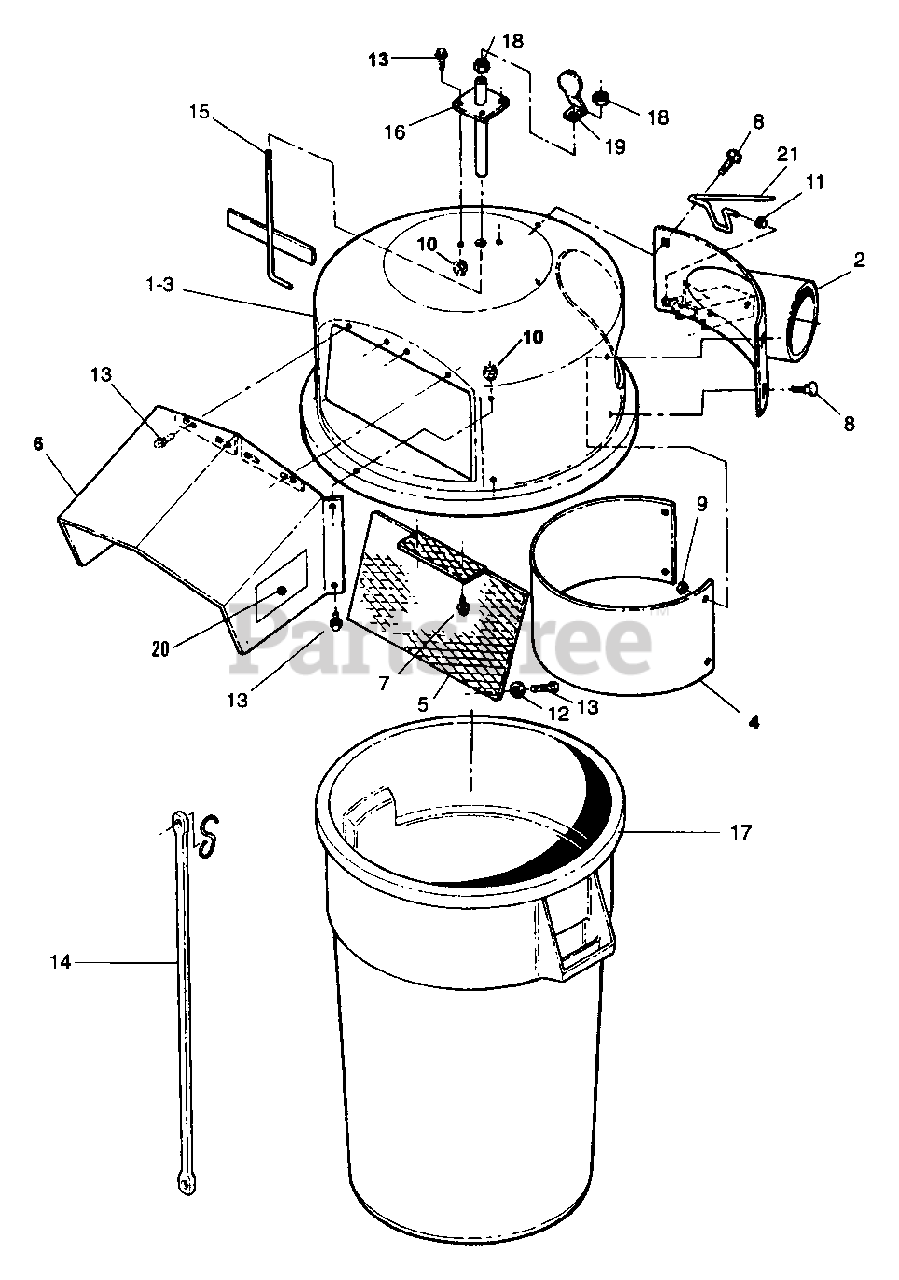

Catcher Assembly Parts Diagram

  • Title

1

Snapper 7057710

ASSEMBLY, Catcher Top

Note: (Incl. Items 2 thru 13)

$

$

Currently unavailable

2

Snapper 7046197

WELDMENT, Container Inlet
(Superseded to 7046197YP)

$187.99

$

Usually ships in 2-12 days

0

3

Snapper 7046313

TOP, Container
(Superseded to 7046313YP)

$501.99

$

Usually ships in 2-12 days

0

4

Snapper 7046201

DEFLECTOR, Grass
(Superseded to 7046201YP)

$32.99

$

Usually ships in 2-12 days

0

5

Snapper 7046208

SCREEN, Outlet
(Superseded to 7046208YP)

$52.99

$

Usually ships in 2-12 days

0

6

Snapper 7057785

ASSEMBLY, Discharge Chute

Note: (Includes item 20)

$

$

Currently unavailable

7

Snapper 7091081

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 12

0

8

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 18

0

9

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, only 4 left!

0

11

Snapper 7091892

NUT, 1/4" Push
(Superseded to 7091892YP)

Note: Was 90919

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091098

WASHER, 1/4" Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703925)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7046268

STRAP, Catcher Hold Down (With "S" Hooks)
(Superseded to 7046268YP)

$7.99

$

Usually ships in 2-12 days

0

15

Snapper 7072032

WELDMENT, Rod - Paddle
(Superseded to 7072032YP)

$32.99

$

Usually ships in 2-12 days

0

16

Snapper 7046438

WELDMENT, Tube - Plate
(Superseded to 7046438YP)

$48.99

$

Usually ships in 2-12 days

0

17

Snapper 7046312

CONTAINER, Catcher

$

$

Currently unavailable

18

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 15

0

19

Snapper 7046370

HOLDER, Decal
(Superseded to 7046370YP)

$11.99

$

Usually ships in 2-12 days

0

20

Snapper 7046360

DECAL, Warning
(Superseded to 7046360YP)

$10.99

$

Usually ships in 2-12 days

0

21

Snapper 7046209

ROD, Prop
(Superseded to 7046209YP)

$16.99

$

Usually ships in 2-12 days

0
