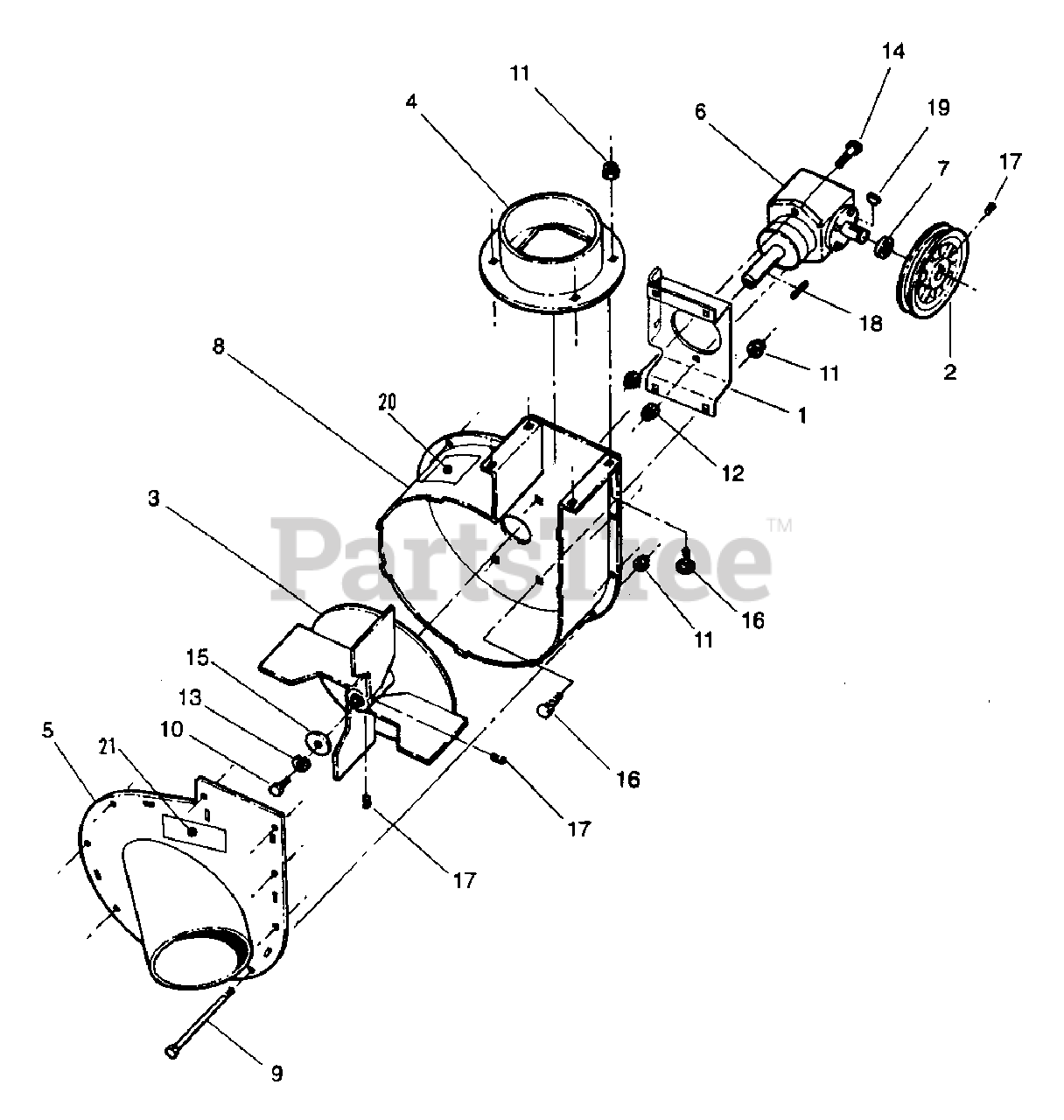

7063100 - Snapper Bucket Grass Catcher Kit Blower Assembly Parts Diagram

Bucket Grass Catcher Kit

Blower Assembly Parts Diagram

  • Title

1

Snapper 7041990

MOUNT, Grass Catcher Gearbox, MMZ/OFZ
(Superseded to 7041990YP)

$49.99

$

Usually ships in 2-12 days

0

2

Snapper 7042867

PULLEY, 5.45 O.D. Cast
(Superseded to 7042867YP)

$112.99

$

Usually ships in 2-12 days

0

3

Snapper 7044893

WELDMENT, Blower Impeller

$

$

Not available

4

Snapper 7044924

WELDMENT, Chute Adapter

$

$

Currently unavailable

5

Snapper 7057733

WELDMENT, Impeller Housing Front

Note: (Includes Item 21)

$

$

Currently unavailable

6

Snapper 7046215

GEARBOX, Right Angle
(Superseded to 7046215YP)

$372.99

$

Usually ships in 2-12 days

0

7

Snapper 7046393

SPACER, Gearbox, Grass Catcher Pulley
(Superseded to 7046393YP)

$25.99

$

Usually ships in 2-12 days

0

8

Snapper 7057734

WELDMENT, Blower Housing

Note: (Includes Item 20)

$

$

Currently unavailable

9

Snapper 7079944

SCREW, 3/8-16 x 5-1/2" Hex Head Cap, Grade 5
(Superseded to 7079944YP)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 7090160

SCREW, 3/8-24 x 1" Hex Head Cap, Grade 5
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

11

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

14

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

15

Snapper 7091331

WASHER, 13/32" x 1-1/2" Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

16

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

17

Snapper 7091802

SCREW, 5/16 x 5/8" Hex Socket Head Set
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

18

Snapper 7091803

KEY, 3/16 x 1-1/2" Square
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

19

Snapper 7010008

KEY, 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

Note: Was 91823

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7024773

DECAL, Danger Hand
(Superseded to 7024773YP)

$13.99

$

Usually ships in 2-12 days

0

21

Snapper 7022522

DECAL, Caution
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0
