7063080 - Snapper Stand/Sit Sulky Kit Stand/Sit Sulky Parts Diagram

Stand/Sit Sulky Kit

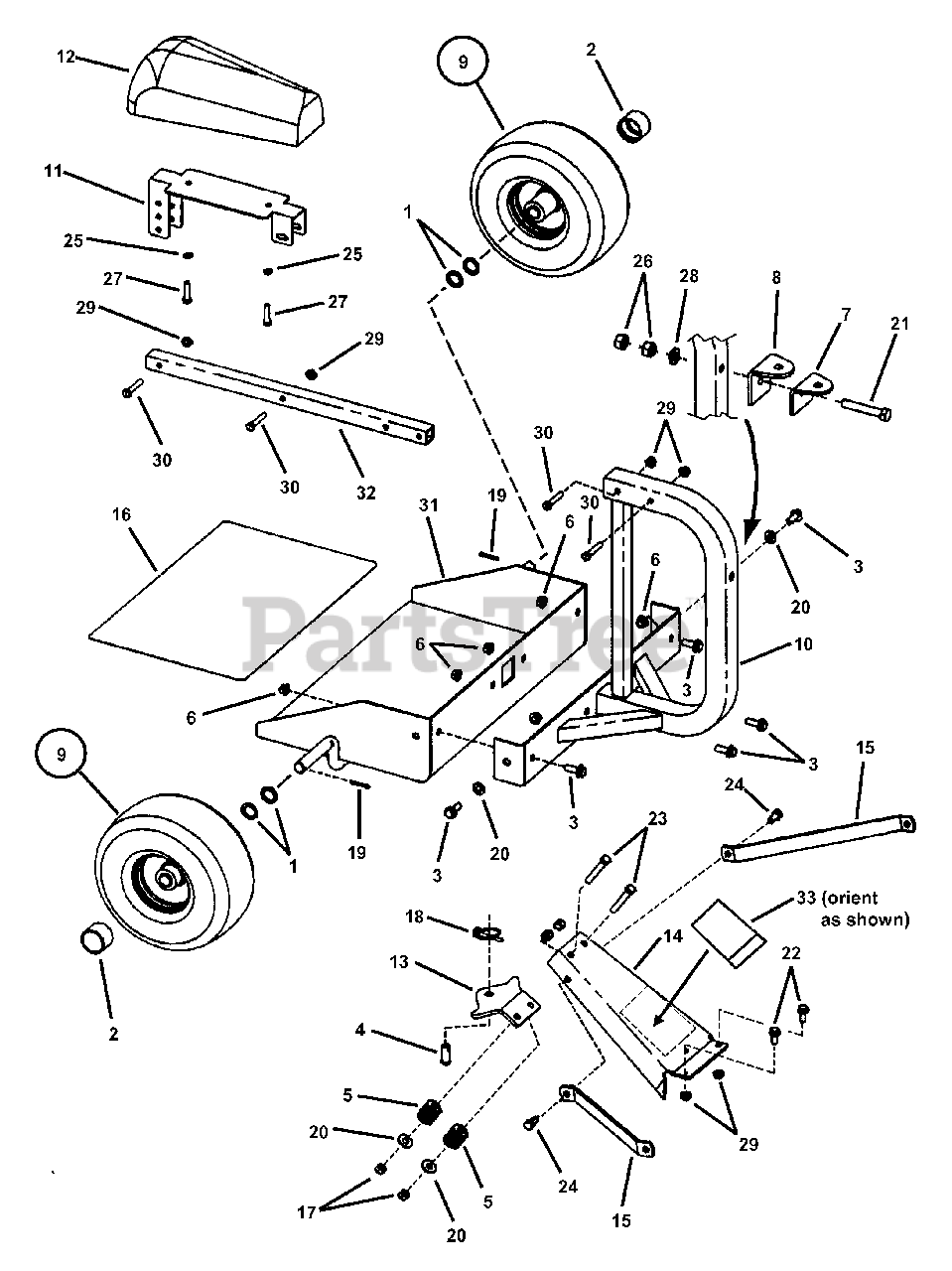

Stand/Sit Sulky Parts Diagram

  • Title

Snapper 7063080

KIT, Stand/Sit Sulky
(Superseded to 7063080YP)

Note: (Includes items 1 thru 36)

$800.99

$

Usually ships in 2-12 days

0

1

Snapper 7029617

WASHER, 3/4" Flat
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 7011022

CAP, Hub
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7091891

BOLT, 3/8-16 x 1 ", Grade 5
(Superseded to 7091891YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7024351

PIN, 1/2 x 1-3/16" Clevis
(Superseded to 7024351YP)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 7024352

SPRING (2)
(Superseded to 7024352YP)

$20.99

$

Usually ships in 2-12 days

0

6

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7033607

HITCH, Bottom
(Superseded to 7033607YP)

$52.99

$

Usually ships in 2-12 days

0

8

Snapper 7033608

HITCH, Top

$

$

Not available

9

Snapper 7052268

ASSEMBLY, Tire & Rim
(Superseded to 7052268YP)

Note: (Includes 6 items below)

$107.99

$

In Stock, Qty 7

0

Snapper 7023828

TIRE, 4.10/3.50-4
(Superseded to 7023828YP)

$59.99

$

Usually ships in 2-12 days

0

Snapper 7010821

TUBE, Tire
(Superseded to 7010821YP)

$18.99

$

In Stock, Qty 5

0

Snapper 7017146

RIM, Wheel
(Superseded to 7058943YP)

$102.99

$

In Stock, only 2 left!

0

Snapper 7011807

BALL BEARING, Flange
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 16

0

Snapper 7014669

LUBE FITTING
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

Snapper 7012234

VALVE STEM
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

10

Snapper 7072092

WELDMENT, Seat Support
(Superseded to 7072092YP)

$398.99

$

Usually ships in 2-12 days

0

11

Snapper 7072090

BRACKET, Seat
(Superseded to 7072090YP)

$136.99

$

Usually ships in 2-12 days

0

12

Snapper 7072091

SEAT
(Superseded to 7072091YP)

$168.99

$

In Stock, only 1 left!

0

13

Snapper 7072268

HITCH, Draw Bar
(Superseded to 7072268YP)

$45.99

$

Usually ships in 2-12 days

0

14

Snapper 7072269

DRAW BAR
(Superseded to 7072269YP)

$61.99

$

Usually ships in 2-12 days

0

15

Snapper 7072270

BRACE, Draw Bar
(Superseded to 7072270YP)

$29.99

$

Usually ships in 2-12 days

0

16

Snapper 7072271

PAD, Friction

$

$

Currently unavailable

17

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7077780

PIN, 7/16 HD Lynch

$

$

Not available

19

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

$4.49

$

In Stock, Qty 11

0

20

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7091821

SCREW, 1/2-13 x 3" Hex Head Cap, Grade 5
(Superseded to 7091821YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7091811

BOLT, 5/16-18 x .5/8" Hex Flange Lock, Grade 5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

23

Snapper 7091560

SCREW, 3/8-16 x 2-1/4" Hex Head Cap, Grade 5
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

25

Snapper 7091315

WASHER, 21/64" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7091316

NUT, 1/2-13 Hex Grade 5
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

27

Snapper 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

28

Snapper 7091587

WASHER, 17/32" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

29

Snapper 7091601

NUT 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

30

Snapper 7091908

SCREW, 5/16-18 x 1.3/4", Grade 5
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 7072093

WELDMENT, Carriage/Axle

$

$

Currently unavailable

32

Snapper 7072321

TUBE, Seat Extension
(Superseded to 7072321YP)

$26.99

$

Usually ships in 2-12 days

0

33

Snapper 7072646

DECAL, Warning
(Superseded to 7072646YP)

$13.99

$

Usually ships in 2-12 days

0

34

Snapper 7019293

NAMEPLATE, Snapper
(Superseded to 7044640YP)

Note: (Not shown)

$4.99

$

Usually ships in 2-12 days

0

35

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: (Not shown in illustration) (2)

$4.99

$

In Stock, only 2 left!

0

36

Snapper 7075760

DECAL, Snapper
(Superseded to 7075760YP)

Note: Was 72536 (Not shown)

$11.99

$

Usually ships in 2-12 days

0
