7063047 - Snapper 38" Yard Cruiser Twin Bag Grass Catcher Baffle & Tubes Parts Diagram

38" Yard Cruiser Twin Bag Grass Catcher

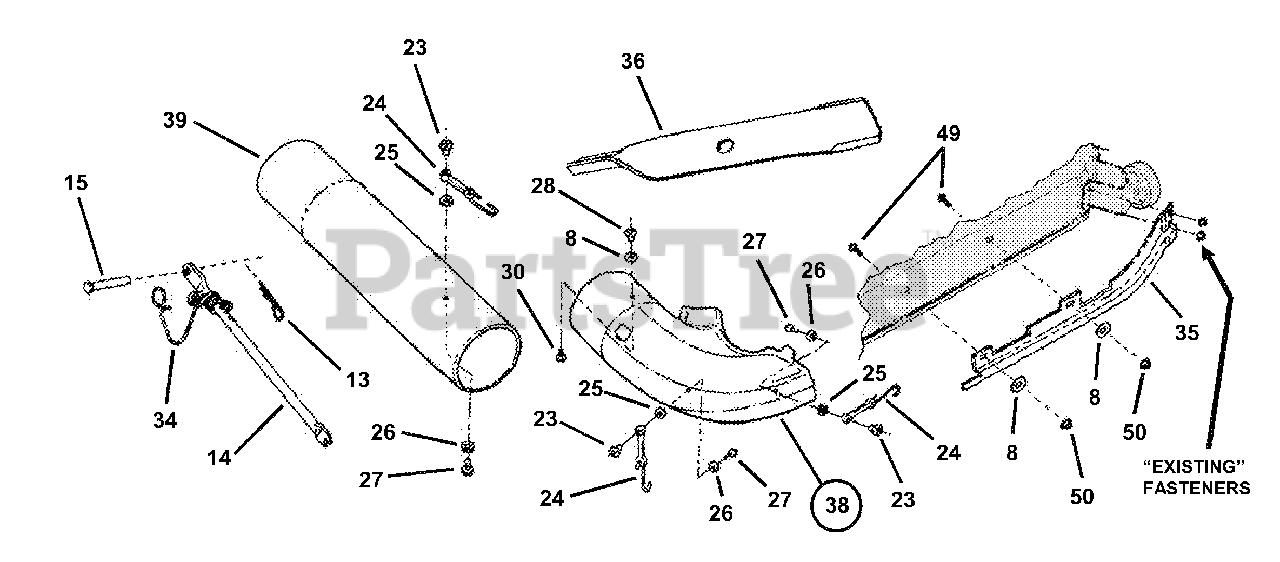

Baffle & Tubes Parts Diagram

  • Title

--

Snapper 7063047

KIT, Grass Catcher

$

$

Currently unavailable

8

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 61889

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7046573

BRACE, Rear

$

$

Not available

15

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, only 3 left!

0

23

Snapper 7036404

NUT, #10-24 x 5/8" Weld
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7036433

STRAP, Adapter/Tube
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

25

Snapper 7036422

WASHER, 3/16" Flat
(Superseded to 7036422SM)

Note: Included in Hardware Bag 61889

$3.99

$

In Stock, only 2 left!

0

26

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

Note: Included in Hardware Bag 61889

$3.99

$

In Stock, Qty 16

0

27

Snapper 7036415

SCREW, #10-24 x 5/8" Pan Hd.
(Superseded to 7036415SM)

Note: Included in Hardware Bag 61889

$3.99

$

In Stock, only 2 left!

0

28

Snapper 7036543

TEENUT, 5/16-18
(Superseded to 7036543SM)

Note: Included in Hardware Bag 61889

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 7091833

SCREW, 5/16-18 x 5/8" Mach.
(Superseded to 7091833SM)

Note: Was 91833 (Included in Hardware Bag 61889)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7051407

ASS'Y, Spring & Hook
(Superseded to 7051407YP)

$37.99

$

In Stock, only 1 left!

0

35

Snapper 7044726

BAFFLE, 38" Deck
(Superseded to 7044726YP)

$66.99

$

Usually ships in 2-12 days

0

36

Snapper 7036547

ASSEMBLY , High Lift Blade & Decal #44686 blade length 19.64"; blade hole diameter .981"
(Superseded to 7036547YP)

Note: Was 54514

$30.99

$

Usually ships in 2-12 days

0

38

Snapper 7057810

ADAPTER,
(Superseded to 7057810YP)

Note: (Incl. Decal 46720)

$273.99

$

Usually ships in 2-12 days

0

39

Snapper 7046615

TUBE, Grass (37" long)
(Superseded to 7046615YP)

$122.99

$

Usually ships in 2-12 days

0

49

Snapper 7091318

SCREW, 5/16-18 x 3/4" Cap
(Superseded to 704287)

Note: Included in Hardware Bag 61889

$3.99

$

In Stock, Qty 9

0

50

Snapper 7091575

NUT, 5/16-18 Hex Ctr. Lock
(Superseded to 703164)

Note: Included in Hardware Bag 61889

$3.49

$

In Stock, Qty 19

0
