7063046 - Snapper 33" Yard Cruiser Twin Bag Grass Catcher Chute Group Parts Diagram

33" Yard Cruiser Twin Bag Grass Catcher

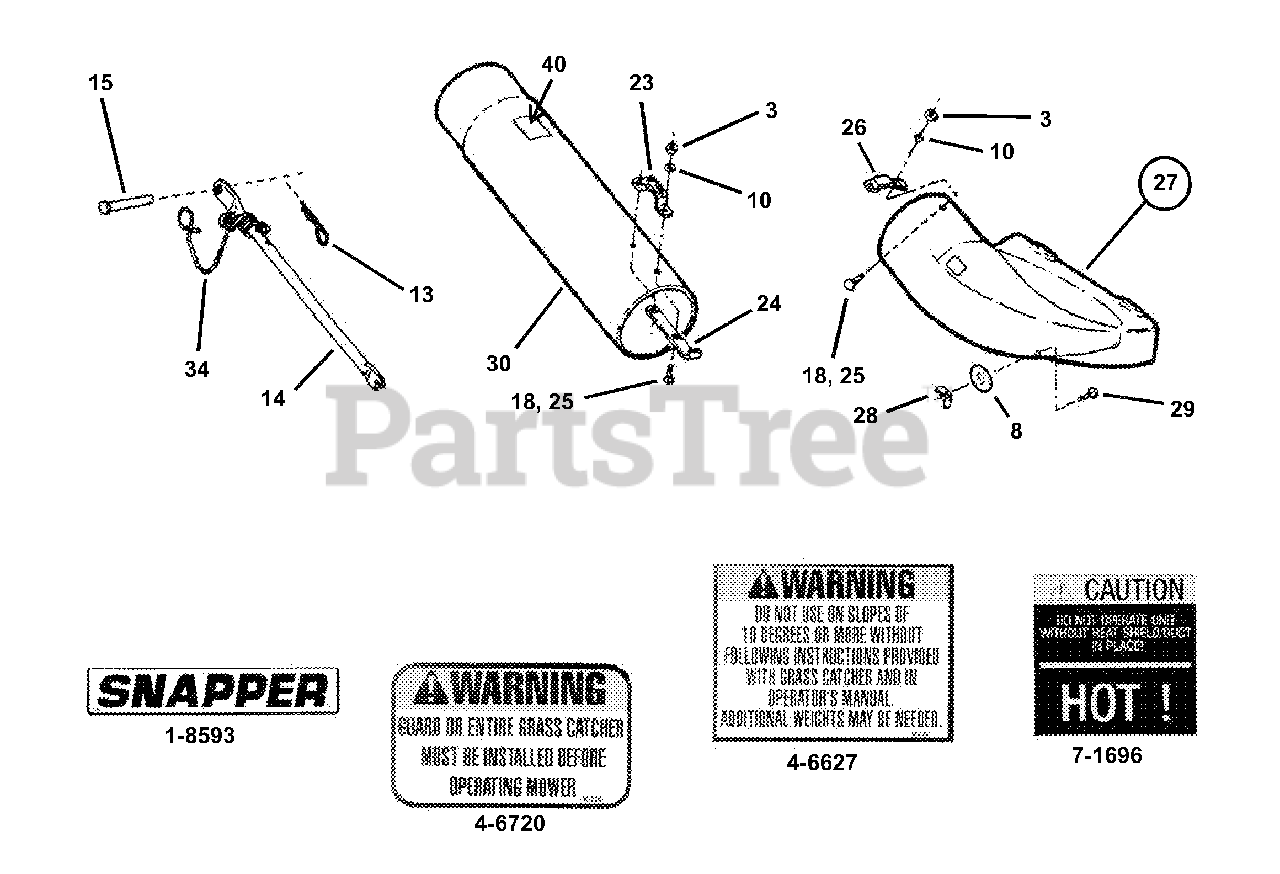

Chute Group Parts Diagram

  • Title
--

Snapper 7063046

KIT, Grass Catcher

$

$

Currently unavailable

3

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 60589

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7090053

WASHER, 1/4" Lock
(Superseded to 703462)

Note: Was 91314 (Included in Hardware Bag 60589)

$4.49

$

In Stock, Qty 7

0

13

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7046573

BRACE, Rear

$

$

Not available

15

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, only 3 left!

0

23

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

$10.99

$

Usually ships in 2-12 days

0

24

Snapper 7031952

BASE, Tube Handle
(Superseded to 7031952YP)

$7.49

$

In Stock, only 1 left!

0

25

Snapper 7091614

SCREW, 1/4-20 x 3/4" Mach.
(Superseded to 7091614YP)

Note: Included in Hardware Bag 60589

$3.99

$

Usually ships in 2-12 days

0

26

Snapper 7031951

LATCH, Chute Tube
(Superseded to 7031951YP)

$5.99

$

In Stock, only 1 left!

0

27

Snapper 7057809

ASSY, Bag Adapter, 33"
(Superseded to 7057809YP)

Note: (Incl. Decal 46720)

$277.99

$

Usually ships in 2-12 days

0

28

Snapper 7091537

WING LOCKNUT, 5/16-18
(Superseded to 7091537YP)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, only 3 left!

0

29

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 12

0

30

Snapper 7046614

TUBE, Grass (45" long)

$

$

Not available

34

Snapper 7051407

ASS'Y, Spring & Hook
(Superseded to 7051407YP)

$37.99

$

In Stock, only 1 left!

0

40

Snapper 7046627

DECAL, Warning
(Superseded to 7046627YP)

$7.99

$

In Stock, only 2 left!

0

1-8593

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

4-6720

Snapper 7046720

DECAL, CHUTE DEFLECTOR
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

4-6627

Snapper 7046627

DECAL, GRASS BAG WARNING
(Superseded to 7046627YP)

$7.99

$

In Stock, only 2 left!

0

7-1696

Snapper 7071696

DECAL, HEAT SHIELD
(Superseded to 7071696YP)

$5.99

$

Usually ships in 2-12 days

0
