7063046 - Snapper 33" Yard Cruiser Twin Bag Grass Catcher Catcher Group Parts Diagram

33" Yard Cruiser Twin Bag Grass Catcher

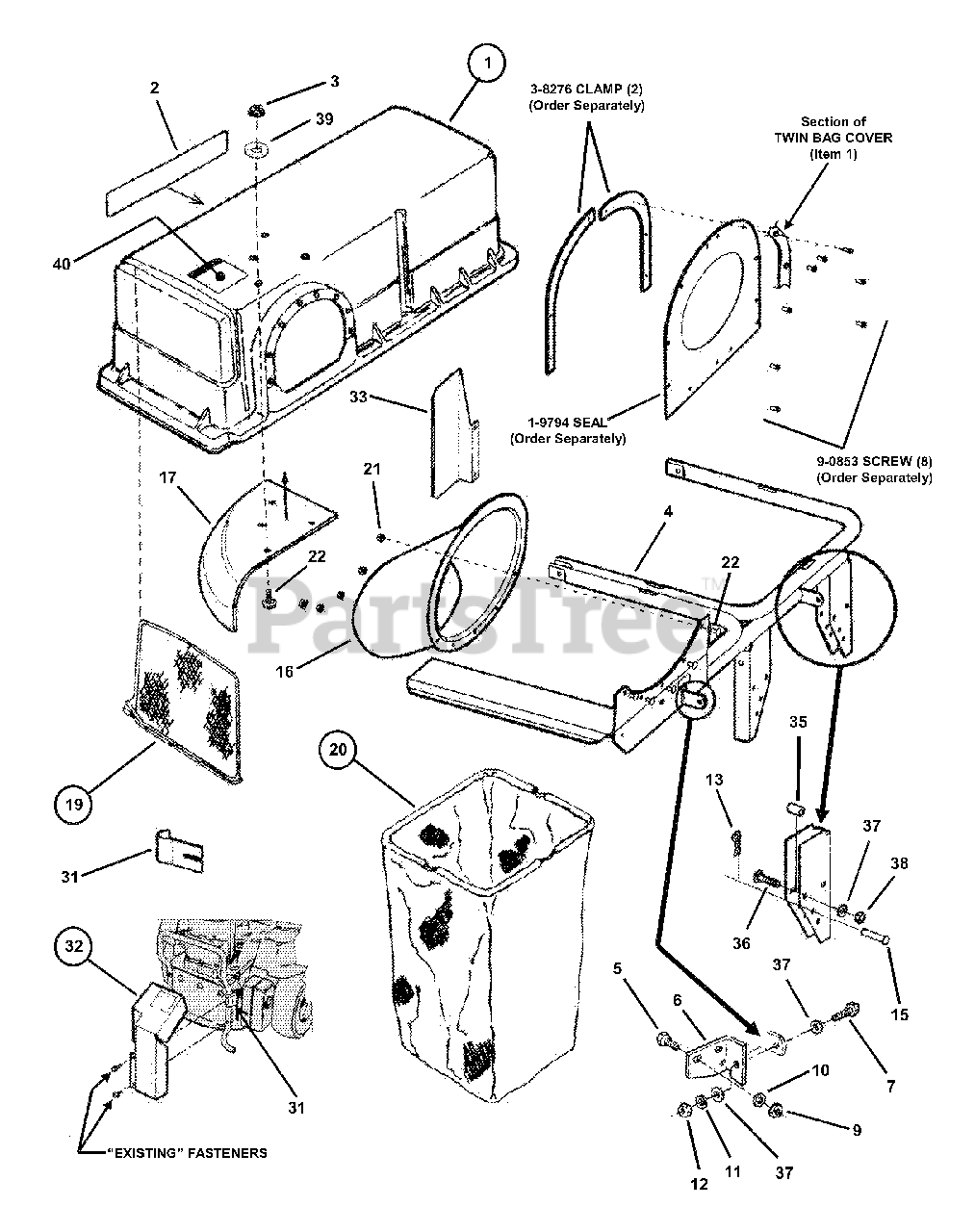

Catcher Group Parts Diagram

  • Title

--

Snapper 7063046

KIT, Grass Catcher

$

$

Currently unavailable

1

Snapper 7057885

ASS'Y, Cover
(Superseded to 7057885YP)

Note: (Incl. 46627)

$296.99

$

Usually ships in 2-12 days

0

2

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

3

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 60589

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7054645

WELDMENT, Frame
(Superseded to 7054645YP)

$250.99

$

Usually ships in 2-12 days

0

5

Snapper 7091611

SCREW, 1/4-28 x 3/4"
(Superseded to 7091611YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7038087

HINGE, Top
(Superseded to 7038087YP)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper 7090238

SCREW, 5/16-24 x 1"
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

9

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Was 91605

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7090053

WASHER, 1/4" Lock
(Superseded to 703462)

Note: Was 91314 (Included in Hardware Bag 60589)

$4.49

$

In Stock, Qty 7

0

11

Snapper 7091315

WASHER, 5/16" Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7091606

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, only 3 left!

0

16

Snapper 7035706

INLET, Twin Bagger
(Superseded to 7035706YP)

$202.99

$

Usually ships in 2-12 days

0

17

Snapper 7019725

SECTOR
(Superseded to 7019725YP)

$87.99

$

Usually ships in 2-12 days

0

19

Snapper 7057652

ASS'Y, Screen (indented items)

$

$

Currently unavailable

--

Snapper 7019732

FRAME
(Superseded to 7019732YP)

$25.99

$

Usually ships in 2-12 days

0

--

Snapper 7019731

SCREEN
(Superseded to 7019731YP)

$32.99

$

Usually ships in 2-12 days

0

20

Snapper 7051930

ASS'Y, Bag (indented items)

$

$

Not available

--

Snapper 7019250

BAG, Grass Catcher
(Superseded to 7019250YP)

$81.99

$

In Stock, Qty 9

0

--

Snapper 7019965

ROD, Bag Support
(Superseded to 7019965YP)

$87.99

$

Usually ships in 2-12 days

0

--

Snapper 7014456

CONNECTOR, Rod
(Superseded to 7014456YP)

$5.99

$

Usually ships in 2-12 days

0

21

Snapper 7091545

NUT, 1/4-20 Hex Flange
(Superseded to 703916)

Note: Included in Hardware Bag 60589

$4.99

$

In Stock, only 2 left!

0

22

Snapper 7091604

BOLT, 1/4-20 x 1/2" Carriage
(Superseded to 703978)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7042716

SUPPORT, Bumper
(Superseded to 7042716YP)

$23.99

$

Usually ships in 2-12 days

0

32

Snapper 7057709

ASS'Y, Debris Shield
(Superseded to 7063035YP)

Note: (Incl. 71696)

$76.99

$

Usually ships in 2-12 days

0

33

Snapper 7071677

GUARD, Muffler
(Superseded to 7071677YP)

$79.99

$

In Stock, only 1 left!

0

35

Snapper 7023797

PAD, Bumper Mount
(Superseded to 7023797YP)

$2.99

$

Usually ships in 2-12 days

0

36

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Carr.
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

37

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

38

Snapper 7091575

NUT, 5/16-18 Hex Ctr. Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

39

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, Qty 20+

0

40

Snapper 7046627

DECAL, Warning
(Superseded to 7046627YP)

$7.99

$

In Stock, only 2 left!

0
