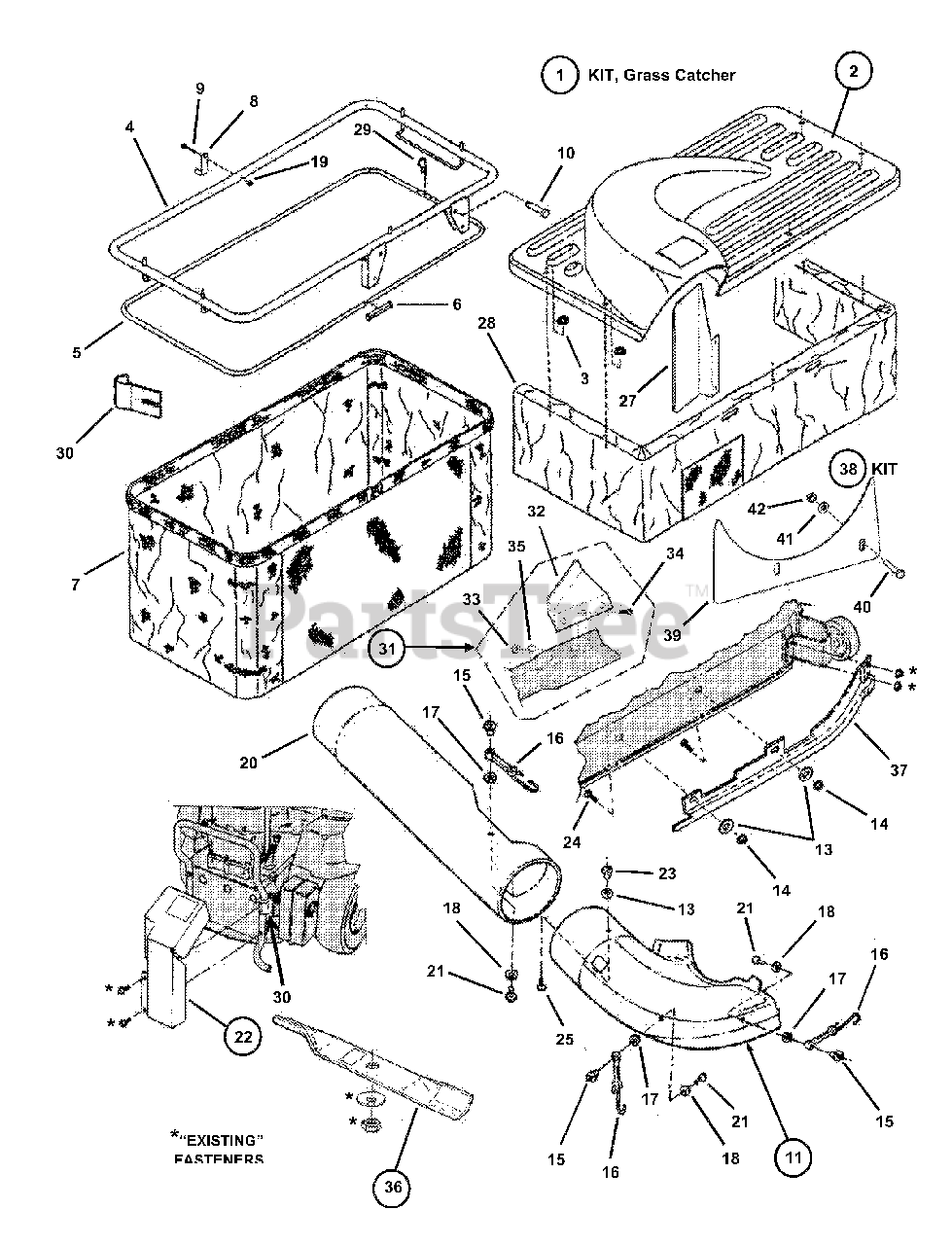

7063045 - Snapper 38" Yard Cruiser Single Grass Catcher Single Bag Catcher Parts Diagram

38" Yard Cruiser Single Grass Catcher

Single Bag Catcher Parts Diagram

  • Title

1

Snapper 7063045

KIT, Grass Catcher (38" Models)

Note: (Includes Items 2 Thru 38)

$

$

Currently unavailable

2

Snapper 7057983

TOP, Container
(Superseded to 7501833YP)

Note: (Includes Decal No. 46627)

$

$

Not available

3

Snapper 7029840

WASHER, 5/16" Faceted
(Superseded to 704315)

Note: Included in Hardware Bag 61887

$4.49

$

In Stock, only 2 left!

0

4

Snapper 7042754

FRAME, Weldment
(Superseded to 7042754YP)

$87.99

$

Usually ships in 2-12 days

0

5

Snapper 7037758

ROD, Bag
(Superseded to 7057248YP)

$

$

Not available

6

Snapper 7012556

CONNECTOR, Bag Rod
(Superseded to 7012556YP)

Note: Included in Hardware Bag 61887

$7.49

$

In Stock, only 1 left!

0

7

Snapper 7024819

BAG, Grass
(Superseded to 7024819YP)

Note: Was 19251

$

$

Not available

8

Snapper 7031725

LATCH, Top
(Superseded to 7031725YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7090532

SCREW, #10-32 x 1-3/8" Hex Head Machine
(Superseded to 704316)

Note: Included in Hardware Bag 61887

$4.99

$

In Stock, only 2 left!

0

10

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 61887

$4.49

$

In Stock, only 3 left!

0

11

Snapper 7057810

ADAPTER, Deck
(Superseded to 7057810YP)

Note: (Includes Decal No. 46720)

$273.99

$

Usually ships in 2-12 days

0

13

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

Note: Was 91296 (Included in Hardware Bag 61887)

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Included in Hardware Bag 61887

$3.49

$

In Stock, Qty 19

0

15

Snapper 7036404

NUT, #10-24 x 5/8" Weld
(Superseded to 7036404SM)

Note: Included in Hardware Bag 61887

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7036433

STRAP, Mounting Bag Adapter/Tube
(Superseded to 7036433SM)

Note: Included in Hardware Bag 61887

$31.99

$

In Stock, only 1 left!

0

17

Snapper 7036422

WASHER, 3/16" Flat
(Superseded to 7036422SM)

Note: Included in Hardware Bag 61887

$3.99

$

In Stock, only 2 left!

0

18

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

Note: Included in Hardware Bag 61887

$3.99

$

In Stock, Qty 15

0

19

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

Note: Included in Hardware Bag 61887

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7046615

TUBE, Grass (37" long)
(Superseded to 7046615YP)

$122.99

$

Usually ships in 2-12 days

0

21

Snapper 7036415

SCREW, #10-24 x 5/8" Pan Head
(Superseded to 7036415SM)

Note: Included in Hardware Bag 61887

$3.99

$

In Stock, only 2 left!

0

22

Snapper 7057709

ASSEMBLY, Debris Shield
(Superseded to 7063035YP)

Note: (Includes Decal No. 71696)

$76.99

$

Usually ships in 2-12 days

0

23

Snapper 7036543

TEENUT, 5/16-18
(Superseded to 7036543SM)

Note: Included in Hardware Bag 61887

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 704287)

Note: Included in Hardware Bag 61887

$3.99

$

In Stock, Qty 9

0

25

Snapper 7091833

SCREW, 5/16-18 x 5/8" Cross Recess Pan Head
(Superseded to 7091833SM)

Note: Was 91833 (Included in Hardware Bag 61887)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7071677

SHIELD, Muffler Heat (8 HP Engines)
(Superseded to 7071677YP)

$79.99

$

In Stock, only 1 left!

0

28

Snapper 7071679

DUST SKIRT
(Superseded to 7071679YP)

$28.99

$

Usually ships in 2-12 days

0

29

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 61887

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7042716

REINFORCEMENT, Bumper
(Superseded to 7042716YP)

$23.99

$

Usually ships in 2-12 days

0

31

Snapper 7060480

KIT, Air Lift
(Superseded to 7060480SM)

Note: (Includes Items 32 Thru 35); Included in Hardware Bag 61887

$

$

Not available

32

Snapper 7037723

AIR LIFT
(Superseded to 7037723BMYP)

$

$

Not available

33

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7090228

SCREW, 5/16-24 x 11/16" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

35

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 7036547

ASSEMBLY, High Lift Blade & Decal (Decal No. 44686)(blade length: 19.64; hole diameter: .981")
(Superseded to 7036547YP)

Note: Was 54514

$30.99

$

Usually ships in 2-12 days

0

37

Snapper 7044726

BAFFLE, 38" Deck MY97
(Superseded to 7044726YP)

$66.99

$

Usually ships in 2-12 days

0

38

Snapper 7063289

KIT, Catcher Debris Shield
(Superseded to 7063289YP)

Note: (Incl. Items 39 Thru 42)

$29.99

$

Usually ships in 2-12 days

0

39

Snapper 7063287

SHIELD, Debris
(Superseded to 7063289YP)

$29.99

$

Usually ships in 2-12 days

0

40

Snapper 7090909

BOLT, 1/4-20 x 1-1/2" Hex
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

41

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

42

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0
