7063044 - Snapper 33" Yard Cruiser Single Grass Catcher Catcher Group Parts Diagram

33" Yard Cruiser Single Grass Catcher

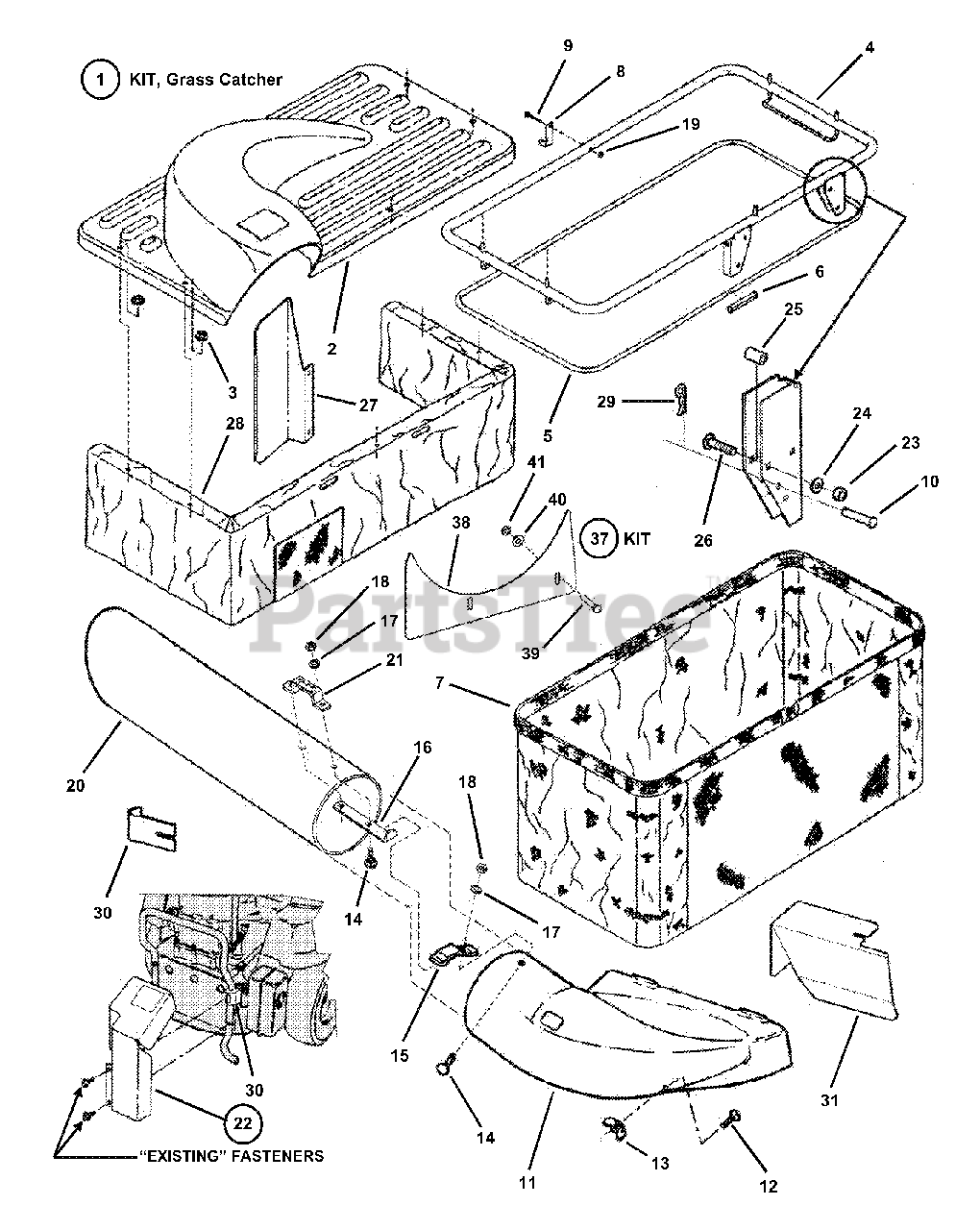

Catcher Group Parts Diagram

  • Title

1

Snapper 7063157

KIT, Grass Catcher (33" Models, Series 2)

Note: (Includes Items 2 Thru 37)

$

$

Not available

2

Snapper 7057983

TOP, Container
(Superseded to 7501833YP)

Note: (Includes Decal No. 46627)

$

$

Not available

3

Snapper 7029840

WASHER, 5/16" Faceted
(Superseded to 704315)

Note: Included in Hardware Bag 63013

$4.49

$

In Stock, only 2 left!

0

4

Snapper 7046651

FRAME, Weldment
(Superseded to 7046651YP)

$216.99

$

Usually ships in 2-12 days

0

5

Snapper 7037758

ROD, Bag
(Superseded to 7057248YP)

$

$

Not available

6

Snapper 7012556

CONNECTOR, Bag Rod
(Superseded to 7012556YP)

Note: Included in Hardware Bag 63013

$7.49

$

In Stock, only 1 left!

0

7

Snapper 7024819

BAG, Grass
(Superseded to 7024819YP)

Note: Was 19251

$

$

Not available

8

Snapper 7031725

LATCH, Top
(Superseded to 7031725YP)

Note: Included in Hardware Bag 63013

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7090532

SCREW, #10-32 x 1-3/8" Hex Head Machine
(Superseded to 704316)

Note: Included in Hardware Bag 63013

$4.99

$

In Stock, only 2 left!

0

10

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 63013

$4.49

$

In Stock, only 3 left!

0

11

Snapper 7057809

ADAPTER, Deck
(Superseded to 7057809YP)

Note: (Includes 46720 Decal)

$277.99

$

Usually ships in 2-12 days

0

12

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

Note: Included in Hardware Bag 63013

$3.99

$

In Stock, Qty 7

0

13

Snapper 7091537

WING LOCK NUT, 5/16-18
(Superseded to 7091537YP)

Note: Included in Hardware Bag 63013

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Included in Hardware Bag 63013

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7031951

LATCH, Tube
(Superseded to 7031951YP)

Note: Included in Hardware Bag 63013

$5.99

$

In Stock, only 1 left!

0

16

Snapper 7031952

BASE, Handle
(Superseded to 7031952YP)

Note: Included in Hardware Bag 63013

$7.49

$

In Stock, only 1 left!

0

17

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314 (Included in Hardware Bag 63013)

$4.49

$

In Stock, Qty 7

0

18

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 63013

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

Note: Included in Hardware Bag 63013

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7046614

TUBE, Grass (45" long)

$

$

Not available

21

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

Note: Included in Hardware Bag 63013

$10.99

$

Usually ships in 2-12 days

0

22

Snapper 7057709

ASSEMBLY, Debris Shield
(Superseded to 7063035YP)

Note: (Includes Decal No. 71696)

$76.99

$

Usually ships in 2-12 days

0

23

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

24

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

25

Snapper 7023797

PAD, Bumper Mount
(Superseded to 7023797YP)

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Square Neck Carriage, Grade 5
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

27

Snapper 7071677

SHIELD, Muffler Heat (8 HP Engines)
(Superseded to 7071677YP)

$79.99

$

In Stock, only 1 left!

0

28

Snapper 7071679

DUST SKIRT
(Superseded to 7071679YP)

$28.99

$

Usually ships in 2-12 days

0

29

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 63013

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7042716

REINFORCEMENT, Bumper
(Superseded to 7042716YP)

$23.99

$

Usually ships in 2-12 days

0

31

Snapper 7058910

HEAT SHIELD
(Superseded to 7058910YP)

$37.99

$

Usually ships in 2-12 days

0

37

Snapper 7063289

KIT, Catcher Debris Shield
(Superseded to 7063289YP)

Note: (Incl. Items 38 thru 41)

$29.99

$

Usually ships in 2-12 days

0

38

Snapper 7063287

SHIELD, Debris
(Superseded to 7063289YP)

$29.99

$

Usually ships in 2-12 days

0

39

Snapper 7090909

BOLT, Hex 1/4-20 x 1-1/2" Hex
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

40

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

41

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0
