7063032 - Snapper Grass Catcher Mounting Kit for PRO Units with SP, SPA, SPE Decks Grass Catcher, Mount (PRO Units with SP, SPA & SPE Decks) Parts Diagram

Grass Catcher Mounting Kit for PRO Units with SP, SPA, SPE Decks

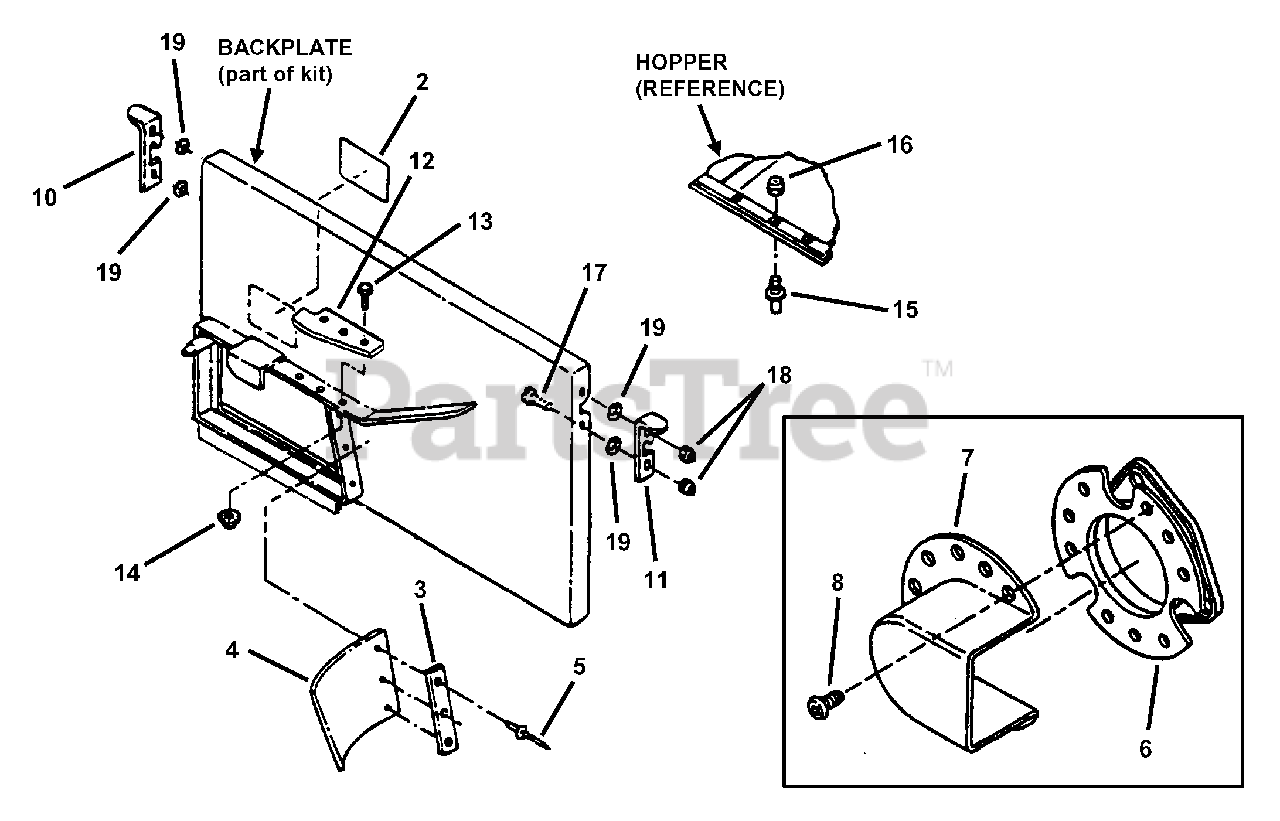

Grass Catcher, Mount (PRO Units with SP, SPA & SPE Decks) Parts Diagram

  • Title

Snapper 7063032

KIT, Catcher Mounting

Note: (Includes items 1 thru 9)

$

$

Currently unavailable

?1

Snapper 7057700

ASSEMBLY, Back Plate

$

$

Currently unavailable

2

Snapper 7022522

DECAL, Warning
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

3

Snapper 7033198

PLATE, Backing
(Superseded to 7033198YP)

$5.49

$

Usually ships in 2-12 days

0

4

Snapper 7042750

STRIP, Side Sealing
(Superseded to 7042750YP)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 7091134

POP RIVET

$

$

Currently unavailable

6

Snapper 7034156

CAP, Deflector
(Superseded to 7034156YP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7034157

DEFLECTOR, Exhaust
(Superseded to 7034157YP)

$43.99

$

Usually ships in 2-12 days

0

8

Snapper 7034158

SCREW, Deflector Mounting
(Superseded to 7034158YP)

$3.99

$

Usually ships in 2-12 days

0

?9

Snapper 7063034

BAG, Hardware

Note: (Includes the items listed below)

$

$

Currently unavailable

10

Snapper 7033433

LATCH, Left Side
(Superseded to 7033433YP)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper 7033432

LATCH, Right Side
(Superseded to 7033432YP)

$10.99

$

Usually ships in 2-12 days

0

12

Snapper 7046383

STRIP, Top Seal

$

$

Currently unavailable

13

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

14

Snapper 7091545

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

15

Snapper 7015464

STUD, 3/8-24 Thread
(Superseded to 7015464YP)

$7.49

$

In Stock, only 1 left!

0

16

Snapper 7090854

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

Note: These parts are required

$3.49

$

In Stock, Qty 5

0

17

Snapper 7076952

SCREW, #10-24 x 5/8" Pan Head
(Superseded to 7076952YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

19

Snapper 7073953

WAVE WASHER (spring)
(Superseded to 7073953YP)

$2.99

$

Usually ships in 2-12 days

0
