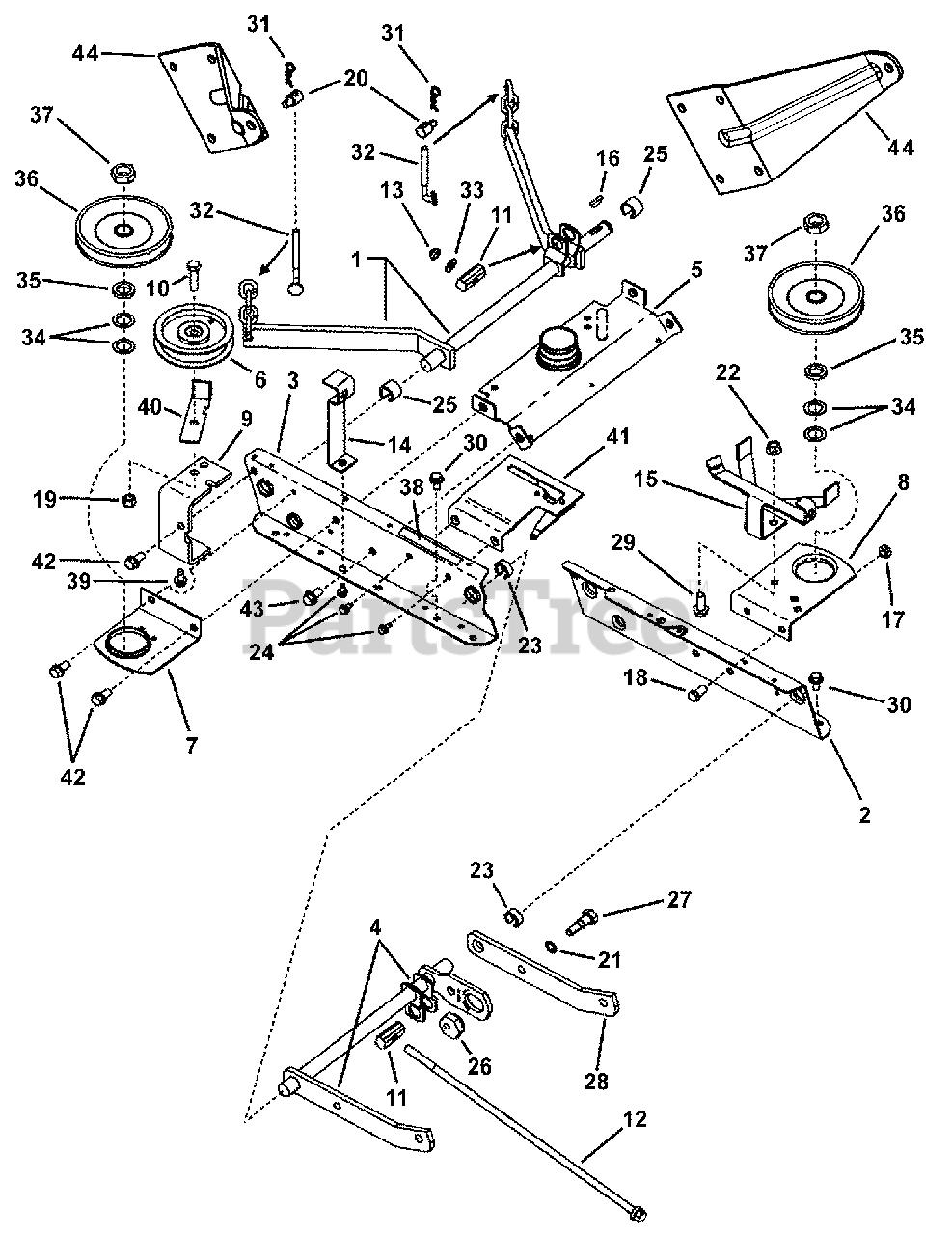

7063023 - Snapper 42" Dual Idler Mower Deck Kit RAILS, LIFT ARMS, CAM LIFT Parts Diagram

42" Dual Idler Mower Deck Kit

RAILS, LIFT ARMS, CAM LIFT Parts Diagram

  • Title

1

Snapper 7041248

ASSEMBLY, Rear Lift Arm
(Superseded to 7041248YP)

$188.99

$

Usually ships in 2-12 days

0

2

Snapper 7073269

RAIL, Deck Lift, Left Hand
(Superseded to 7073269YP)

$27.99

$

Usually ships in 2-12 days

0

3

Snapper 7036430

RAIL, Deck Lift, Right Hand
(Superseded to 7036430YP)

Note: Was 43848

$54.99

$

In Stock, only 1 left!

0

4

Snapper 7041578

WELDMENT, Front Lift Arm

$

$

Not available

5

Snapper 7040502

WELDMENT, Top Brace
(Superseded to 7040502YP)

$81.99

$

Usually ships in 2-12 days

0

6

Snapper 7018574

IDLER, 4-1/8" Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

7

Snapper 7034759

BRACE, R.H. Spindle
(Superseded to 7034759YP)

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 7038096

BRACE, L.H. Spindle
(Superseded to 7038096YP)

$16.99

$

Usually ships in 2-12 days

0

9

Snapper 7034763

BRACE/IDLER Mounting Bracket

$12.99

$

In Stock, only 1 left!

0

10

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

11

Snapper 7034213

PIVOT, Leveling
(Superseded to 7034213YP)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7027944

ROD, Leveling

$4.99

$

In Stock, only 1 left!

0

13

Snapper 7090499

NUT, 3/8-16 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7034857

BELT GUIDE, 42"

$

$

Not available

15

Snapper 7042613

GUIDE, Belt, 42" RER (weldment)

$

$

Not available

16

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 6

0

17

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

18

Snapper 7090134

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR 5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7028200

SWIVEL, Adjustment (with 5/16-18 internal thread)
(Superseded to 7028200SM)

$13.99

$

In Stock, Qty 5

0

21

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

22

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

23

Snapper 7012067

RING, Front Lift Arm (Red)
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

24

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

25

Snapper 7012068

RING, Rear Lift Arm (Blue)
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

26

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

27

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder, GR 5
(Superseded to 7015495YP)

$

$

Not available

28

Snapper 7032997

ARM, Front Lift (Left Side)
(Superseded to 7032997YP)

$16.99

$

In Stock, only 1 left!

0

29

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock, GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 3 left!

0

30

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

31

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7028728

ADJUSTER, Chain (5/16-18 thread)
(Superseded to 703827)

$10.99

$

Usually ships in 2-12 days

0

33

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7014526

SPACER

$

$

Not available

36

Snapper 7014532

PULLEY, 5" Outside Diameter
(Superseded to 7014532YP)

$53.99

$

In Stock, only 3 left!

0

37

Snapper 7074467

NUT, 3/4-16 Hex Jam, GR 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

38

Snapper 7073066

DECAL, Blade Engagement, 42" Deck
(Superseded to 7073066YP)

$5.99

$

Usually ships in 2-12 days

0

39

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

40

Snapper 7032368

BELT GUIDE

$

$

Not available

41

Snapper 7058969

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

$41.99

$

In Stock, only 2 left!

0

42

Snapper 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

43

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

44

Snapper 7034299

WING, Rear
(Superseded to 7034299YP)

$20.99

$

Usually ships in 2-12 days

0
