7063023 - Snapper 42" Dual Idler Mower Deck Kit DECK HEIGHT ADJUSTMENT COMPONENTS Parts Diagram

42" Dual Idler Mower Deck Kit

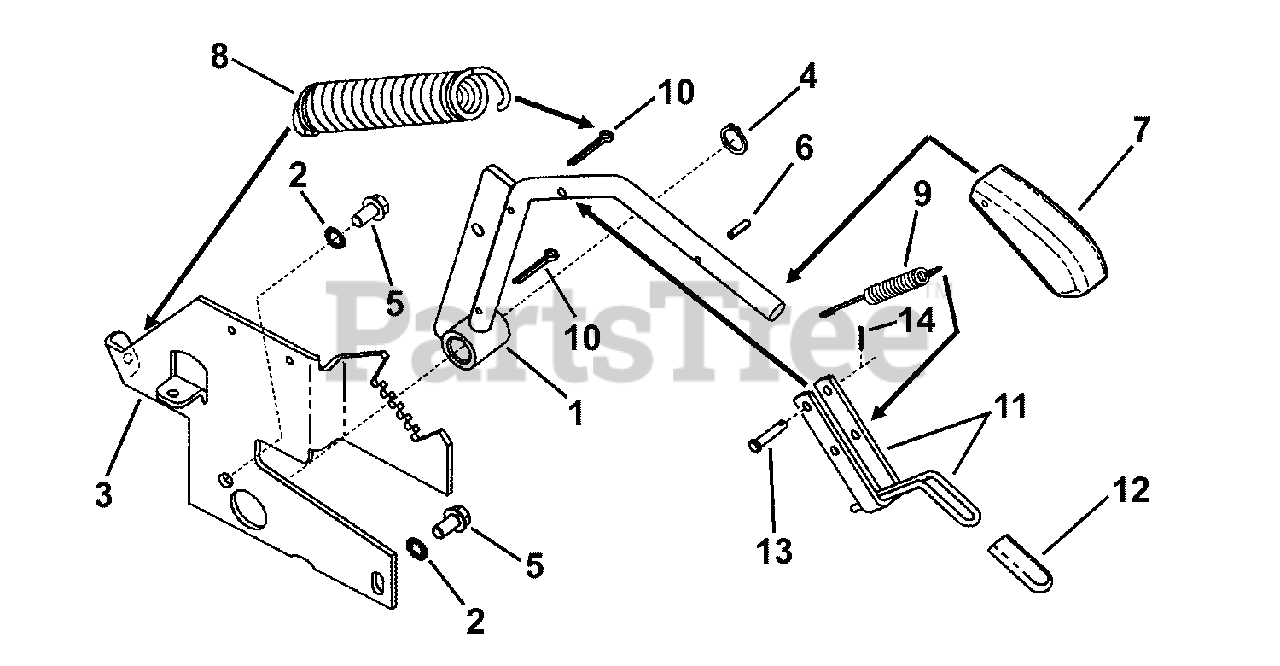

DECK HEIGHT ADJUSTMENT COMPONENTS Parts Diagram

  • Title

1

Snapper 7053300

LEVER, Height Adjustment Lift (weldment)
(Superseded to 7053300YP)

$219.99

$

Usually ships in 2-12 days

0

2

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 7034069

QUADRANT, Lift Lever

$

$

Not available

4

Snapper 7010746

RING, .625 External Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

6

Snapper 7090844

ROLL PIN, 3/16 x 3/4"
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7023658

GRIP,Deck Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

In Stock, only 1 left!

0

8

Snapper 7024914

SPRING, Extension
(Superseded to 7024914YP)

$14.99

$

In Stock, only 1 left!

0

9

Snapper 7012122

SPRING,Latch
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

10

Snapper 7091515

PIN, 3/16 x 1-1/2" Cotter
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, Qty 13

0

11

Snapper 7041581

LATCH (weldment)
(Superseded to 7041581YP)

$40.99

$

In Stock, only 1 left!

0

12

Snapper 7026286

GRIP, Lift Latch
(Superseded to 7026286YP)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 7011021

PIN, 1/4 x 1-1/4" Clevis
(Superseded to 7023914YP)

$

$

Not available

14

Snapper 7090360

PIN, 1/16 x 3/4" Cotter

$3.99

$

Usually ships in 2-12 days

0
