7063007 - Snapper 47" Rotary Broom PRO Kit Rotary Broom 47" (Part 3) Parts Diagram

47" Rotary Broom PRO Kit

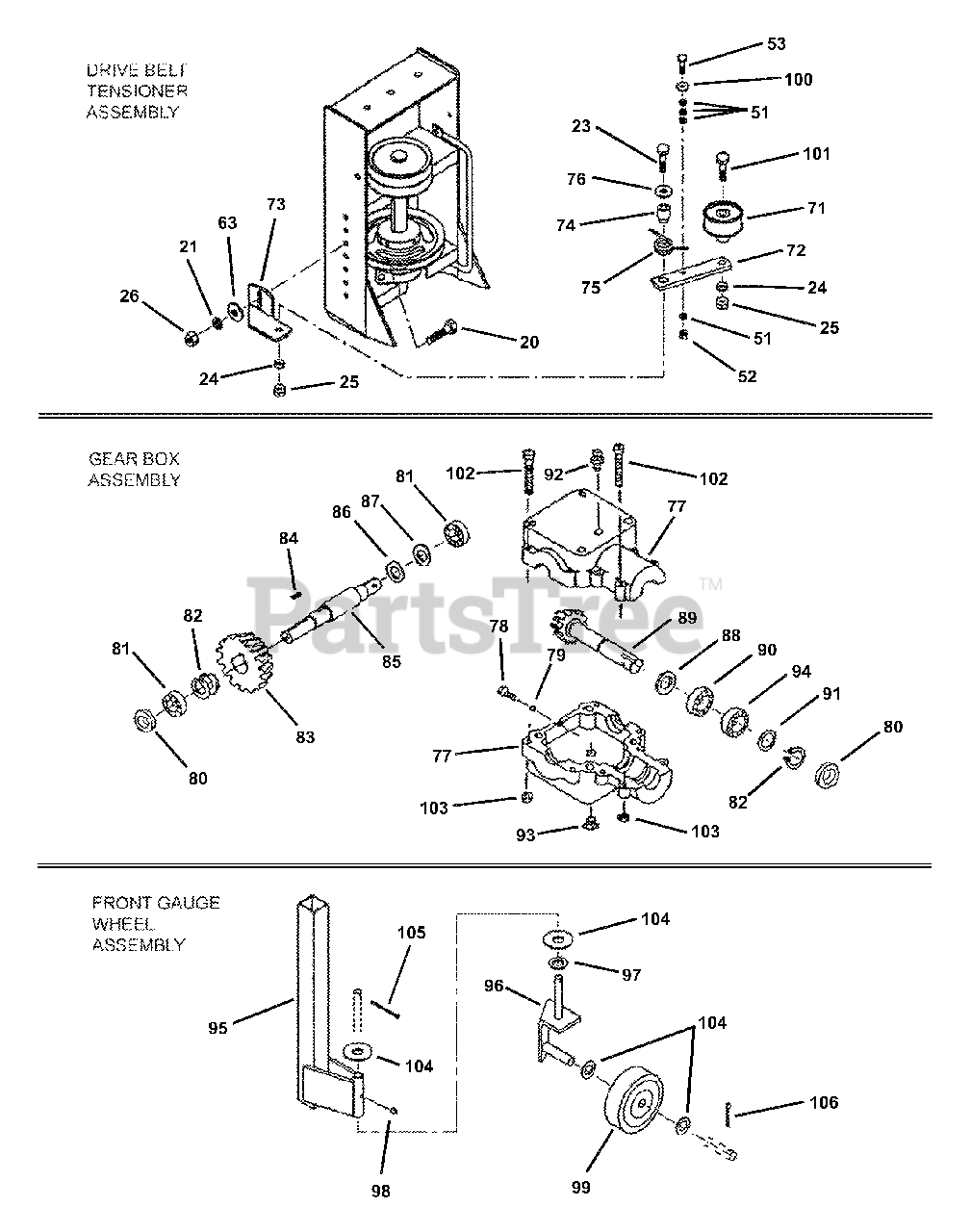

Rotary Broom 47" (Part 3) Parts Diagram

  • Title

20

BOLT, 5/16-18 x 1" Hex

$

$

Not available

21

WASHER, 5/16" Lock

$

$

Not available

23

BOLT, 3/8-16 x 2" Hex

$

$

Not available

24

WASHER, 3/8" Lock

$

$

Not available

25

NUT, 3/8-16 Hex

$

$

Not available

26

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

Snapper 7063007

KIT, 47" Rotary Broom

Note: (Incl. items 51)

$

$

Currently unavailable

51

Snapper 663332

DRIVE BELT, SP Models with Kohler Engine (B-57)

$

$

Currently unavailable

Snapper 664024

DRIVE BELT, PL7H Models (B-52)

$

$

Currently unavailable

Snapper 664024

DRIVE BELT, SP Models w/o Kohler Engine (B-52)

$

$

Currently unavailable

52

ROLL PIN, 1/4" Dia. x 1-1/4" long

$

$

Not available

53

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

63

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

Snapper 7063007

KIT, 47" Rotary Broom

Note: (Incl. items 71 thru 99)

$

$

Currently unavailable

71

Snapper 657876

PULLEY, Idler

$23.99

$

Usually ships in 2-12 days

0

72

Snapper 663870

LEVER

$

$

Currently unavailable

73

Snapper 663872

SUPPORT, Lever

$

$

Currently unavailable

74

Snapper 663871

BUSHING

$

$

Currently unavailable

75

Snapper 663867

SPRING, Torsion

$

$

Currently unavailable

76

Snapper 661976

WASHER, 13/32" Dia. Hole

$

$

Currently unavailable

77

Snapper 663915

CASING (2 halves)

$

$

Currently unavailable

78

Snapper 661739

PLUG, 3/8"

$

$

Currently unavailable

79

Snapper 661144

O-RING

$

$

Currently unavailable

80

Snapper 661730

OIL SEAL

$

$

Currently unavailable

81

Snapper 661728

BEARING

$

$

Currently unavailable

82

Snapper 661734

SNAP RING

$

$

Currently unavailable

83

Snapper 661738

GEAR, Z25 M3,5

$

$

Currently unavailable

84

Snapper 660063

PARALLEL KEY, A8 x 7 x 25

$

$

Currently unavailable

85

Snapper 661729

SHAFT

$

$

Currently unavailable

86

Snapper 661737

SHIM 25.6 x 0.8

$

$

Currently unavailable

87

Snapper 661736

SHIM 25.6 x 1.0

$

$

Currently unavailable

88

Snapper 661731

SHIM 25.6 x 0.7

$

$

Currently unavailable

89

Snapper 661735

PINION 29 M3.5

$

$

Currently unavailable

90

Snapper 661732

BEARING

$

$

Currently unavailable

91

Snapper 661733

SHIM 25.6 x 0.6

$

$

Currently unavailable

92

Snapper 663909

BREATHER

$

$

Currently unavailable

93

Snapper 663855

PLUG, Oil Level

$

$

Currently unavailable

94

Snapper 663916

BEARING

$

$

Currently unavailable

95

Snapper 663534

SUPPORT

$

$

Currently unavailable

96

Snapper 663535

BRACKET, Right Hand Wheel

$

$

Currently unavailable

Snapper 663536

BRACKET, Left Hand Wheel

Note: (not shown)

$

$

Currently unavailable

97

Snapper 658578

NYLON WASHER, 0.630" I.D.

$

$

Currently unavailable

98

Snapper 654106

GREASE FITTING, 1/4" NF

$

$

Currently unavailable

99

Snapper 661306

WHEEL, 6" Dia. x 2"

$

$

Currently unavailable

100

Snapper 7091098

WASHER, 5/16" Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

101

Snapper 7090730

BOLT, 3/8-16 x 1-3/4" Hex

$

$

Not available

102

BOLT, M8 x 45

$

$

Not available

103

NUT, M8 Hex

$

$

Not available

104

WASHER, 11/16" Flat

$

$

Not available

105

Snapper 7091515

PIN, 3/16 x 1-1/2" Cotter
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, Qty 9

0

106

PIN, 1/4 x 1-1/2" Cotter

$

$

Not available
