7063007 - Snapper 47" Rotary Broom PRO Kit Rotary Broom 47" (Part 2) Parts Diagram

47" Rotary Broom PRO Kit

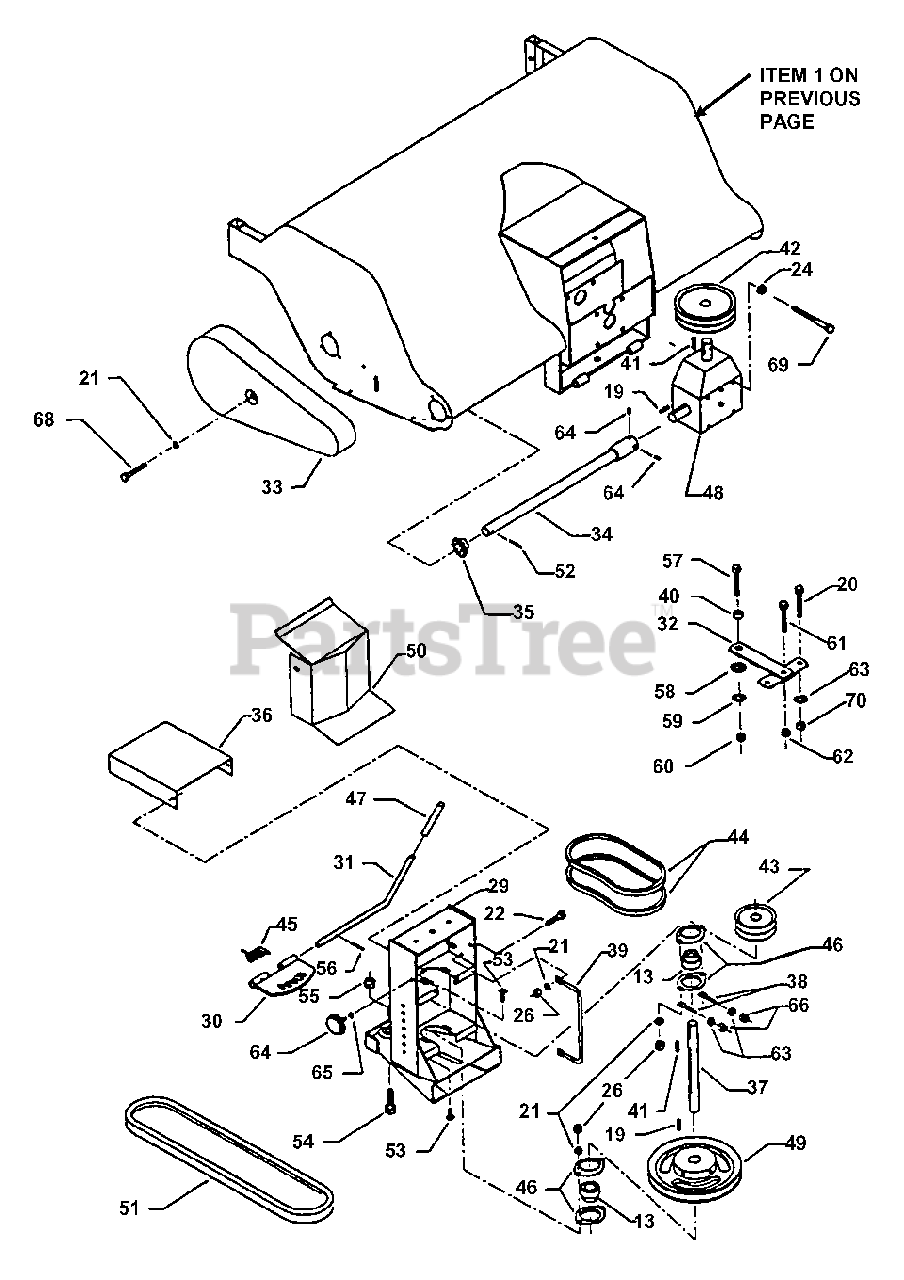

Rotary Broom 47" (Part 2) Parts Diagram

  • Title

Snapper 7063007

KIT, 47" Rotary Broom

Note: (Incl. items 1, 13, 19)

$

$

Currently unavailable

1

Snapper 663505

HOUSING

$

$

Currently unavailable

13

Snapper 654532

BEARING w/Locking Collar

$

$

Currently unavailable

19

Snapper 654643

KEY, 1/4" Square x 1-1/4"

$

$

Currently unavailable

20

BOLT, 5/16-18 x 1" Hex

$

$

Not available

21

WASHER, 5/16" Lock

$

$

Not available

22

BOLT, 5/16-18 x 3/4" Hex

$

$

Not available

24

WASHER, 3/8" Lock

$

$

Not available

26

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

Snapper 7063007

KIT, 47" Rotary Broom

Note: (Incl. items 29 thru 51)

$

$

Currently unavailable

29

Snapper 663549

HITCH, Female

$

$

Currently unavailable

30

Snapper 663551

ANGLE ADJUSTMENT

$

$

Currently unavailable

31

Snapper 663640

HANDLE

$

$

Currently unavailable

32

Snapper 663663

COUPLER, Upper

$

$

Currently unavailable

33

Snapper 663544

GUARD, Chain

$

$

Currently unavailable

34

Snapper 663540

DRIVE SHAFT, Chain

$

$

Currently unavailable

35

Snapper 663660

SPROCKET

$

$

Currently unavailable

36

Snapper 663550

GUARD, Upper Pulley

$

$

Currently unavailable

37

Snapper 663857

SHAFT, Pulley

$

$

Currently unavailable

38

Snapper 663741

TENSIONER, Twin Belt

$

$

Currently unavailable

39

Snapper 663722

BELT GUIDE

$

$

Currently unavailable

40

Snapper 659824

BUSHING, Upper

$

$

Currently unavailable

41

Snapper 654732

KEY, 1/4" Square x 1-1/2" long

$

$

Currently unavailable

42

Snapper 663842

PULLEY, Twin Belt (2MA60)

$

$

Currently unavailable

43

Snapper 663843

PULLEY, Twin Belt (2MA40)

$

$

Currently unavailable

44

Snapper 663844

V-BELT (AX26)

$

$

Currently unavailable

45

Snapper 657989

SPRING, Torsion

$

$

Currently unavailable

46

Snapper 654787

BEARING FLANGE (2 holes)

$

$

Currently unavailable

47

Snapper 656797

HANDLE, Plastic

$

$

Currently unavailable

48

Snapper 663804

GEARBOX

$

$

Currently unavailable

49

Snapper 656135

DRIVE PULLEY (MB65)

$

$

Currently unavailable

50

Snapper 663946

GUARD, Rear Pulley

$

$

Currently unavailable

51

Snapper 663332

DRIVE BELT, SP Models with Kohler Engine (B-57)

$

$

Currently unavailable

Snapper 664024

DRIVE BELT, PL7H Models (B-52)

$

$

Currently unavailable

Snapper 664024

DRIVE BELT, SP Models w/o Kohler Engine (B-52)

$

$

Currently unavailable

52

ROLL PIN, 1/4" Dia. x 1-1/4" long

$

$

Not available

53

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

54

BOLT, 3/4-10 x 2-3/4" Hex

$

$

Not available

55

NUT, 3/4-10 Stover

$

$

Not available

56

ROLL PIN, 3/16" Dia. x 1"

$

$

Not available

57

BOLT, 7/16-14 x 1-3/4" Hex

$

$

Not available

58

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

59

WASHER, 7/16" Lock

$

$

Not available

60

Snapper 7090449

NUT, 7/16-14 Hex

$

$

Currently unavailable

61

BOLT, 7/16-14 x 1-1/4" Hex

$

$

Not available

62

NUT, 7/16-14 Hex Nyloc

$

$

Not available

63

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

64

KNOB, 5/16-18

$

$

Not available

65

Snapper 7090395

WASHER, 5/16" External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

66

NUT, 5/16-18 Stover

$

$

Not available

68

BOLT, 5/16-18 x 2-3/4" Hex

$

$

Not available

69

BOLT, 3/8-16 x 4-1/2" Hex

Note: NOTE: Items 52 thru 70, shown on

$

$

Not available

70

Snapper 7091493

NUT, 5/16-18 Hex Nyloc
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0
