7063006 - Snapper PRO Kit Debris Blower Debris Blower (Part 3) Parts Diagram

PRO Kit Debris Blower

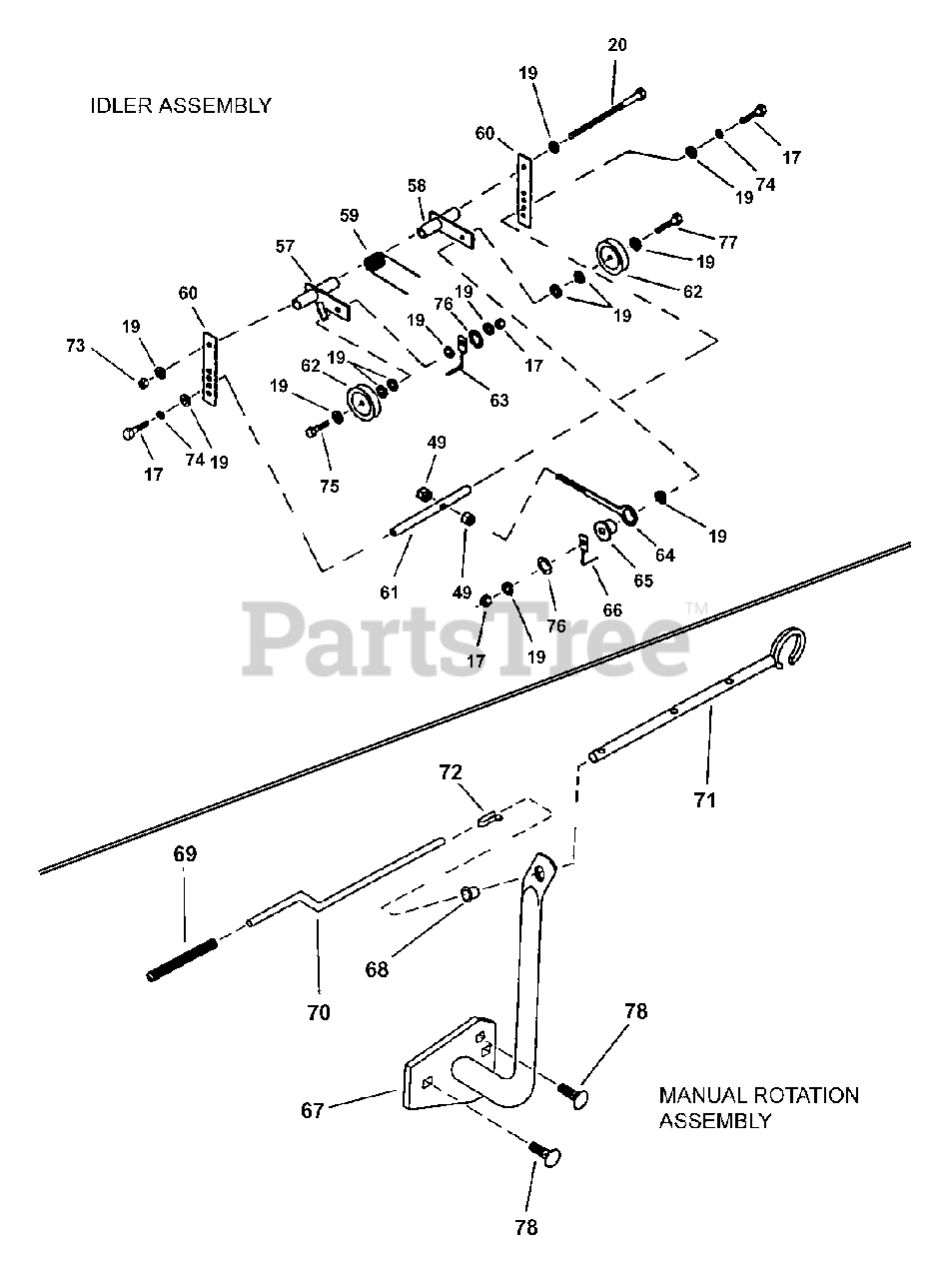

Debris Blower (Part 3) Parts Diagram

  • Title

17

BOLT, 3/8-16 x 1-1/4" Hex

Note: Not part of this kit

$

$

Not available

19

Snapper 7091595

WASHER, 7/16" Flat
(Superseded to 703183)

Note: Not part of this kit

$3.99

$

In Stock, only 2 left!

0

20

BOLT, 3/8-16 x 8-1/2" Hex Head

Note: Not part of this kit

$

$

Not available

49

Snapper 7091493

NUT, 5/16-18 Hex Nyloc
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

Snapper 7063006

KIT, Debris Blower (continued)

Note: (Incl. items 57 thru 72)

$

$

Currently unavailable

57

Snapper 662969

BRACKET, Left Idler (weldment)

$

$

Currently unavailable

58

Snapper 662649

BRACKET, Right Idler (weldment)

$

$

Currently unavailable

59

Snapper 663011

SPRING

$

$

Currently unavailable

60

Snapper 663014

BRACKET, Adjusting

$

$

Currently unavailable

61

Snapper 663038

ROD, Adjusting

$

$

Currently unavailable

62

Snapper 659519

IDLER PULLEY

$

$

Currently unavailable

63

Snapper 663050

BELT GUIDE (short bend)

$

$

Currently unavailable

64

Snapper 663805

EYE BOLT, 5/16-18

$

$

Currently unavailable

65

Snapper 663043

SPACER, Idler

$

$

Currently unavailable

66

Snapper 663051

BELT GUIDE (long bend)

$

$

Currently unavailable

67

Snapper 663962

SUPPORT, Rotation Handle (weldment)

$

$

Currently unavailable

68

Snapper 657390

GROMMET

$

$

Currently unavailable

69

Snapper 656797

GRIP, Handle

$

$

Currently unavailable

70

Snapper 663749

HANDLE, Rotation

$

$

Currently unavailable

71

Snapper 658025

TUBE, Handle

$

$

Currently unavailable

72

Snapper 663600

BUTTON, Snap

$

$

Currently unavailable

73

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Not part of this kit

$3.49

$

In Stock, Qty 20+

0

74

WASHER, 3/8" Lock

Note: Not part of this kit

$

$

Not available

75

Snapper 7090629

BOLT, 3/8-16 x 2-1/4" Hex
(Superseded to 7090629YP)

Note: Not part of this kit

$2.49

$

Usually ships in 2-12 days

0

76

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

Note: Not part of this kit

$4.49

$

In Stock, only 1 left!

0

77

BOLT, 3/8-16 x 2-3/4" Hex

Note: Not part of this kit

$

$

Not available

78

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage

Note: Not part of this kit

$

$

Not available
