7063006 - Snapper PRO Kit Debris Blower Debris Blower (Part 2) Parts Diagram

PRO Kit Debris Blower

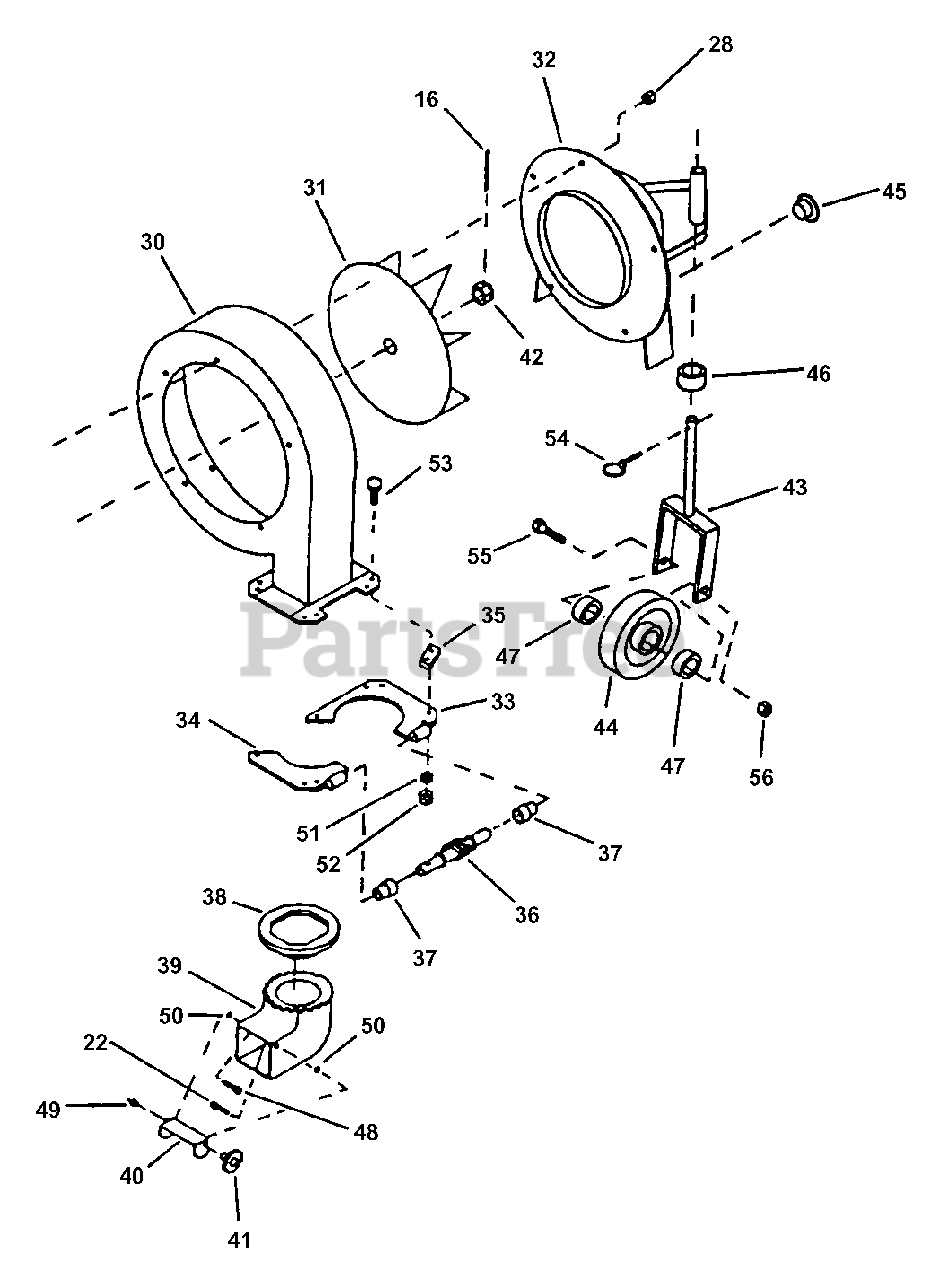

Debris Blower (Part 2) Parts Diagram

  • Title

16

PIN, 3/16" Dia. x 2" Cotter

Note: Not part of this kit

$

$

Not available

22

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703800)

Note: Was 90208 (Not part of this kit)

$3.99

$

In Stock, Qty 7

0

28

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5 or B
(Superseded to 703409)

Note: Was 90585 (Not part of this kit)

$5.49

$

In Stock, Qty 20+

0

Snapper 7063006

KIT, Debris Blower (continued)

Note: (Incl. items 30 thru 47)

$

$

Currently unavailable

30

Snapper 662639

HOUSING, Impeller (weldment)

$

$

Currently unavailable

31

Snapper 662644

IMPELLER (weldment)

$

$

Currently unavailable

32

Snapper 662646

COVER, Intake (weldment)

$

$

Currently unavailable

33

Snapper 663096

BRACKET, Rotation

$

$

Currently unavailable

34

Snapper 661508

PLATE, Retaining

$

$

Currently unavailable

35

Snapper 661498

SPACER, Rotation

$

$

Currently unavailable

36

Snapper 657331

WORM

$

$

Currently unavailable

37

Snapper 657335

BUSHING, Plastic, 1-5/16" long

$

$

Currently unavailable

38

Snapper 657338

RING, Nylon

$

$

Currently unavailable

39

Snapper 662672

NOZZLE, Air Blast

$

$

Currently unavailable

40

Snapper 662734

DEFLECTOR

$

$

Currently unavailable

41

Snapper 657309

KNOB, 5/16"

$

$

Currently unavailable

42

Snapper 654988

NUT, 1" Castle

$

$

Currently unavailable

43

Snapper 663053

SUPPORT, Wheel (weldment)

$

$

Currently unavailable

44

Snapper 660953

ASSEMBLY, Wheel & Tire

$

$

Currently unavailable

45

Snapper 662825

CAP

$

$

Currently unavailable

46

Snapper 662737

SPACER (for wheel support)

$

$

Currently unavailable

47

Snapper 662822

SPACER (for wheel)

$

$

Currently unavailable

48

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 7091493

NUT, 5/16-18 Hex Nyloc
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

50

WASHER, 11/32" Diameter

$

$

Not available

51

WASHER, 1/4" Lock

$

$

Not available

52

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

53

BOLT, 1/4-20 x 1" Hex Head

$

$

Not available

54

LINCHPIN, 5/16" Diameter

$

$

Not available

55

BOLT, 5/8-18 x 5-1/2" Hex

$

$

Not available

56

NUT, 5/8-18 Hex Nyloc

$

$

Not available

Snapper 7063006

KIT, Debris Blower (continued)

Note: (Incl. items 57 thru 72)

$

$

Currently unavailable
