7063006 - Snapper PRO Kit Debris Blower Debris Blower (Part 1) Parts Diagram

PRO Kit Debris Blower

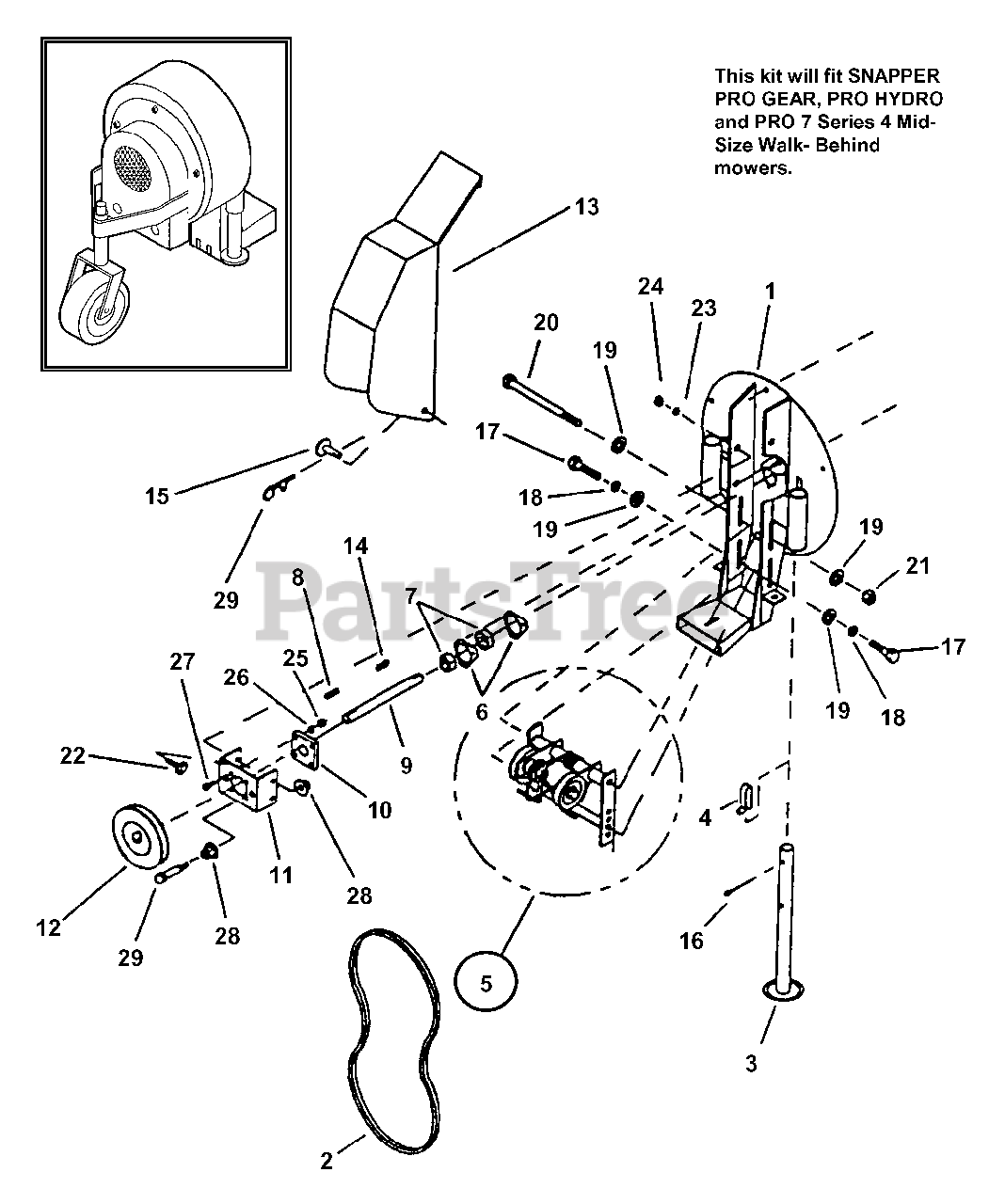

Debris Blower (Part 1) Parts Diagram

  • Title

Snapper 7063006

KIT, Debris Blower

Note: (Incl. items 1 thru 15)

$

$

Currently unavailable

1

Snapper 662643

HOUSING

$

$

Currently unavailable

2

Snapper 656069

BELT, SP Models with Kohler Engine

$

$

Currently unavailable

Snapper 663099

BELT, PL7H Models

$

$

Currently unavailable

Snapper 663099

BELT, Models without Kohler Engine

$

$

Currently unavailable

3

Snapper 662648

STAND, Parking

$

$

Currently unavailable

4

Snapper 663601

SNAP BUTTON

$

$

Currently unavailable

5

ASSEMBLY, Idler

Note: See "Debris Blower (Part 5 of 6)"

$

$

Not available

6

Snapper 656589

FLANGE, Bearing

$

$

Currently unavailable

7

Snapper 654532

BEARING with Locking Collar

$

$

Currently unavailable

8

Snapper 655379

KEY, 1/4" Square x 1" long

$

$

Currently unavailable

9

Snapper 662806

SHAFT

$

$

Currently unavailable

10

Snapper 662956

BEARING

$

$

Currently unavailable

11

Snapper 662713

BOX, Reduction

$

$

Currently unavailable

12

Snapper 663851

PULLEY, MB50

$

$

Currently unavailable

13

Snapper 662710

COVER, Belt

$

$

Currently unavailable

14

Snapper 660924

KEY, 1/4" Square x 2-1/2" long

$

$

Currently unavailable

15

Snapper 662926

COVER PIN, 1/4" Dia. x 1/2" long

$

$

Currently unavailable

16

PIN, 3/16" Dia. x 2" Cotter

Note: Not part of this kit

$

$

Not available

17

BOLT, 3/8-16 x 1-1/4" Hex

Note: Not part of this kit

$

$

Not available

18

WASHER, 3/8" Lock

Note: Not part of this kit

$

$

Not available

19

Snapper 7091595

WASHER, 7/16" Flat
(Superseded to 703183)

Note: Not part of this kit

$3.99

$

In Stock, only 2 left!

0

20

BOLT, 3/8-16 x 8-1/2" Hex Head

Note: Not part of this kit

$

$

Not available

21

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130 (Not part of this kit)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703800)

Note: Was 90208 (Not part of this kit)

$3.99

$

In Stock, only 4 left!

0

23

WASHER, 5/16" Lock

Note: Not part of this kit

$

$

Not available

24

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5 or B
(Superseded to 7091511SM)

Note: Was 90196 (Not part of this kit)

$3.49

$

In Stock, Qty 14

0

25

Snapper 7090449

NUT, 7/16-14

Note: Not part of this kit

$

$

Currently unavailable

26

WASHER, 7/16" Lock

Note: Not part of this kit

$

$

Not available

27

BOLT, 7/16-14 x 1-1/4" Hex

Note: Not part of this kit

$

$

Not available

28

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5 or B
(Superseded to 703409)

Note: Was 90585 (Not part of this kit)

$5.49

$

In Stock, Qty 20+

0

29

HAIR PIN, 2,5mm x 40mm

Note: Not part of this kit

$

$

Not available
