7063004 - Snapper 40" Snow Blower PRO Kit Two Stage Snowblower 40" (Part 3) Parts Diagram

40" Snow Blower PRO Kit

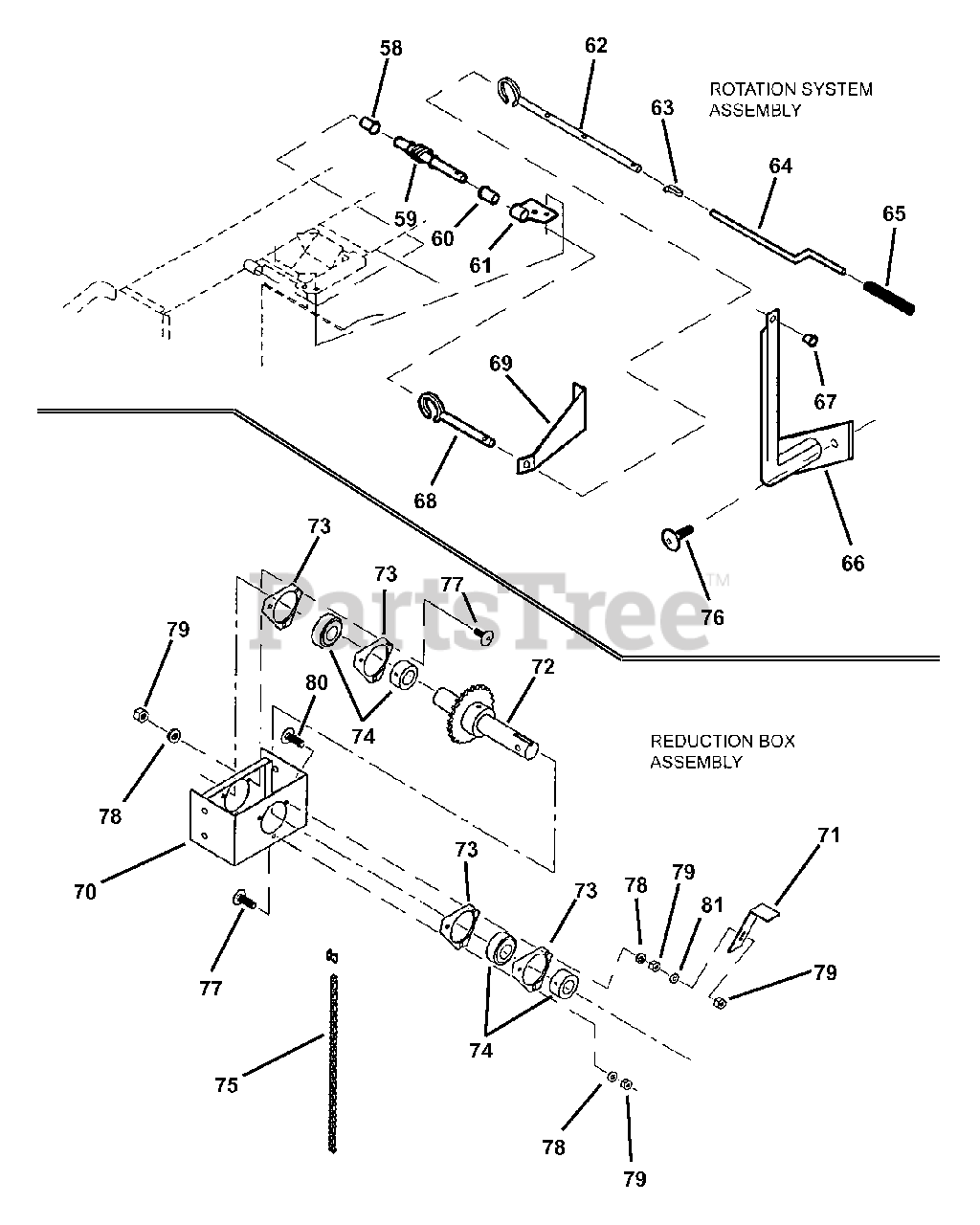

Two Stage Snowblower 40" (Part 3) Parts Diagram

  • Title

Snapper 7063004

KIT, 40" Two Stage Snowblower (continued)

Note: (Incl. items 58 thru 75)

$

$

Currently unavailable

58

Snapper 657335

BUSHING, 1-5/16" long (plastic)

$

$

Currently unavailable

59

Snapper 657331

WORM, Rotation

$

$

Currently unavailable

60

Snapper 657336

BUSHING, 1-11/16" long (plastic)

$

$

Currently unavailable

61

Snapper 657329

SUPPORT, Rotation Worm

$

$

Currently unavailable

62

Snapper 664006

TUBE, Handle

$

$

Currently unavailable

63

Snapper 663600

BUTTON, Snap

$

$

Currently unavailable

64

Snapper 664007

HANDLE, Rotation

$

$

Currently unavailable

65

Snapper 656797

GRIP, Handle

$

$

Currently unavailable

66

Snapper 663964

SUPPORT, Rotation Handle

$

$

Currently unavailable

67

Snapper 657390

GROMMET

$

$

Currently unavailable

68

Snapper 663973

TUBE, Extension (for models with Briggs Vanguard engine)

$

$

Currently unavailable

69

Snapper 663974

BRACKET, Support (for models with Briggs Vanguard engine)

$

$

Currently unavailable

70

Snapper 662880

REDUCTION BOX

$

$

Currently unavailable

71

Snapper 663054

GUIDE, Pulley

$

$

Currently unavailable

72

Snapper 657251

ASSEMBLY, Sprocket with Shaft

$

$

Currently unavailable

73

Snapper 656589

FLANGE, Bearing

$

$

Currently unavailable

74

Snapper 657294

BEARING w/Set Screws

$

$

Currently unavailable

75

Snapper 663247

CHAIN

$

$

Currently unavailable

76

BOLT, 3/8-16 x 1-1/4" Square Neck Carriage

$

$

Not available

77

Snapper 7090316

BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5
(Superseded to 703225)

Note: Was 90605

$3.99

$

In Stock, Qty 20+

0

78

WASHER, 5/16" Lock

$

$

Not available

79

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5 or B
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

80

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 7

0

81

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0
