7063002 - Snapper Quick Hitch PRO Kit Quick Hitch Parts Diagram

Quick Hitch PRO Kit

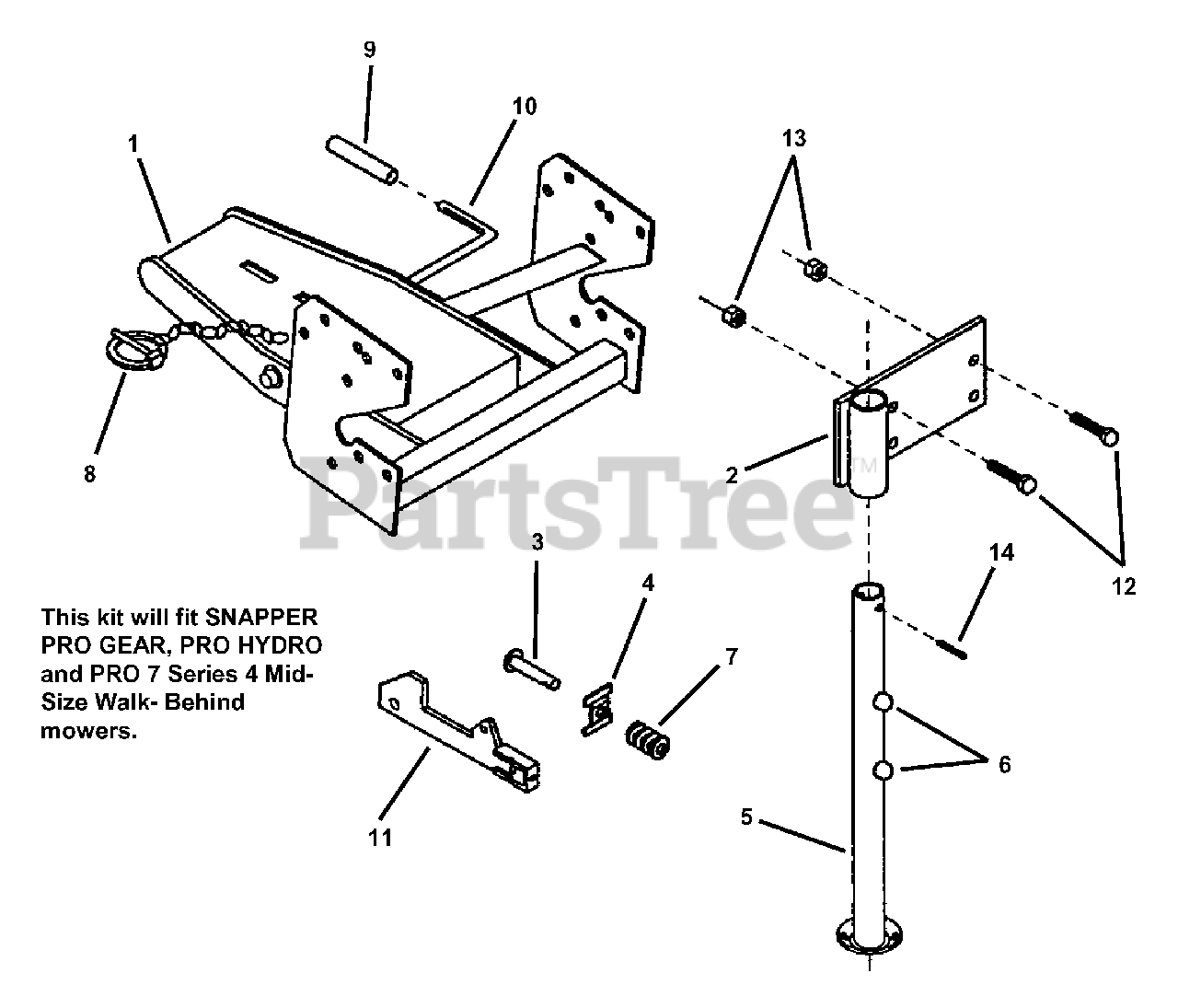

Quick Hitch Parts Diagram

  • Title

Snapper 7063002

KIT, Quick Hitch

Note: (Incl. items 1 thru 11; 12 thru 14 not part of kit)

$

$

Currently unavailable

1

Snapper 663854

HITCH, Male Quick

$

$

Currently unavailable

2

Snapper 664014

SUPPORT, Parking Stand

$

$

Currently unavailable

3

Snapper 657384

PIN, 1/4" x 1-11/16" Clevis

$

$

Currently unavailable

4

Snapper 657383

PLATE, Spring

$

$

Currently unavailable

5

Snapper 664022

STAND, Parking

$

$

Currently unavailable

6

Snapper 663601

BUTTON, Snap

$

$

Currently unavailable

7

Snapper 657385

SPRING

$

$

Currently unavailable

8

Snapper 657632

ASSEMBLY, Chain & Linch Pin

$

$

Currently unavailable

9

Snapper 656797

GRIP, Handle

$

$

Currently unavailable

10

Snapper 664028

LEVER, Male Hitch

$

$

Currently unavailable

11

Snapper 657382

LATCH

$

$

Currently unavailable

12

Snapper 7091304

BOLT, 3/8-16 x 1" Hex Head, Grade 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

13

Snapper 7091619

NUT, 3/8-16 Hex Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

14

PIN, 5/32 x 2" Cotter

$

$

Not available
