7061915 - Snapper 24" & 36" Yard Cruiser Poly Roller Poly Roller 24" x 36" Parts Diagram

24" & 36" Yard Cruiser Poly Roller

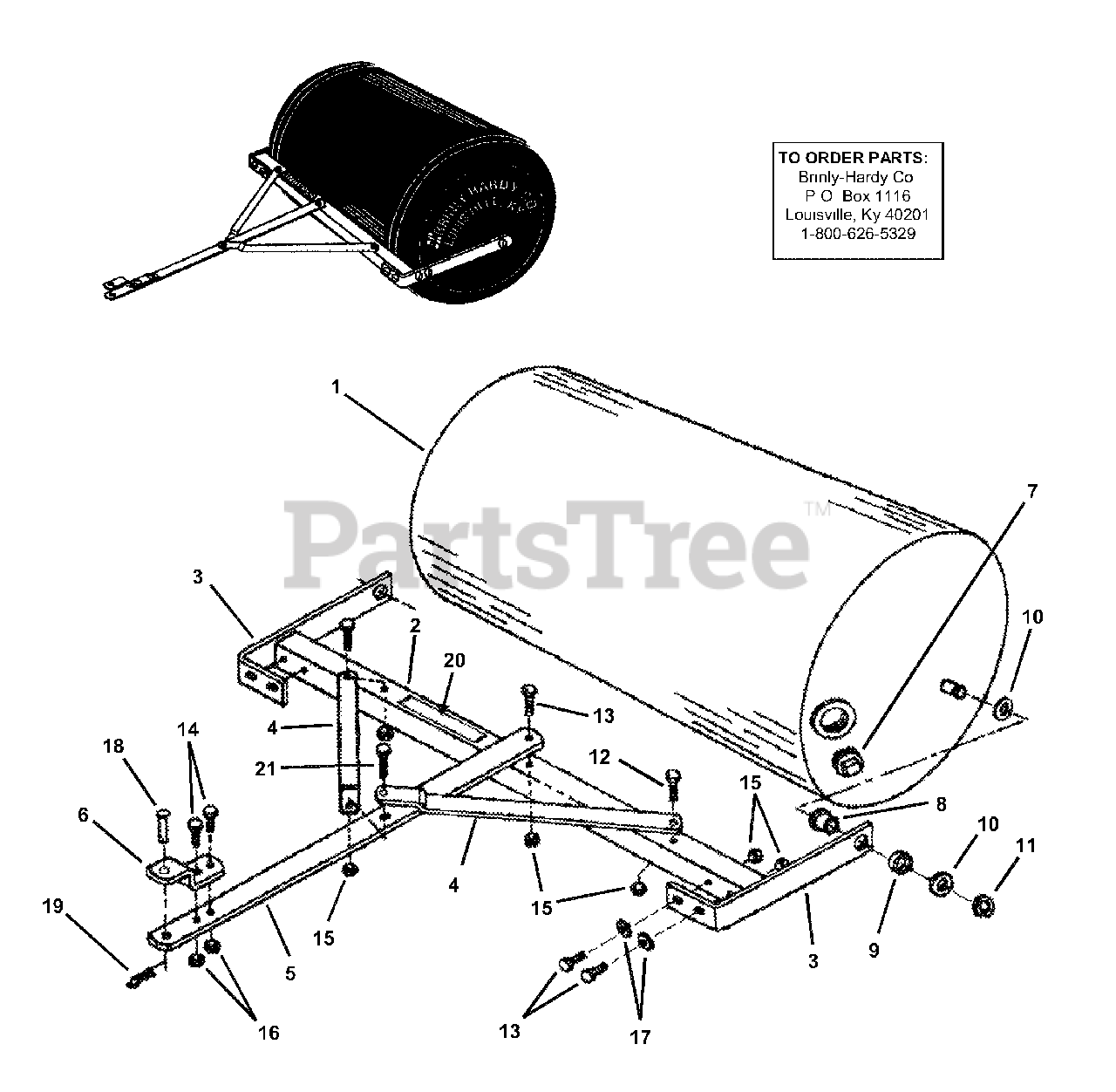

Poly Roller 24" x 36" Parts Diagram

  • Title
--

Snapper 7061915

KIT, 24" X 36" Poly Roller

Note: (Includes items 1 thru 21)

$

$

Currently unavailable

1

Snapper B5126

DRUM, Roller

$

$

Currently unavailable

2

Snapper B-5130-10

BAR, Scraper

$

$

Currently unavailable

3

Snapper B-5131-10

BAR, Side

$

$

Currently unavailable

4

Snapper B-5132-10

BRACE, Frame

$

$

Currently unavailable

5

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

8

Snapper D279

BEARING

$

$

Currently unavailable

9

Snapper B-5154-01

SPACER, Bearing

$

$

Currently unavailable

10

Snapper V886

WASHER, Machine Bushing

$

$

Currently unavailable

11

Snapper B4307

"E" RETAINING RING Type 1

$

$

Currently unavailable

12

Snapper 1M1216P

BOLT, 3/8 x 1" Hex

$

$

Currently unavailable

13

Snapper 1M1220P

BOLT, 3/8 x 1-1/4" Hex

$

$

Currently unavailable

14

Snapper 1M1020P

BOLT, 5/16 x 1-1/4" Hex

$

$

Currently unavailable

15

Snapper B4820

NUT, 3/8" Nylon Insert

$

$

Currently unavailable

16

Snapper B4786

NUT, 5/16" Nylon Insert

$

$

Currently unavailable

17

Snapper 45M1313P

WASHER, 3/8" Plain

$

$

Not available

18

Snapper B5191

HITCH PIN, 1/2 x 2-3/4"

$

$

Currently unavailable

19

Snapper D146P

HAIRPIN COTTER, 1/8"

$

$

Currently unavailable

20

Snapper B5434

DECAL, Logo

$

$

Currently unavailable

21

Snapper 1M1224P

BOLT, 3/8 x 1-1/2"

$

$

Currently unavailable
