7061914 - Snapper 36" Yard Cruiser Dethatcher Attachment Dethatcher 36" Parts Diagram

36" Yard Cruiser Dethatcher Attachment

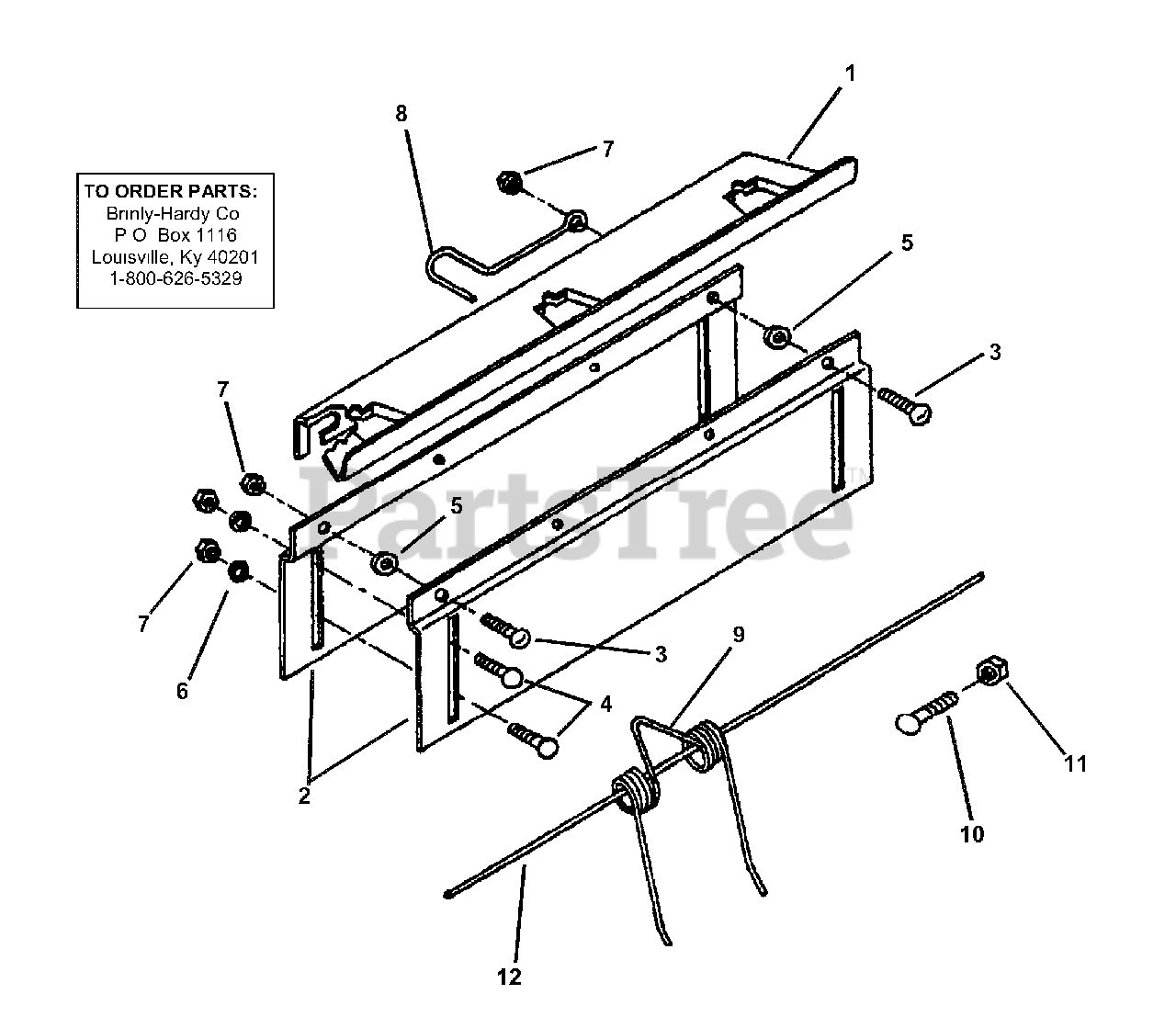

Dethatcher 36" Parts Diagram

  • Title
--

Snapper 7061914

KIT, 36" Dethatcher
(Superseded to 7061914YP)

Note: (Included items 1 thru 12)

$182.99

$

Usually ships in 2-12 days

0

1

Snapper R-1885-10

SUPPORT, Tine

$

$

Currently unavailable

2

Snapper R-1886-10

HOLDER, Tine Support

$

$

Currently unavailable

3

Snapper 20M0812P

SCREW, 1/4 x 3/4" Machine

$

$

Currently unavailable

4

Snapper 10M0816P

BOLT, 1/4 x 1" Carriage

$

$

Currently unavailable

5

Snapper R1932

SPACER

$

$

Currently unavailable

6

Snapper 45M0909P

WASHER, 1/4" Flat

$

$

Currently unavailable

7

Snapper B4785

NUT, 1/4" Nylon Insert

$

$

Currently unavailable

8

Snapper R1894

HOOK SPRING

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Snapper 10M1020P

BOLT, 5/16 x 1-1/4" Carriage

$

$

Currently unavailable

11

Snapper B1674P

NUT, 5/16" Hex Lock

$

$

Currently unavailable

12

Snapper R1901

SAFETY WIRE

$

$

Currently unavailable
