7061911 - Snapper 36" Yard Cruiser Aerator Attachment Lawn Aerator Parts Diagram

36" Yard Cruiser Aerator Attachment

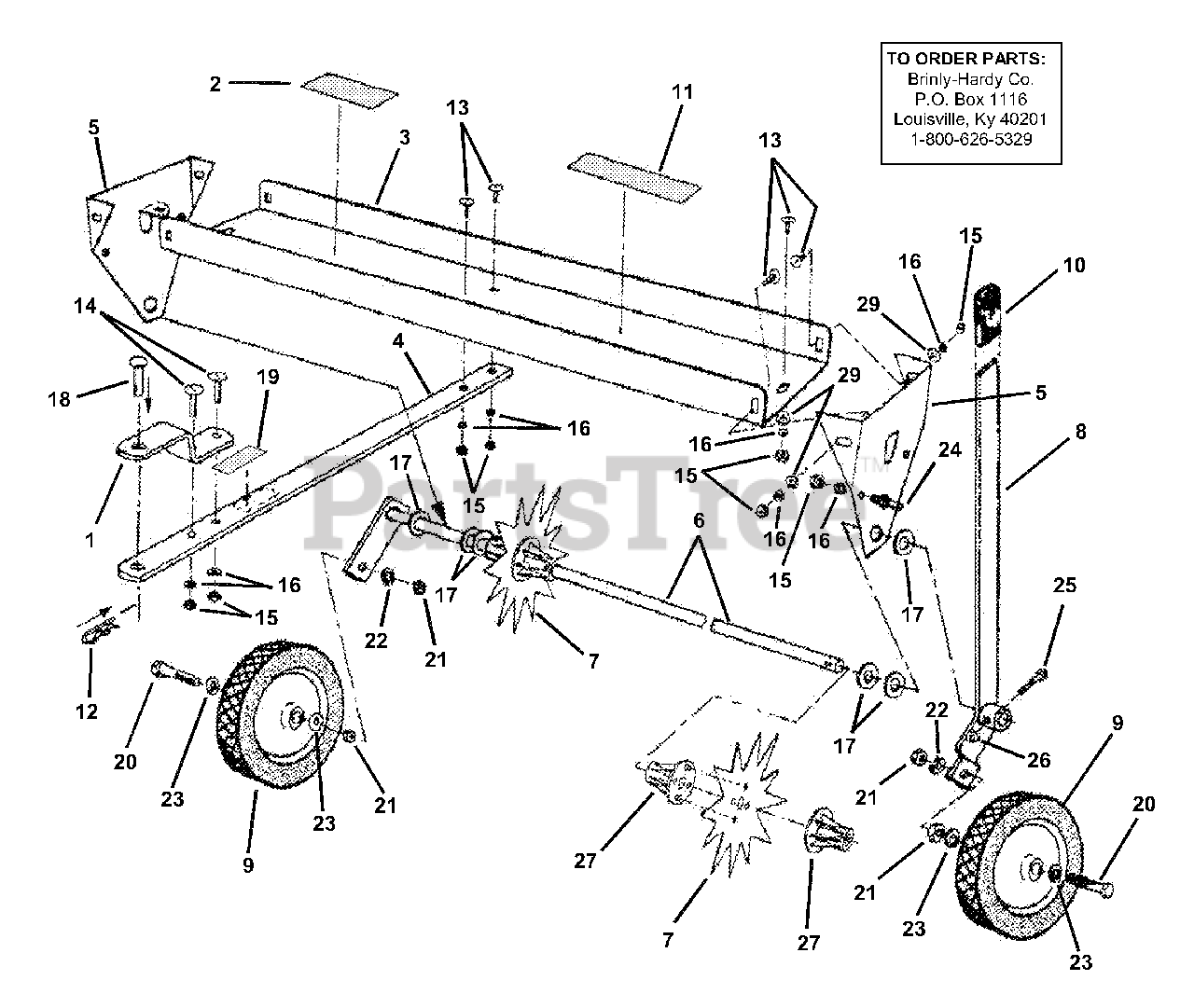

Lawn Aerator Parts Diagram

  • Title
--

Snapper 7061911

KIT, 36" Lawn Aerator

Note: (Includes items 1 thru 29)

$

$

Currently unavailable

1

Snapper R-821-10

CLEVIS, Drawbar

$

$

Currently unavailable

2

Snapper B5435

DECAL, Logo

$

$

Currently unavailable

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Snapper B-4892-10

PANEL, End

$

$

Currently unavailable

6

Snapper B-4900-10

ASSEMBLY, Axle

$

$

Currently unavailable

$

$

Currently unavailable

8

Snapper B-4888-10

ASS'Y, Handle

$

$

Currently unavailable

9

Snapper R891

WHEEL

$

$

Currently unavailable

10

Snapper B4867

GRIP, handle
(Superseded to B4867GS)

$91.99

$

Usually ships in 2-12 days

0

11

Snapper B1946

DECAL, Caution

$

$

Currently unavailable

12

Snapper D146P

HAIRPIN COTTER

$

$

Currently unavailable

13

Snapper 20M1012P

SCREW, 5/16 x 3/4" Round Head

$

$

Currently unavailable

14

Snapper 20M1016P

SCREW, 5/16 x 1" Round Head

$

$

Currently unavailable

15

Snapper 30M1000P

NUT, 5/16" Hex

$

$

Currently unavailable

16

Snapper 40M1000P

WASHER, 5/16" Lock

$

$

Currently unavailable

17

Snapper B5456

WASHER, 5/8" (Thick)

$

$

Currently unavailable

18

Snapper B3861

PIN, 1/2 x 2-1/4" Drawbar
(Superseded to CB3861GS)

$229.99

$

Usually ships in 2-12 days

0

19

Snapper B3922

DECAL, Caution

$

$

Currently unavailable

20

Snapper 1M1648P

BOLT, 1/2 x 3" Hex

$

$

Currently unavailable

21

Snapper 30M1600P

NUT, 1/2" Hex

$

$

Currently unavailable

22

Snapper 40M1600P

WASHER, 1/2" Lock

$

$

Not available

23

Snapper 45M1717P

WASHER, 1/2" Flat

$

$

Not available

24

Snapper B-3307-S

PIN, Transport Lock

$

$

Currently unavailable

25

Snapper 2M0820P

BOLT, 1/4 x 1-1/4" Hex

$

$

Currently unavailable

26

Snapper B1673P

NUT, 1/4" Hex Lock

$

$

Currently unavailable

27

Snapper B5425

SPACER/BEARING HALF

$

$

Currently unavailable

28

Snapper B4768

WASHER, 5/8" (Thin)

$

$

Currently unavailable

29

Snapper 45M1111P

WASHER, 5/16" Flat

$

$

Not available
