7061888 - Snapper 38" LT Twin Grass Catcher Twin Catcher Parts Diagram

38" LT Twin Grass Catcher

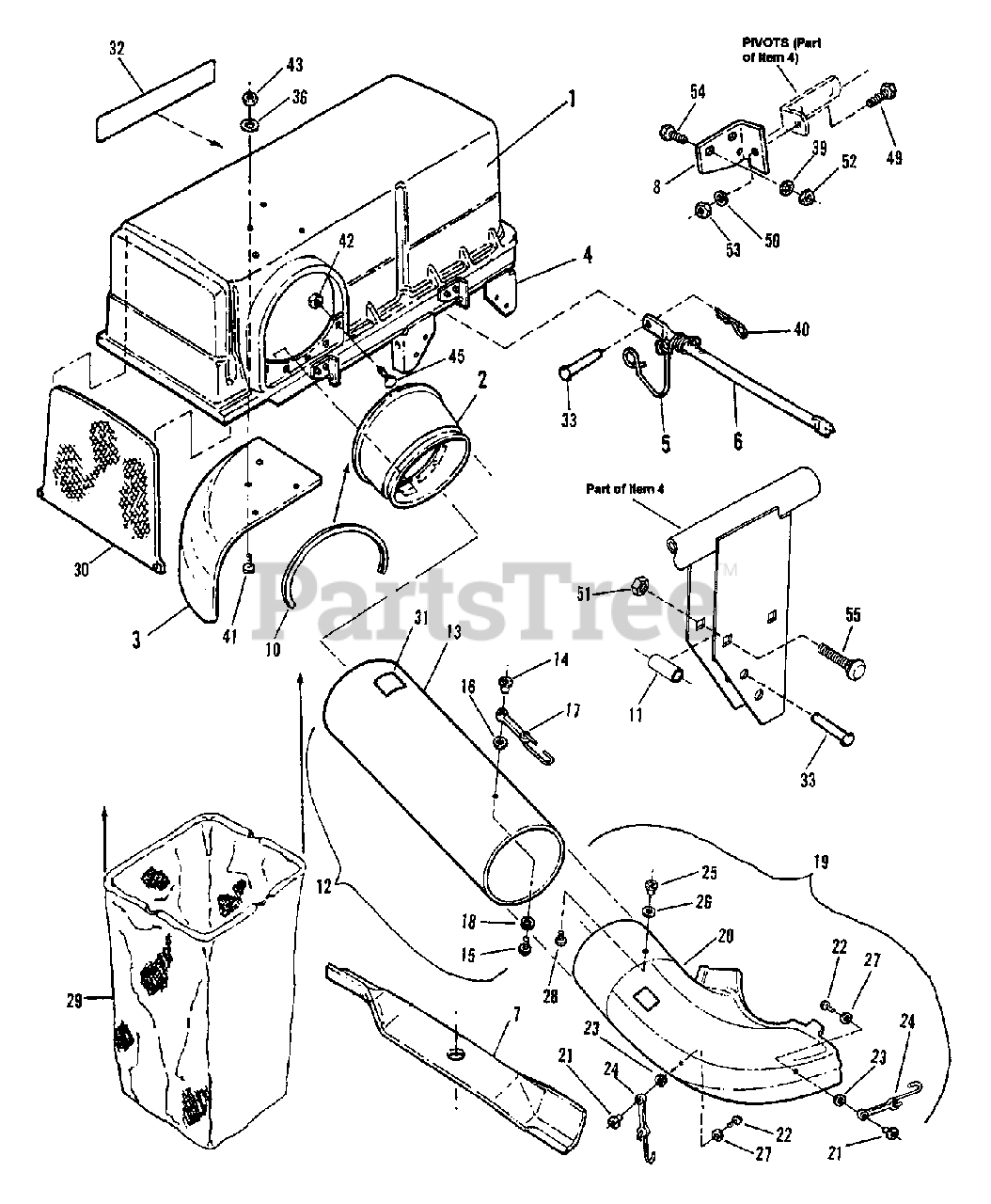

Twin Catcher Parts Diagram

  • Title

Snapper 7061888

KIT, Twin Bag Grass Catcher

Note: (Was #61248) (Includes Items 1 Thru 59)

$

$

Currently unavailable

1

Snapper 7059626

COVER Assembly
(Superseded to 7059626YP)

$512.99

$

Usually ships in 2-12 days

0

2

Snapper 7035706

INLET
(Superseded to 7035706YP)

$202.99

$

Usually ships in 2-12 days

0

3

Snapper 7019725

SECTOR (Inside top baffle)
(Superseded to 7019725YP)

$87.99

$

Usually ships in 2-12 days

0

4

Snapper 7059951

MOUNTING Assembly
(Superseded to 7059951YP)

Note: (Includes following indented item)

$541.99

$

Usually ships in 2-12 days

0

Snapper 7036263

HOLDER, Inlet
(Superseded to 7036263YP)

$18.99

$

Usually ships in 2-12 days

0

5

Snapper 7051407

SPRING & Hook Assembly
(Superseded to 7051407YP)

$37.99

$

In Stock, only 1 left!

0

6

Snapper 7036073

BRACE
(Superseded to 7036073YP)

$48.99

$

Usually ships in 2-12 days

0

7

Snapper 7036547

ASSEMBLY, Blade
(Superseded to 7036547YP)

Note: Was 54514 (Includes #44686 Decal)

$30.99

$

Usually ships in 2-12 days

0

8

Snapper 7038087

HINGE, Top
(Superseded to 7038087YP)

$7.49

$

Usually ships in 2-12 days

0

?9

Snapper 7044726

BAFFLE
(Superseded to 7044726YP)

Note: For location, see Instruction #42685, included in 61888 Kit.

$66.99

$

Usually ships in 2-12 days

0

10

Snapper 7044685

SEAL
(Superseded to 7044685YP)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 7023797

PAD, Bumper
(Superseded to 7023797YP)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7054342

ASSEMBLY, Tube/Strap

Note: (Includes Indented Items & Item 31)

$

$

Currently unavailable

13

Snapper 7035707

TUBE, Grass
(Superseded to 7035707YP)

$152.99

$

Usually ships in 2-12 days

0

14

Snapper 7036404

NUT, #10-24 Weld
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7036415

SCREW, #10-24 x 5/8" Pan Head
(Superseded to 7036415SM)

$3.99

$

In Stock, only 2 left!

0

16

Snapper 7036422

WASHER, 3/16 Flat
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

17

Snapper 7036433

ASSEMBLY, Strap Mounting
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

18

Snapper 7091552

WASHER, 7/32 Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 16

0

19

Snapper 7054388

ASSEMBLY, Adapter/Strap
(Superseded to 7058658YP)

Note: (Includes Indented Items)

$228.99

$

Usually ships in 2-12 days

0

20

Snapper 7058658

ADAPTER
(Superseded to 7058658YP)

Note: Was 59469

$228.99

$

Usually ships in 2-12 days

0

21

Snapper 7036404

NUT, #10-24 Weld
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7036415

SCREW, #10-24 x 5/8" Pan Head
(Superseded to 7036415SM)

$3.99

$

In Stock, only 2 left!

0

23

Snapper 7036422

WASHER, 3/16 Flat
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

24

Snapper 7036433

ASSEMBLY, Strap Mounting
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

25

Snapper 7036543

NUT, 5/16-18 "T"
(Superseded to 7036543SM)

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 7090188

WASHER, 11/32 Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7091552

WASHER, 7/32 Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 16

0

28

Snapper 7091833

SCREW, 5/16-18 x 5/8" Pan Head
(Superseded to 7091833SM)

Note: Was 91918

$4.49

$

In Stock, only 1 left!

0

29

Snapper 7051930

ASSEMBLY, Bag

Note: (Includes Indented Items)

$

$

Not available

Snapper 7019250

BAG, Grass Catcher
(Superseded to 7019250YP)

$81.99

$

In Stock, Qty 9

0

Snapper 7019965

ROD, Bag Support
(Superseded to 7019965YP)

$87.99

$

Usually ships in 2-12 days

0

Snapper 7014456

CONNECTOR
(Superseded to 7014456YP)

$5.99

$

Usually ships in 2-12 days

0

30

Snapper 7057652

ASSEMBLY, Screen

Note: (Includes Indented Items)

$

$

Currently unavailable

Snapper 7019731

SCREEN
(Superseded to 7019731YP)

$32.99

$

Usually ships in 2-12 days

0

Snapper 7019732

FRAME, Screen
(Superseded to 7019732YP)

$25.99

$

Usually ships in 2-12 days

0

31

Snapper 7011910

DECAL, Caution
(Superseded to 7011910YP)

$11.99

$

Usually ships in 2-12 days

0

32

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

$13.99

$

In Stock, only 4 left!

0

Snapper 7072240

HARDWARE BAG
(Superseded to 7072240YP)

Note: Was 61889 (Includes Indented Items & #60480 Air Lift Kit)

$136.99

$

Usually ships in 2-12 days

0

33

Snapper 7029841

PIN, 5/16 x 11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, only 3 left!

0

?34

Snapper 7036543

NUT, 5/16-18 "T"
(Superseded to 7036543SM)

Note: For location, see Instruction #42685, included in 61888 Kit.

$2.99

$

Usually ships in 2-12 days

0

?35

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492 (For location, see Instruction #42685, included in 61888 Kit.)

$4.49

$

In Stock, only 3 left!

0

36

Snapper 7091294

WASHER, 1/4 Flat (Grade 5)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

?37

Snapper 7090188

WASHER, .11/32 Flat (Grade 5)
(Superseded to 703350)

Note: Was 91296 (For location, see Instruction #42685, included in 61888 Kit.)

$4.49

$

In Stock, only 2 left!

0

?38

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

Note: For location, see Instruction #42685, included in 61888 Kit.

$3.99

$

In Stock, Qty 12

0

39

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 7

0

40

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

41

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 4 left!

0

42

Snapper 7091545

NUT, 1/4-20 Flange Lock
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

43

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

?44

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade 5 or B
(Superseded to 703164)

Note: For location, see Instruction #42685, included in 61888 Kit.

$3.49

$

In Stock, Qty 20+

0

45

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

?46

Snapper 7091833

SCREW, 5/16-18 x 5/8" Pan Head Machine
(Superseded to 7091833SM)

Note: Was 91833 (For location, see Instruction #42685, included in 61888 Kit.)

$4.49

$

In Stock, only 1 left!

0

?47

Snapper 7091318

BOLT, 5/16-18 x 3/4" Hex Cap, Grade 5
(Superseded to 704287)

Note: For location, see Instruction #42685, included in 61888 Kit.

$3.99

$

In Stock, Qty 9

0

?48

Snapper 7090188

WASHER, 11/32" Flat (Grade 5)
(Superseded to 703350)

Note: Was 91296 (For location, see Instruction #42685, included in 61888 Kit.)

$4.49

$

In Stock, only 2 left!

0

49

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap, Grade 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

50

Snapper 7091315

WASHER, 5/16 "Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

51

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

52

Snapper 7090095

NUT, 1/4-28 Hex, Grade 5 or B
(Superseded to 7090095FS)

Note: Was 91605

$3.49

$

Usually ships in 2-12 days

0

53

Snapper 7091606

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

54

Snapper 7091611

SCREW, 1/4-28 x 3/4" Hex Head Cap
(Superseded to 7091611YP)

$3.49

$

Usually ships in 2-12 days

0

55

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Carriage, Grade 5
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

Snapper 7060480

KIT, Air Lift
(Superseded to 7060480SM)

Note: (Includes Indented Items)

$

$

Not available

?56

Snapper 7037723

LIFTS, Air
(Superseded to 7037723BMYP)

Note: For location, see Instruction #42685, included in 61888 Kit.

$

$

Not available

?57

Snapper 7090228

SCREW, 5/16-24 x 21/32" Machine
(Superseded to 7090228SM)

Note: For location, see Instruction #42685, included in 61888 Kit.

$5.49

$

In Stock, Qty 20+

0

?58

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

Note: For location, see Instruction #42685, included in 61888 Kit.

$4.49

$

In Stock, Qty 20+

0

?59

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223, For location, see Instruction #42685, included in 61888 Kit.

$3.99

$

In Stock, Qty 20+

0
