7061886 - Snapper 38" Single Grass Catcher Single Catcher Parts Diagram

38" Single Grass Catcher

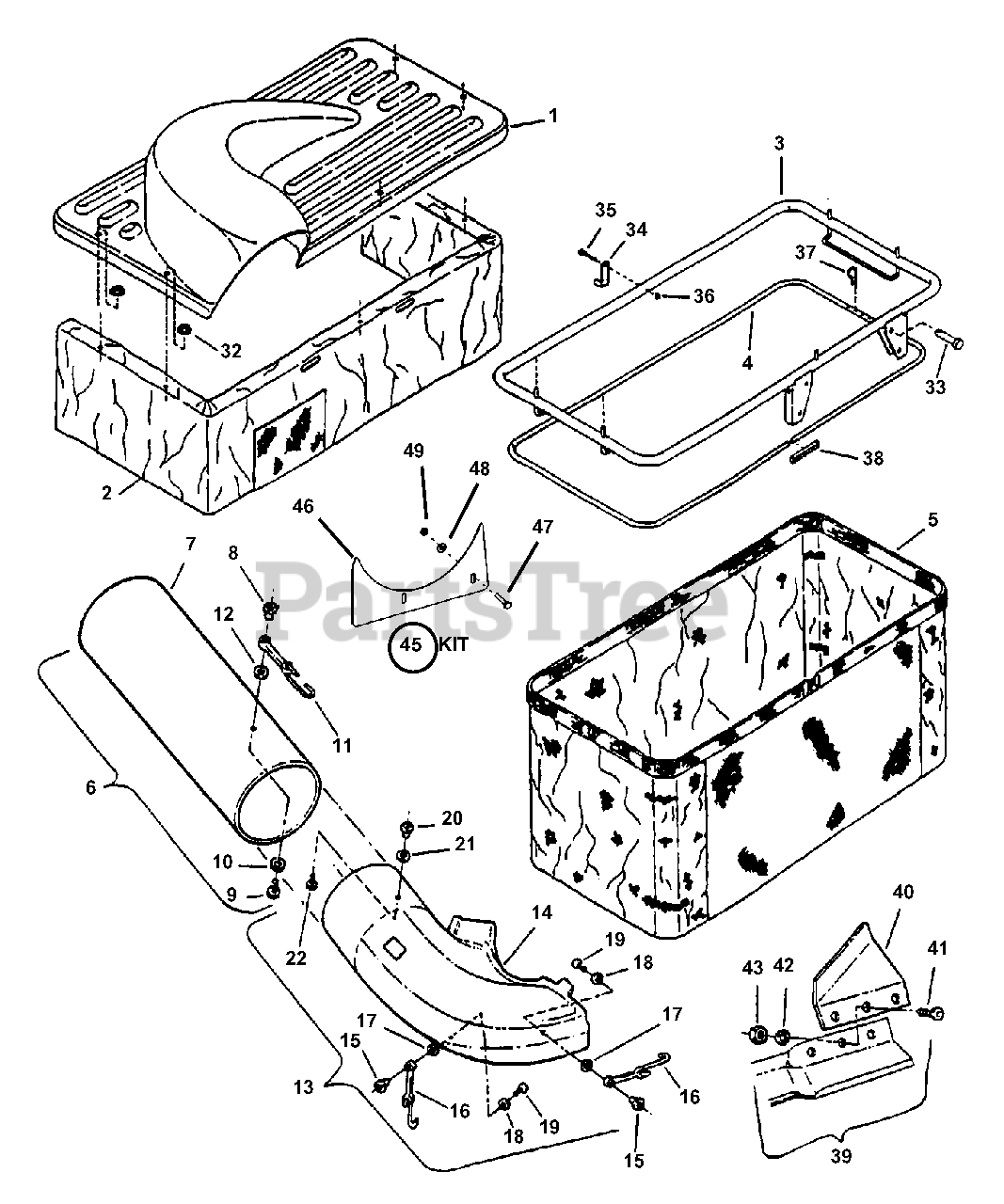

Single Catcher Parts Diagram

  • Title
--

Snapper 7061886

KIT, Single Bag Grass Catcher

Note: (Incl. Items 1 thru 45)

$

$

Currently unavailable

1

Snapper 7051948

TOP, Container
(Superseded to 7501833YP)

Note: (Includes #11910 Decal)

$

$

Not available

2

Snapper 7016108

SKIRT, Dust
(Superseded to 7016108YP)

$39.99

$

In Stock, only 4 left!

0

3

Snapper 7047973

FRAME
(Superseded to 7047973YP)

$204.99

$

Usually ships in 2-12 days

0

4

Snapper 7037758

ROD, Bag
(Superseded to 7057248YP)

$

$

Not available

5

Snapper 7024819

BAG, Grass Catcher
(Superseded to 7024819YP)

Note: Was 19251

$

$

Not available

--

Snapper 7044726

BAFFLE
(Superseded to 7044726YP)

Note: For location, see Instruction Sheet #42686, included in 61886 Kit.

$66.99

$

Usually ships in 2-12 days

0

6

Snapper 7054395

ASSEMBLY, Tube/Strap

Note: (Includes Indented Items)

$

$

Currently unavailable

7

Snapper 7039478

TUBE, Grass
(Superseded to 7039478YP)

$91.99

$

Usually ships in 2-12 days

0

8

Snapper 7036404

NUT, #10-24 Weld
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7036415

SCREW, #10-24 x 5/8" Pan Head
(Superseded to 7036415SM)

$3.99

$

In Stock, only 2 left!

0

10

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 14

0

11

Snapper 7036433

ASSEMBLY, Strap Mounting
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

12

Snapper 7036422

WASHER, 3/16" Flat
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

13

Snapper 7054388

ASSEMBLY, Adapter/Strap
(Superseded to 7058658YP)

Note: (Includes Indented Items)

$228.99

$

Usually ships in 2-12 days

0

14

Snapper 7058658

ADAPTER
(Superseded to 7058658YP)

Note: Was 59469

$228.99

$

Usually ships in 2-12 days

0

15

Snapper 7036404

NUT, #10-24 Weld
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7036433

ASSEMBLY, Strap Mounting
(Superseded to 7036433SM)

$31.99

$

In Stock, only 1 left!

0

17

Snapper 7036422

WASHER, 3/16" Flat
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

18

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 14

0

19

Snapper 7036415

SCREW, #10-24 x 5/8" Pan Head
(Superseded to 7036415SM)

$3.99

$

In Stock, only 2 left!

0

20

Snapper 7036543

NUT, 5/16-18 "T"
(Superseded to 7036543SM)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

22

Snapper 7091833

SCREW, 5/16-18 x 5/8" Pan Head
(Superseded to 7091833SM)

Note: Was 91918

$4.49

$

In Stock, only 1 left!

0

--

Snapper 7036547

ASSEMBLY, Blade
(Superseded to 7036547YP)

Note: Was 54514 (Includes 4-4686 Decal); For location, see Instruction Sheet #42686, included in 61886 Kit.

$30.99

$

Usually ships in 2-12 days

0

--

Snapper 7061887

HARDWARE BAG (Not shown)

Note: (Includes Indented Items)

$

$

Not available

--

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492 (For location, see Instruction Sheet #42686, included in 61886 Kit.)

$4.49

$

In Stock, only 3 left!

0

--

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

Note: For location, see Instruction Sheet #42686, included in 61886 Kit.

$3.99

$

In Stock, Qty 7

0

--

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade B or 5
(Superseded to 703164)

Note: For location, see Instruction Sheet #42686, included in 61886 Kit.

$3.49

$

In Stock, Qty 18

0

--

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 704287)

Note: For location, see Instruction Sheet #42686, included in 61886 Kit.

$3.99

$

In Stock, Qty 9

0

--

Snapper 7036543

NUT, 5/16-18 "T"
(Superseded to 7036543SM)

Note: For location, see Instruction Sheet #42686, included in 61886 Kit.

$2.99

$

Usually ships in 2-12 days

0

--

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

Note: Was 91296 (For location, see Instruction Sheet #42686, included in 61886 Kit.)

$4.49

$

In Stock, only 1 left!

0

--

Snapper 7091833

SCREW, 5/16-18 x 5/8" Pan Head
(Superseded to 7091833SM)

Note: Was 91833 (For location, see Instruction Sheet #42686, included in 61886 Kit.)

$4.49

$

In Stock, only 1 left!

0

32

Snapper 7029840

WASHER, Faceted
(Superseded to 704315)

$4.49

$

In Stock, only 4 left!

0

33

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, only 3 left!

0

34

Snapper 7031725

LATCH, Grass Catcher
(Superseded to 7031725YP)

$5.49

$

Usually ships in 2-12 days

0

35

Snapper 7090532

SCREW, #10-32 x 1-1/16" Hex Head Cap, Grade 2
(Superseded to 704316)

$4.99

$

In Stock, only 2 left!

0

36

Snapper 7090376

NUT, #10-32 Hex Top Lock
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7091503

PIN, 3/32 x 1-1/2 Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7012556

CONNECTOR, Bag Rod
(Superseded to 7012556YP)

$7.49

$

In Stock, only 1 left!

0

39

Snapper 7060480

KIT, Air Lift
(Superseded to 7060480SM)

Note: (Includes Indented Items)

$

$

Not available

40

Snapper 7037723

LIFTS, Air
(Superseded to 7037723BMYP)

$

$

Not available

41

Snapper 7090228

SCREW, 5/16-24 x 21/32" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

42

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

--

Snapper 7090188

WASHER, 11/32" Flat, Grade 5
(Superseded to 703350)

Note: Was 91296 (For location, see Instruction Sheet #42686, included in 61886 Kit.)

$4.49

$

In Stock, only 1 left!

0

45

Snapper 7063289

KIT, Catcher Debris Shield
(Superseded to 7063289YP)

Note: (Incl. items 46-49)

$29.99

$

Usually ships in 2-12 days

0

46

Snapper 7063287

SHIELD, Debris
(Superseded to 7063289YP)

$29.99

$

Usually ships in 2-12 days

0

47

Snapper 7090909

BOLT, 1/4-20 x 1-1/2" Hex
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

48

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

49

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0
