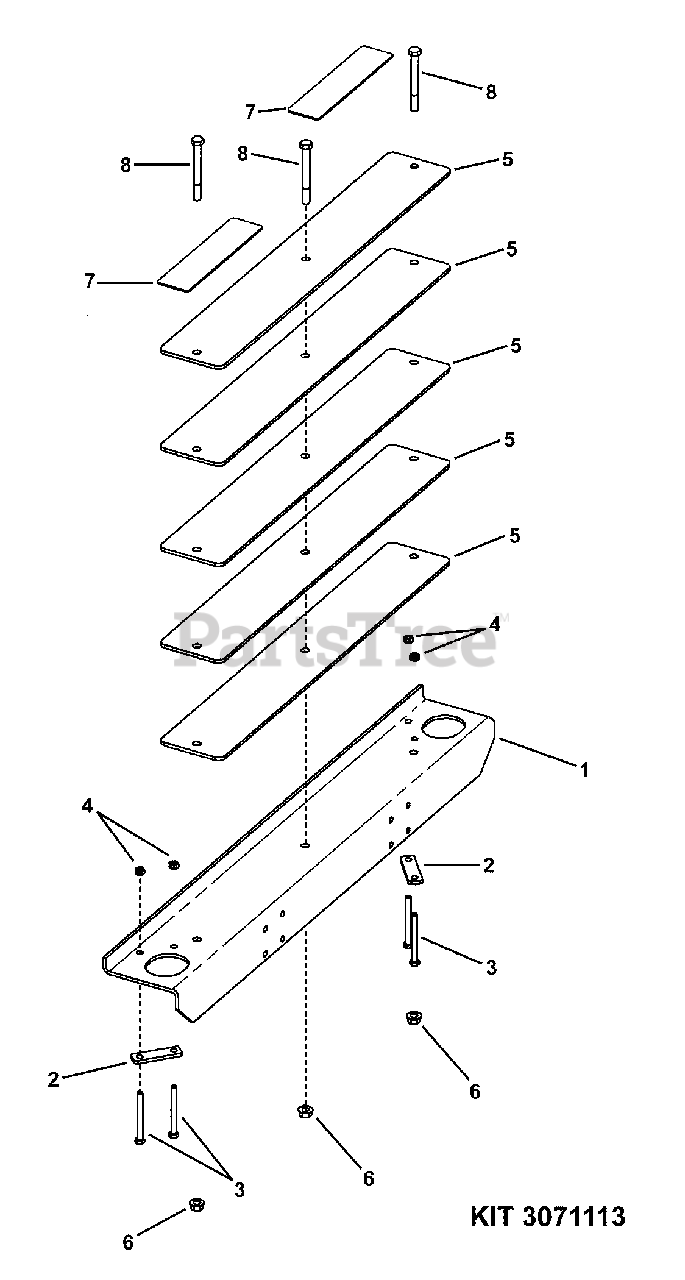

7061839 - Snapper Universal Folding Roll Over Protection Kit ACCESSORY, Weight Kit Parts Diagram

Universal Folding Roll Over Protection Kit

ACCESSORY, Weight Kit Parts Diagram

  • Title
--

Snapper 3071113

KIT, NZM ROPS Weight

Note: must be installed prior to use of Roll Over Protection Kit 63357

$

$

Currently unavailable

1

Snapper 3027501

CHANNEL, Weight Mounting
(Superseded to 3027501YP)

$233.99

$

Usually ships in 2-12 days

0

2

Snapper 3046992

BAR, Clamp
(Superseded to 3046992YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7091131

BOLT, 3/8-16 x 4" Hex Head Cap, GR 5
(Superseded to 7091131YP)

$10.99

$

Usually ships in 2-12 days

0

4

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

5

Snapper 3027502

WEIGHT, NZM Weight Kit

$

$

Currently unavailable

6

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 3032142

PAD, Anti-Skid, Weight Kit

$

$

Currently unavailable

8

Snapper 3031021

SCREW, 1/2-13 x 4-1/2" Hex Head Cap

$

$

Not available
