7061783 - Snapper Reverse Throttle Interlock Kit Reverse Throttle Interlock Parts Diagram

Reverse Throttle Interlock Kit

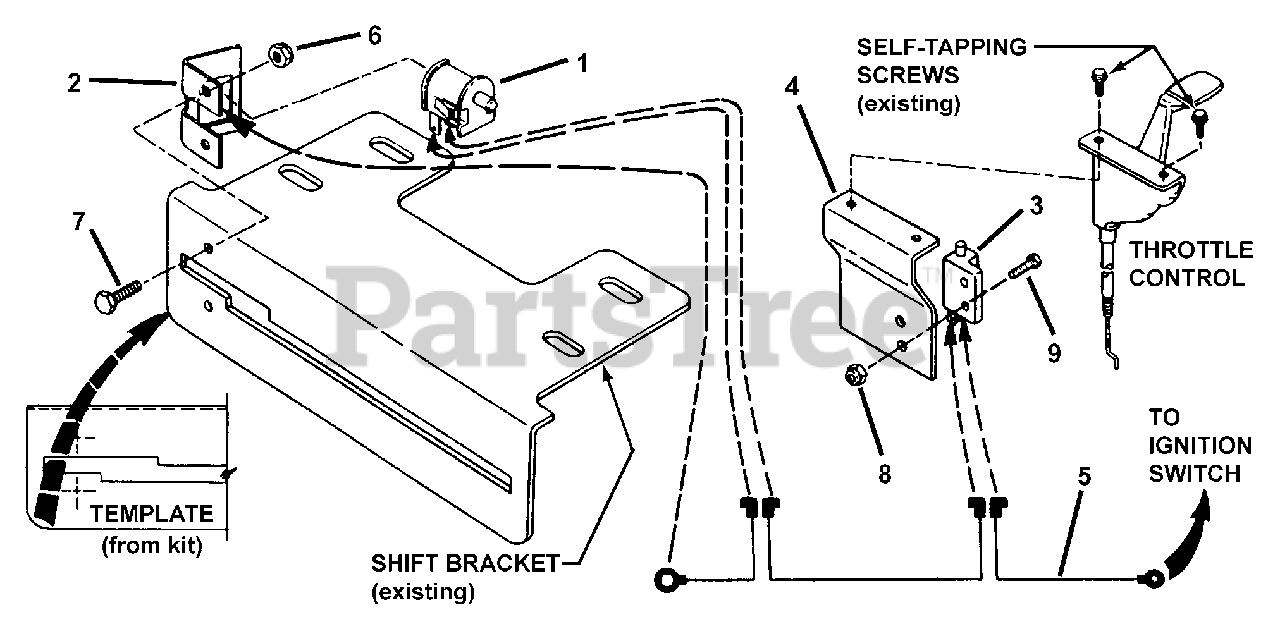

Reverse Throttle Interlock Parts Diagram

  • Title

Snapper 7061783

KIT, Reverse Throttle Interlock

Note: (Includes items 1 thru 9)

$

$

Currently unavailable

1

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

$8.99

$

In Stock, Qty 20+

0

2

Snapper 7034466

BRACKET, Reverse Switch
(Superseded to 7034466YP)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper 7027225

SWITCH, Single Pole
(Superseded to 7027225YP)

$

$

Not available

4

Snapper 7034459

BRACKET, Reverse Throttle
(Superseded to 7034459YP)

$14.99

$

Usually ships in 2-12 days

0

5

Snapper 7028516

HARNESS, Reverse Throttle Wire

$

$

Currently unavailable

6

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

8

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7091631

SCREW, #10-24 x 1/2" Hex Head Cap
(Superseded to 7091631YP)

$2.99

$

Usually ships in 2-12 days

0
