7061347 - Snapper 42" LT Snow Blade Snow Blade Parts Diagram

42" LT Snow Blade

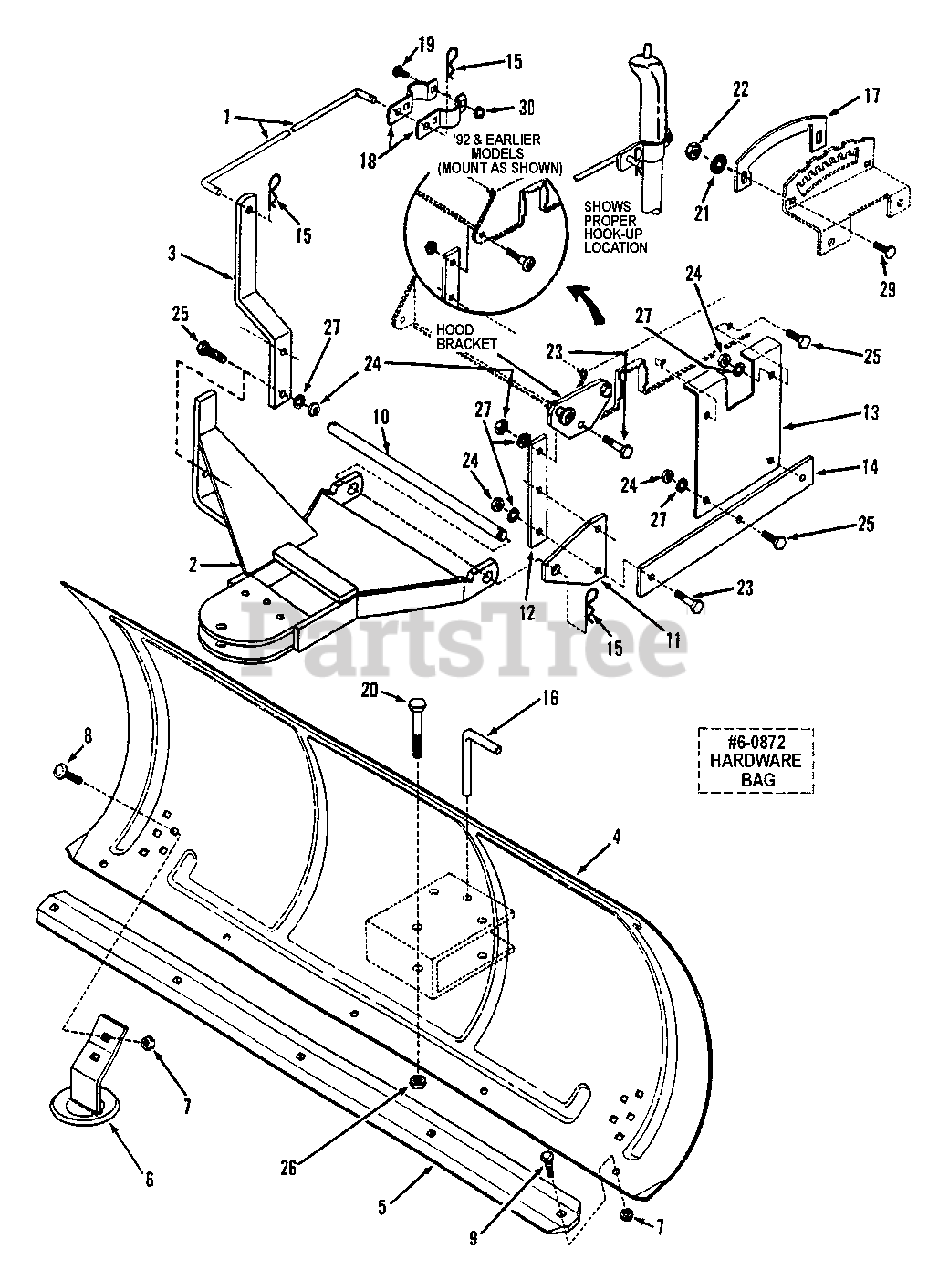

Snow Blade Parts Diagram

  • Title

--

Snapper 7061352

KIT, Snow Blade

Note: Was 61347 (Now 61352 + 60930)(Includes 1 thru 30)

$

$

Not available

1

Snapper 7038403

ROD, Lift
(Superseded to 7038403YP)

$79.99

$

Usually ships in 2-12 days

0

2

Snapper 7041617

WELDMENT, Bracket, 36/42 Snow Blade
(Superseded to 7041617YP)

$296.99

$

Usually ships in 2-12 days

0

3

Snapper 7034230

EXTENSION, Lift, 36/42 Snow Blade
(Superseded to 7034230YP)

$50.99

$

Usually ships in 2-12 days

0

--

Snapper 7053388

ASSEMBLY, 42" Dozer Blade

Note: (Includes indented items below)

$

$

Currently unavailable

4

Snapper 7041616

WELDMENT, 42" Blade

$

$

Currently unavailable

5

Snapper 7038145

SCRAPER
(Superseded to 7038145YP)

$74.99

$

Usually ships in 2-12 days

0

6

Snapper 7040445

WELDMENT, Slide
(Superseded to 7040445YP)

$84.99

$

In Stock, only 2 left!

0

7

Snapper 7091585

NUT, 3/8-15 Hex Center Lock, Grade 5 or B
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

8

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, Grade 2
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage, Grade 2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7060930

BOX, Accessory

Note: (Includes indented items below)

$

$

Currently unavailable

10

Snapper 7021153

PIN, Holding
(Superseded to 7021153YP)

$21.99

$

Usually ships in 2-12 days

0

11

Snapper 7032725

BRACKET, Mount
(Superseded to 7032725YP)

$29.99

$

Usually ships in 2-12 days

0

12

Snapper 7032726

BAR, Hanger
(Superseded to 7032726YP)

$49.99

$

Usually ships in 2-12 days

0

13

Snapper 7038399

PLATE, Hanger
(Superseded to 7038399YP)

$40.99

$

Usually ships in 2-12 days

0

14

Snapper 7038400

TIE BAR, Side
(Superseded to 7038400YP)

$46.99

$

Usually ships in 2-12 days

0

--

Snapper 7060872

BAG, Hardware

Note: (Includes items 15 thru 30)

$

$

Currently unavailable

15

Snapper 7011714

HAIR PIN, 3/32 x 1-1/8"
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7031002

PIN
(Superseded to 7031002YP)

$20.99

$

Usually ships in 2-12 days

0

17

Snapper 7032397

PLATE, Lockout
(Superseded to 7032397YP)

$42.99

$

Usually ships in 2-12 days

0

18

Snapper 7032763

TAB, Lift Lever
(Superseded to 7032763YP)

$11.99

$

Usually ships in 2-12 days

0

19

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090017

SCREW, 1/2-20 x 2-3/4" Hex Head Cap, Grade 5
(Superseded to 7090017YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

22

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

23

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

26

Snapper 7090266

NUT, 1/2-20 Hex Center Lock
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7023682

REFLECTOR, Red
(Superseded to 1701600SM)

Note: (Not shown)

$11.99

$

Usually ships in 2-12 days

0

29

Snapper 7090803

BOLT, 1/4-20 x 5/8"
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0
