7061308 - Snapper LT Bag-N-Wagon Adapter Bag-N-Wagon Adapter Parts Diagram

LT Bag-N-Wagon Adapter

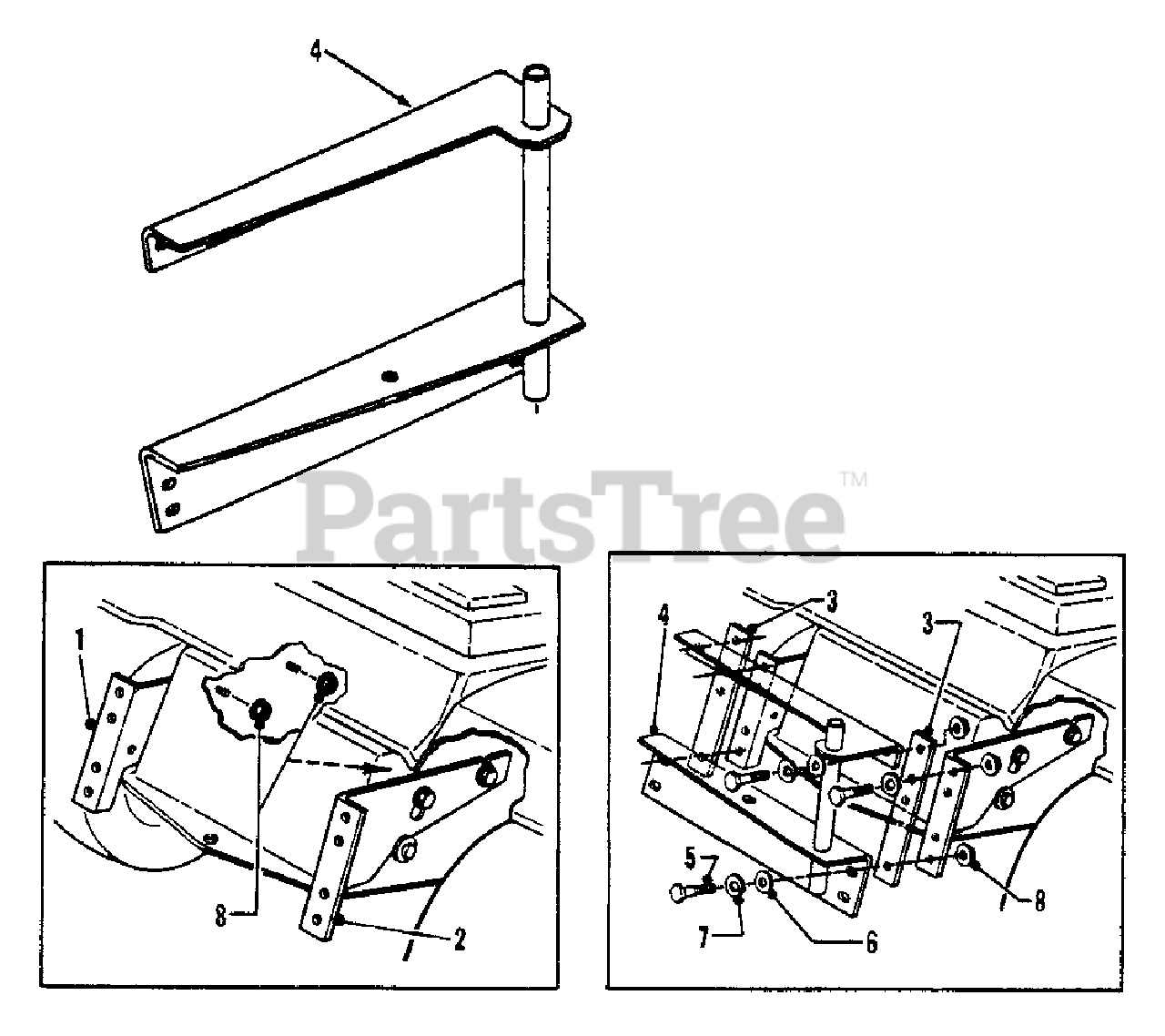

Bag-N-Wagon Adapter Parts Diagram

  • Title
--

Snapper 7061308

KIT, Bag-N-Wagon Adapter
(Superseded to 7061308YP)

Note: (Includes items 1 thru 8)

$233.99

$

Usually ships in 2-12 days

0

1

Snapper 7034173

SUPPORT, Stand-up Tube L.H.
(Superseded to 7034173YP)

Note: (Shown installed)

$27.99

$

Usually ships in 2-12 days

0

2

Snapper 7034172

SUPPORT, Stand-up Tube R.H.
(Superseded to 7034172YP)

Note: (Shown installed)

$20.99

$

Usually ships in 2-12 days

0

3

Snapper 7011796

ADAPTER, Alignment
(Superseded to 7011796YP)

Note: Was 31494

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7040635

WELDMENT, Adapter

$

$

Currently unavailable

--

Snapper 7061338

BAG, Hardware

Note: (Includes indented items below)

$

$

Currently unavailable

5

Snapper 7091260

BOLT, 5/16-18 x 1-1/4" Hex Head, Grade 8
(Superseded to 7091260YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7090188

WASHER, 5/16" Flat, Grade 5
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

7

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
