7061219 - Snapper Mulching Kit for 48" Mower Deck Mulching 48" Deck (Pro 748 Deck) Parts Diagram

Mulching Kit for 48" Mower Deck

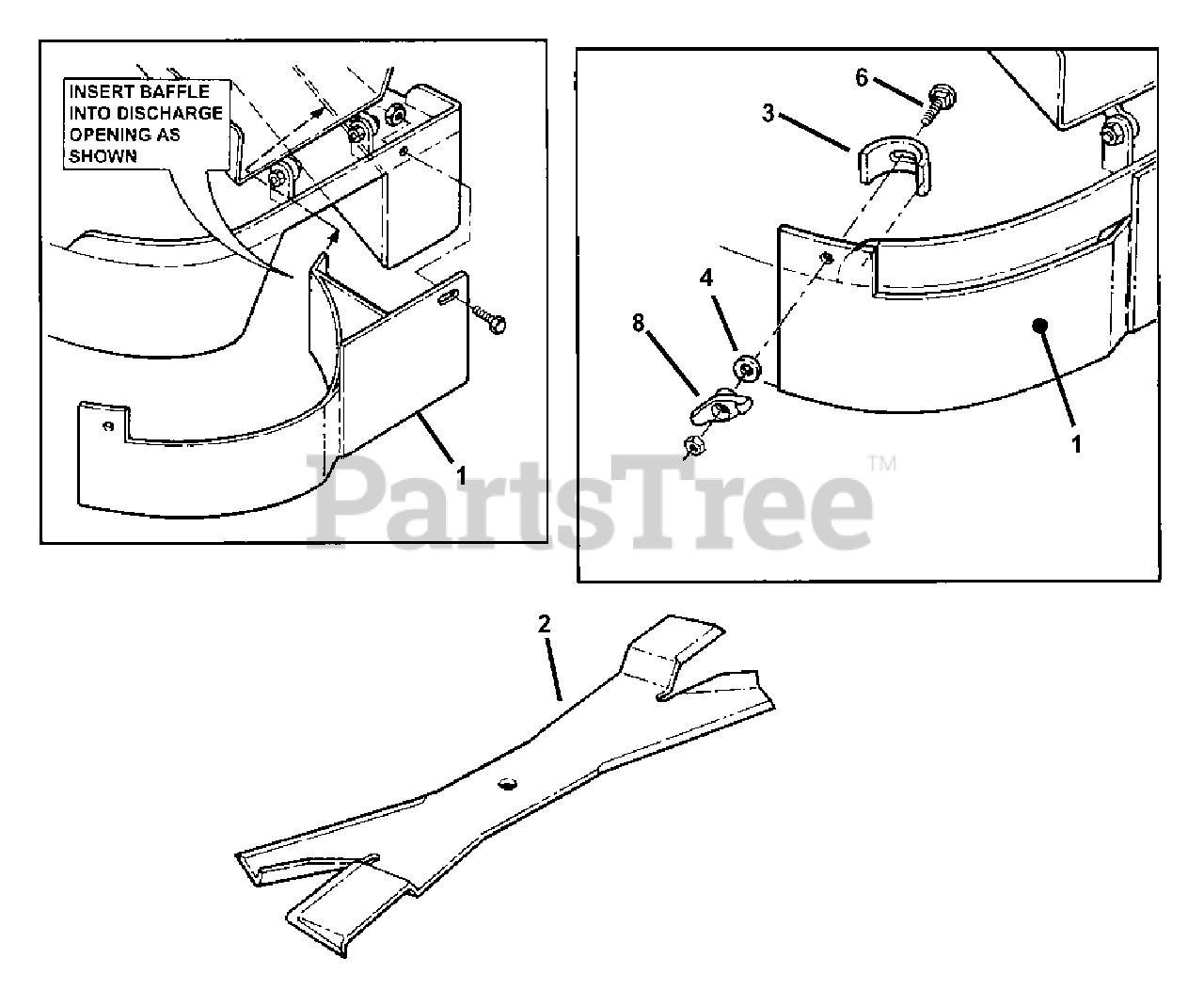

Mulching 48" Deck (Pro 748 Deck) Parts Diagram

  • Title

Snapper 7061219

KIT, Mulching, 48" Deck
(Superseded to 7061219YP)

Note: (Includes items 1 thru 8)

$311.99

$

Usually ships in 2-12 days

0

1

Snapper 7024811

WELDMENT, 48" Recycling Baffle
(Superseded to 7024811YP)

$162.99

$

Usually ships in 2-12 days

0

2

Snapper 7024868

BLADE, 16-1/2" Quad Edge
(Superseded to 7024868BZYP)

$56.99

$

Usually ships in 2-12 days

0

3

Snapper 7031123

CLAMP
(Superseded to 7031123YP)

$28.99

$

Usually ships in 2-12 days

0

4

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

?5

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Square Neck Carriage, Grade 5
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

?7

Snapper 7091502

BOLT, 1/2-20 x 3/4" Hex Washer Face w/Nylon Patch, Grade 5
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7035744

T-KNOB, Plastic
(Superseded to 7105085YP)

Note: Was 16324 (accepts 5/16-18 nut)

$3.99

$

In Stock, Qty 20+

0
