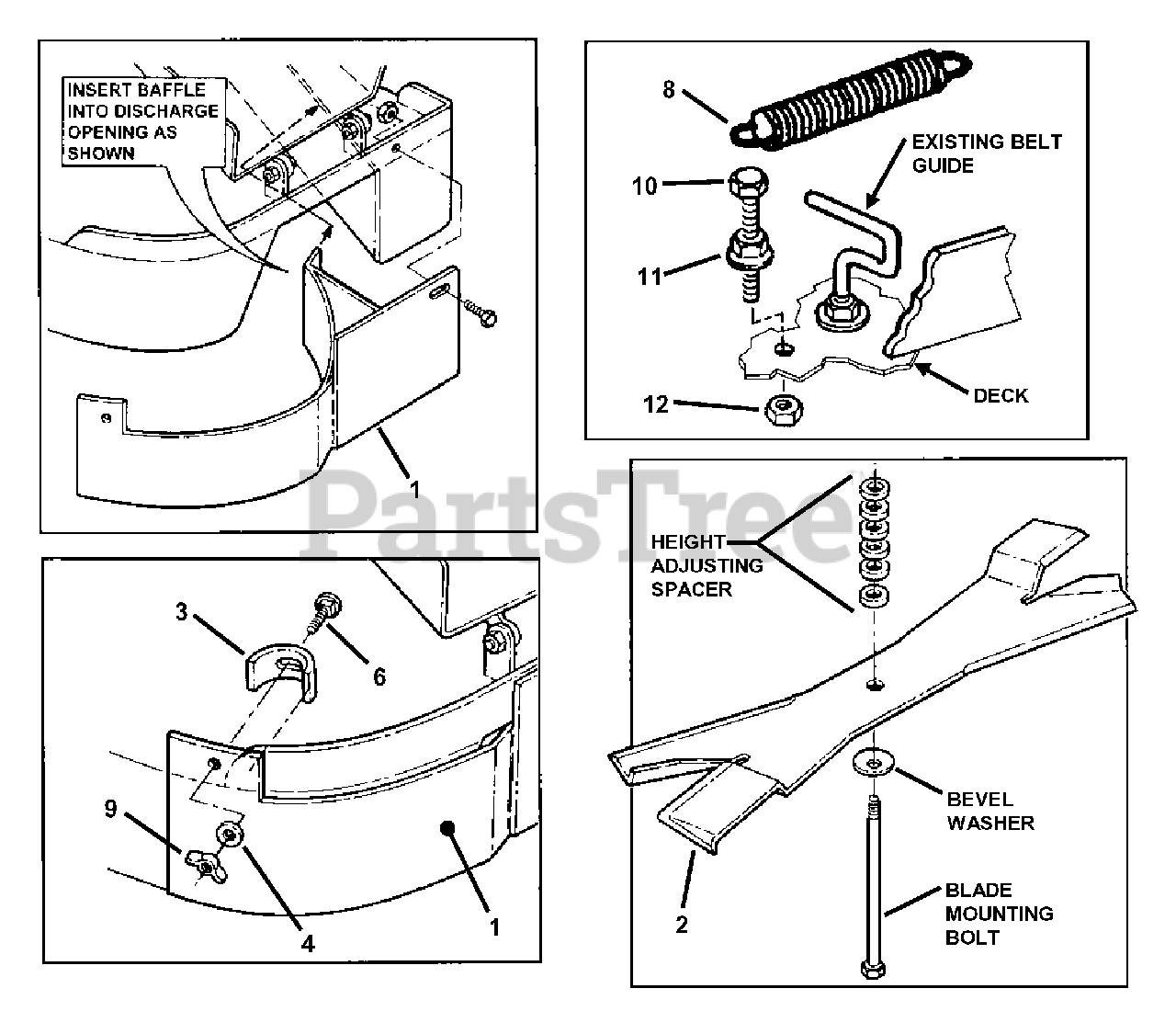

7061218 - Snapper Mulching Kit for 36" Mower Deck Mulching 36" Deck 61218 (PRO Mowers) Parts Diagram

Mulching Kit for 36" Mower Deck

Mulching 36" Deck 61218 (PRO Mowers) Parts Diagram

  • Title

Snapper 7061218

KIT, Mulching, 36" Deck

Note: (Includes items 1 thru 12)

$

$

Currently unavailable

1

Snapper 7024810

WELDMENT, 36" Recycling Baffle

$

$

Currently unavailable

2

Snapper 7024869

BLADE, 18" Quad Edge
(Superseded to 7024869YP)

$63.99

$

Usually ships in 2-12 days

0

3

Snapper 7031123

CLAMP
(Superseded to 7031123YP)

$28.99

$

Usually ships in 2-12 days

0

4

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Square Neck Carriage, Grade 5
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

7

Snapper 7091502

BOLT, 1/2-20 x 3/4" Hex Washer Face w/Nylon Patch, Grade 5
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7026197

SPRING, Idler Return
(Superseded to 7026197YP)

$10.99

$

Usually ships in 2-12 days

0

9

Snapper 7035744

KNOB, 5/16-18 Wing
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7076935

SCREW, 5/16-18 x 1-1/2" Hex Head Cap
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

12

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0
