7061176 - Snapper PRO Sulky Kit Sulky, Pro 7 Parts Diagram

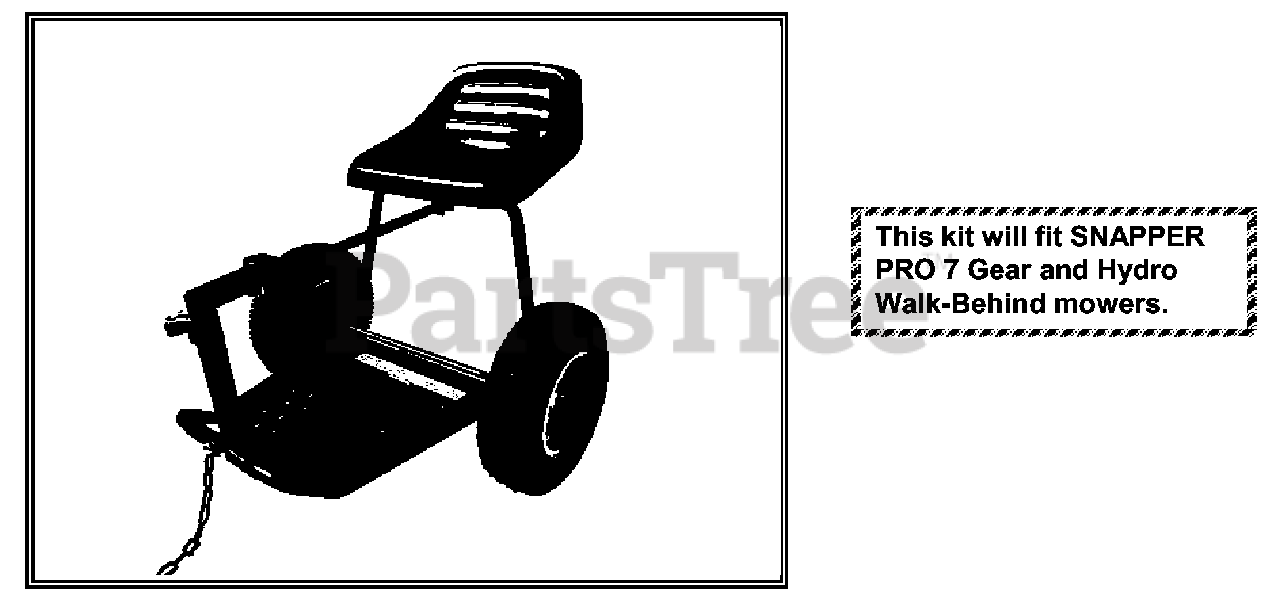

PRO Sulky Kit

Sulky, Pro 7 Parts Diagram

  • Title

Snapper 7061176

KIT, Sulky

Note: (Incl. 1 thru 47)

$

$

Currently unavailable

1

Snapper 7024353

ASSEMBLY, Wheel
(Superseded to 7024353YP)

Note: (incl. tire, rim, 2 ball bearings, air valve & grease fitting

$170.99

$

Usually ships in 2-12 days

0

2

Snapper 7033516

TUBE, Seat Support
(Superseded to 7033516YP)

$67.99

$

Usually ships in 2-12 days

0

3

Snapper 7033604

BRACE, Draw Bar
(Superseded to 7033604YP)

$70.99

$

Usually ships in 2-12 days

0

4

Snapper 7041308

WELDMENT, Seat Adjust

$

$

Currently unavailable

5

Snapper 7041329

WELDMENT, Channel Brace
(Superseded to 7041329YP)

$153.99

$

Usually ships in 2-12 days

0

6

Snapper 7052821

Ass'y, Drawbar/Hitch

Note: (incl. items 7 thru 15)

$

$

Currently unavailable

7

Snapper 7014438

HOOK (5/16-18 thread)
(Superseded to 7014438YP)

$8.49

$

Usually ships in 2-12 days

0

8

Snapper 7024352

SPRING, 3/4" O.D. x 1-1/2"
(Superseded to 7024352YP)

$20.99

$

Usually ships in 2-12 days

0

9

Snapper 7033610

HITCH
(Superseded to 7033610YP)

$38.99

$

Usually ships in 2-12 days

0

10

Snapper 7033611

DRAWBAR
(Superseded to 7033611YP)

$112.99

$

Usually ships in 2-12 days

0

11

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

14

Snapper 7090629

BOLT, 3/8-16 x 2-1/4"
(Superseded to 7090629YP)

$2.49

$

Usually ships in 2-12 days

0

15

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7022543

SEAT (with 19295 Decal)

Note: Was 52822

$

$

Currently unavailable

17

Snapper 7052823

WELDMENT, Frame

Note: (with 77774 Decal)

$

$

Currently unavailable

18

Snapper 7013370

WASHER, 1" I.D. Flat
(Superseded to 7013370YP)

$

$

Not available

19

Snapper 7013492

WASHER, Special
(Superseded to 7013492YP)

$6.99

$

Usually ships in 2-12 days

0

20

Snapper 7022960

SPACER, Seat
(Superseded to 7022960YP)

$14.99

$

Usually ships in 2-12 days

0

21

Snapper 7023735

KNOB (5/16-18 thread)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7024350

SPACER, Axle

$

$

Currently unavailable

23

Snapper 7024351

PIN, 1/2 x 1-3/16" Clevis
(Superseded to 7024351YP)

$7.49

$

Usually ships in 2-12 days

0

24

Snapper 7024623

CHAIN, Hitch

$

$

Currently unavailable

25

Snapper 7033606

CLAMP
(Superseded to 7033606YP)

$18.99

$

Usually ships in 2-12 days

0

26

Snapper 7033607

HITCH, Bottom
(Superseded to 7033607YP)

$52.99

$

Usually ships in 2-12 days

0

27

Snapper 7033608

HITCH, Top

$

$

Not available

28

Snapper 7033626

LEVER, Shift Sulky
(Superseded to 7033626YP)

$39.99

$

Usually ships in 2-12 days

0

29

Snapper 7033638

SADDLE
(Superseded to 7033638YP)

$62.99

$

Usually ships in 2-12 days

0

30

Snapper 7076526

GRIP, Adj. Lever
(Superseded to 7076526YP)

$3.99

$

In Stock, only 1 left!

0

31

Snapper 7076934

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7076938

SCREW, 5/16-18 x 2-1/4" Hex Head Cap, Grade 5
(Superseded to 703177)

$3.49

$

Usually ships in 2-12 days

0

33

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7077780

PIN, Lynch

$

$

Not available

35

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

37

Snapper 7091809

PIN, 1/8 x 1-1/2" Cotter
(Superseded to 7091809YP)

Note: Was 90297

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

39

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

40

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, Grade 5
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

41

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

42

Snapper 7027174

BOLT, 5/16-18 x 2" Hex, Grade 5
(Superseded to 703867)

Note: Was 90930

$4.99

$

In Stock, only 4 left!

0

43

Snapper 7090959

BOLT, 5/16-18 x 2-1/2" Sq. Neck Carriage, Grade 5
(Superseded to 7090959SM)

$2.99

$

Usually ships in 2-12 days

0

44

Snapper 7090975

NUT, 1/2-13 Hex Center Lock, Grade 5 or B
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

45

Snapper 7091046

SCREW, 5/16-18 x 2-1/2" Hex Head Cap, Grade 5
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

46

Snapper 7091170

BOLT, 1/2-13 x 1-3/4" Bolt, Grade 5

$

$

Currently unavailable

47

Snapper 7024354

INSTRUCTIONS

$

$

Currently unavailable
