7061157 - Snapper 30" Gage Wheel Kit Gage Wheel Parts Diagram

30" Gage Wheel Kit

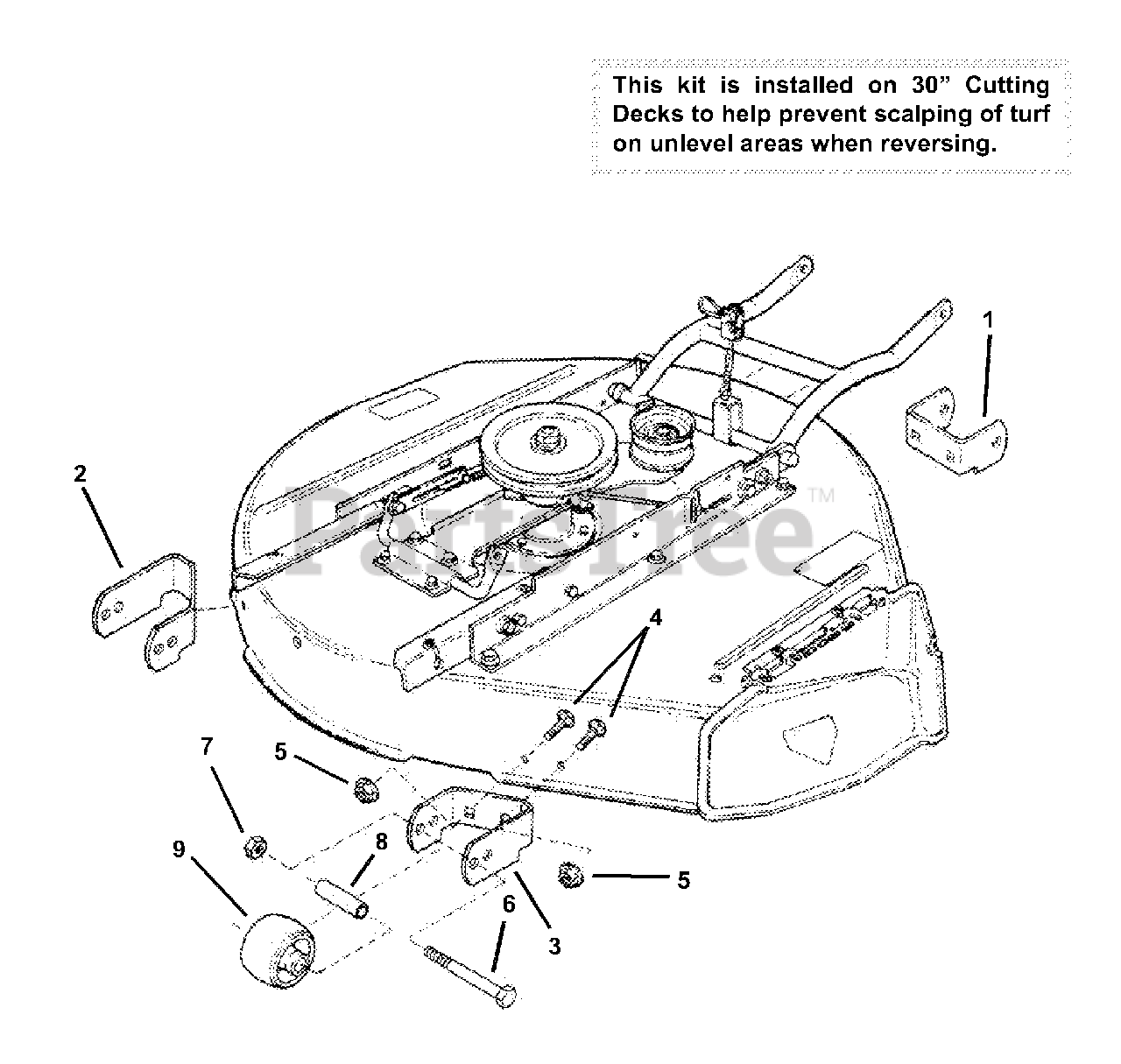

Gage Wheel Parts Diagram

  • Title
1

Snapper 7034024

BRACKET, Front Anti-Scalp

$

$

Not available

2

Snapper 7034025

BRACKET, Left Anti-Scalp
(Superseded to 7034025YP)

$29.99

$

Usually ships in 2-12 days

0

3

Snapper 7034026

BRACKET, Right Anti-Scalp
(Superseded to 7034026YP)

$29.99

$

Usually ships in 2-12 days

0

4

Snapper 7090731

BOLT, 5/16-18x 1/2" Carriage
(Superseded to 703798)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7090589

SCREW, 3/8-24 x 3-3/4" HHC
(Superseded to 7090589YP)

$4.99

$

In Stock, only 1 left!

0

7

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

8

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 7019190

ROLLER
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

--

Snapper 7061157

Gage Wheel Kit, 30"
(Superseded to 7061157YP)

$104.99

$

Usually ships in 2-12 days

0
