7061097 - Snapper Caster, PRO 736, 748 & 752 Kit Caster Wheel Assembly (PRO 736, 748 & 752) Parts Diagram

Caster, PRO 736, 748 & 752 Kit

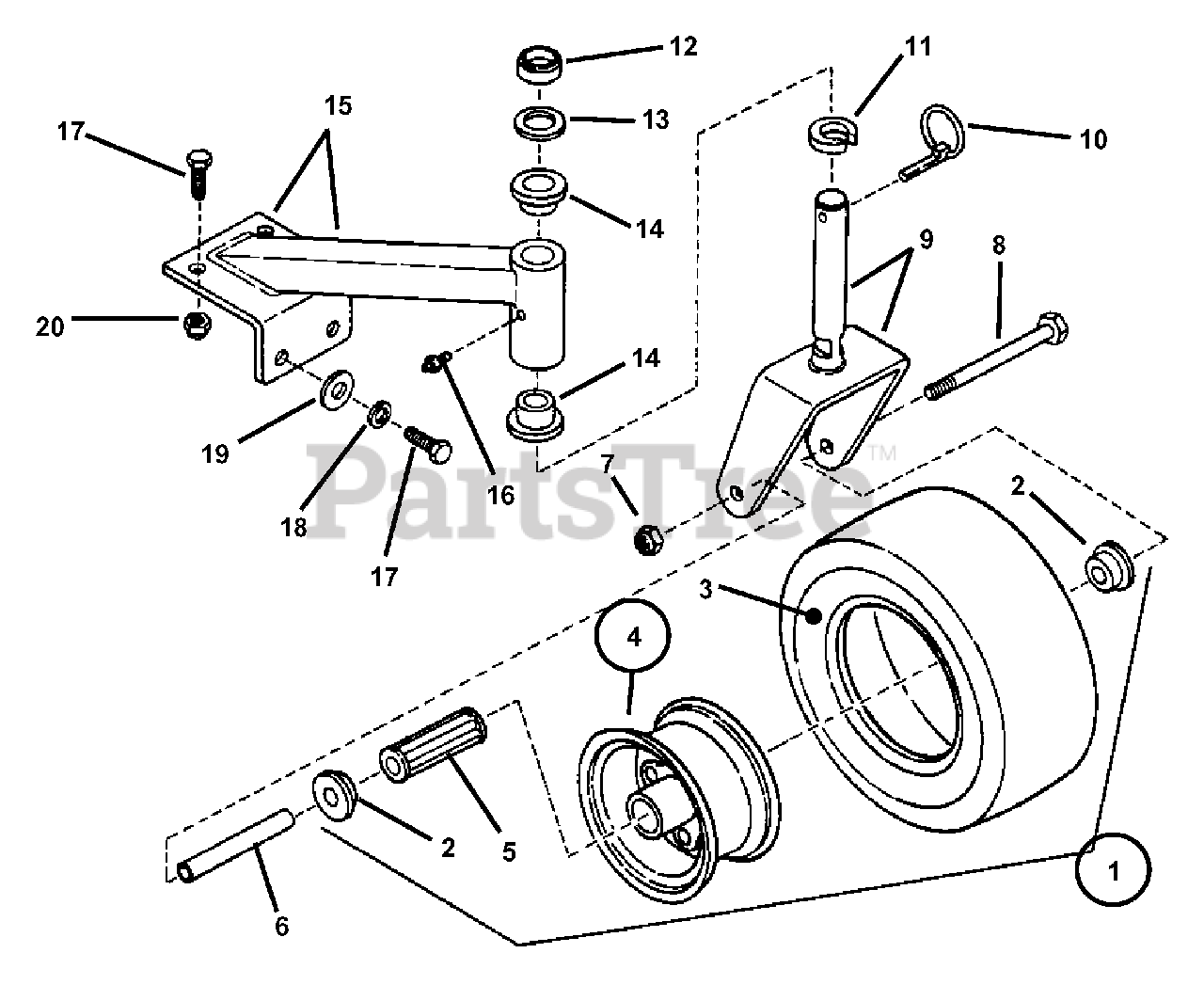

Caster Wheel Assembly (PRO 736, 748 & 752) Parts Diagram

  • Title

Snapper 7061097

KIT, Caster

Note: (Incl. items items 1 thru 20)

$

$

Currently unavailable

1

Snapper 7022258

ASSEMBLY, Wheel & Tire
(Superseded to 7058167YP)

Note: (Includes items 2 thru 5)

$120.99

$

Usually ships in 2-12 days

0

2

Snapper 7022394

RETAINER, Flanged
(Superseded to 7022394YP)

$8.99

$

In Stock, Qty 11

0

3

Snapper 7029870

TIRE, 9 x 3.50 - 4
(Superseded to 7029870YP)

Note: Was 22392 (Includes Tube)

$57.99

$

In Stock, only 2 left!

0

4

Snapper 7057737

ASSEMBLY, Wheel
(Superseded to 7057737YP)

Note: Was 22393 ((Includes Items 2 & 5)

$85.99

$

In Stock, only 1 left!

0

5

Snapper 7022395

BEARING, Roller
(Superseded to 7022395YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7022151

SLEEVE, Axle
(Superseded to 7022151YP)

$43.99

$

In Stock, only 1 left!

0

7

Snapper 7091121

NUT, 1/2-13 Hex (Nyloc)

$

$

Not available

8

Snapper 7091326

BOLT, 1/2-13 x 5-1/2" Hex Head Cap, Grade 5
(Superseded to 7091326YP)

Note: Was 91123

$8.99

$

In Stock, Qty 5

0

9

Snapper 7040726

YOKE, Caster (weldment)
(Superseded to 7040726YP)

$90.99

$

Usually ships in 2-12 days

0

10

Snapper 7017711

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

11

Snapper 7019152

SPACER
(Superseded to 7019152YP)

$7.49

$

In Stock, only 1 left!

0

12

Snapper 7028641

SPACER, 1" x 1 3/8 x .30" (PM)
(Superseded to 7028641YP)

Note: Was 21960

$

$

Not available

13

Snapper 7023747

BUSHING, 1.025/1.010 I.D. x .048 Thick
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

15

Snapper 7052298

ASSEMBLY, Caster Support
(Superseded to 7052298YP)

Note: (Includes Items 14 & 16)

$410.99

$

Usually ships in 2-12 days

0

16

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

17

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

18

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

20

Snapper 7091299

NUT, 3/8-16 Hex (Nyloc)
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0
