7061094 - Snapper Hood Replacement Kit Hood Replacement Kit Parts Diagram

Hood Replacement Kit

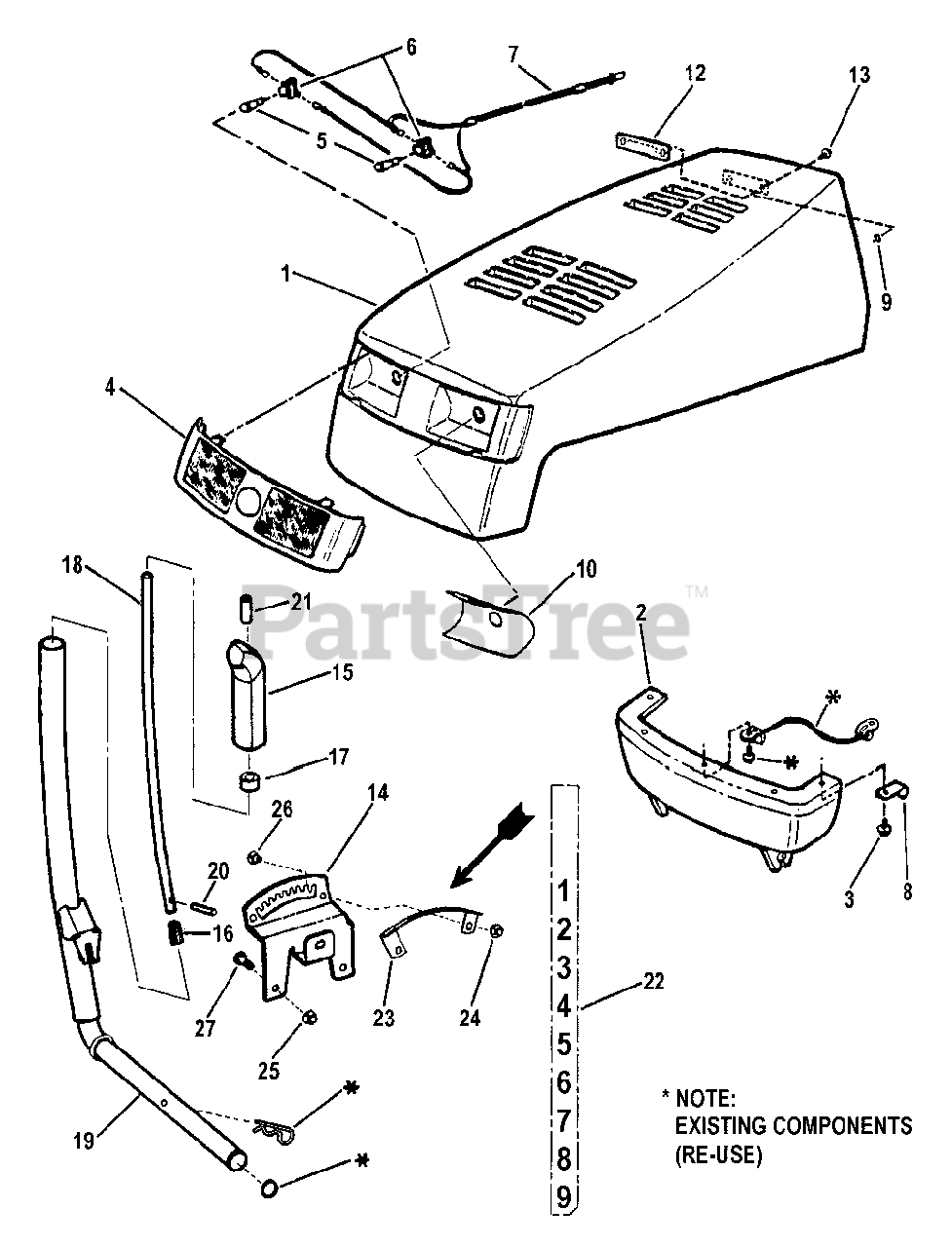

Hood Replacement Kit Parts Diagram

  • Title
--

Snapper 7061094

KIT, LT Hood Update

Note: (Includes all items listed below)

$

$

Currently unavailable

--

Snapper 7063298

ASSEMBLY, OPPLT Hood
(Superseded to 7063298YP)

Note: Was 52921 or 61383 (Includes 1 thru 13)

$1036.99

$

Usually ships in 2-12 days

0

1

Snapper 7063298

HOOD, LT-Modified
(Superseded to 7063298YP)

Note: Was 24605

$1036.99

$

Usually ships in 2-12 days

0

2

Snapper 7029620

SUPPORT, Hood
(Superseded to 7029620YP)

$104.99

$

Usually ships in 2-12 days

0

3

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00mm Sems
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7024893

LENS, Black Bezel
(Superseded to 7024893YP)

$45.99

$

Usually ships in 2-12 days

0

5

Snapper 7026172

LAMP, 1141
(Superseded to 7026172YP)

$14.99

$

In Stock, only 1 left!

0

6

Snapper 7024709

SOCKET, Headlight (Snap-in)

$

$

Not available

7

Snapper 7026171

HARNESS, Headlight Wiring (M & G Sockets)
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 7026482

CLIP, "J" (open type)
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

9

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7017174

DECAL, R.H. Lens
(Superseded to 7017174YP)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7017175

DECAL, L.H. lens
(Superseded to 7017175YP)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7033307

QUADRANT, Lift

$

$

Currently unavailable

15

Snapper 7019363

KNOB, Lift Handle
(Superseded to 7019363YP)

$8.49

$

Usually ships in 2-12 days

0

--

Snapper 7052498

ASSEMBLY, Lift Handle

Note: (Includes items 16 thru 20)

$

$

Currently unavailable

16

Snapper 7014432

SPRING
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

17

Snapper 7015019

PLUG, Nylon
(Superseded to 7015019YP)

$

$

Not available

18

Snapper 7033047

ROD, Lift Lever

$

$

Not available

19

Snapper 7040698

WELDMENT, Lift Handle
(Superseded to 7040698YP)

$182.99

$

Usually ships in 2-12 days

0

20

Snapper 7090881

PIN, 3/16 x 2" Groove
(Superseded to 7090881YP)

$12.99

$

Usually ships in 2-12 days

0

--

Snapper 7061095

BAG, Hardware

Note: (Includes items 21 thru 27)

$

$

Currently unavailable

21

Snapper 7014361

CAP, Lift Rod
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7017445

DECAL, Cut Height
(Superseded to 7017445YP)

$5.49

$

Usually ships in 2-12 days

0

23

Snapper 7033176

INDICATOR, Cut Height
(Superseded to 7033176YP)

$77.99

$

Usually ships in 2-12 days

0

24

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

25

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

26

Snapper 7090803

SCREW, 1/4-20 x 5/8" Flat Head Square Neck, Grade 2
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 7091000

SCREW, 5/16-18 x 7/8" Truss Head Torx
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0
