7061051 - Snapper 33" Ninja Recycling Kit 33" Recycle Kit Parts Diagram

33" Ninja Recycling Kit

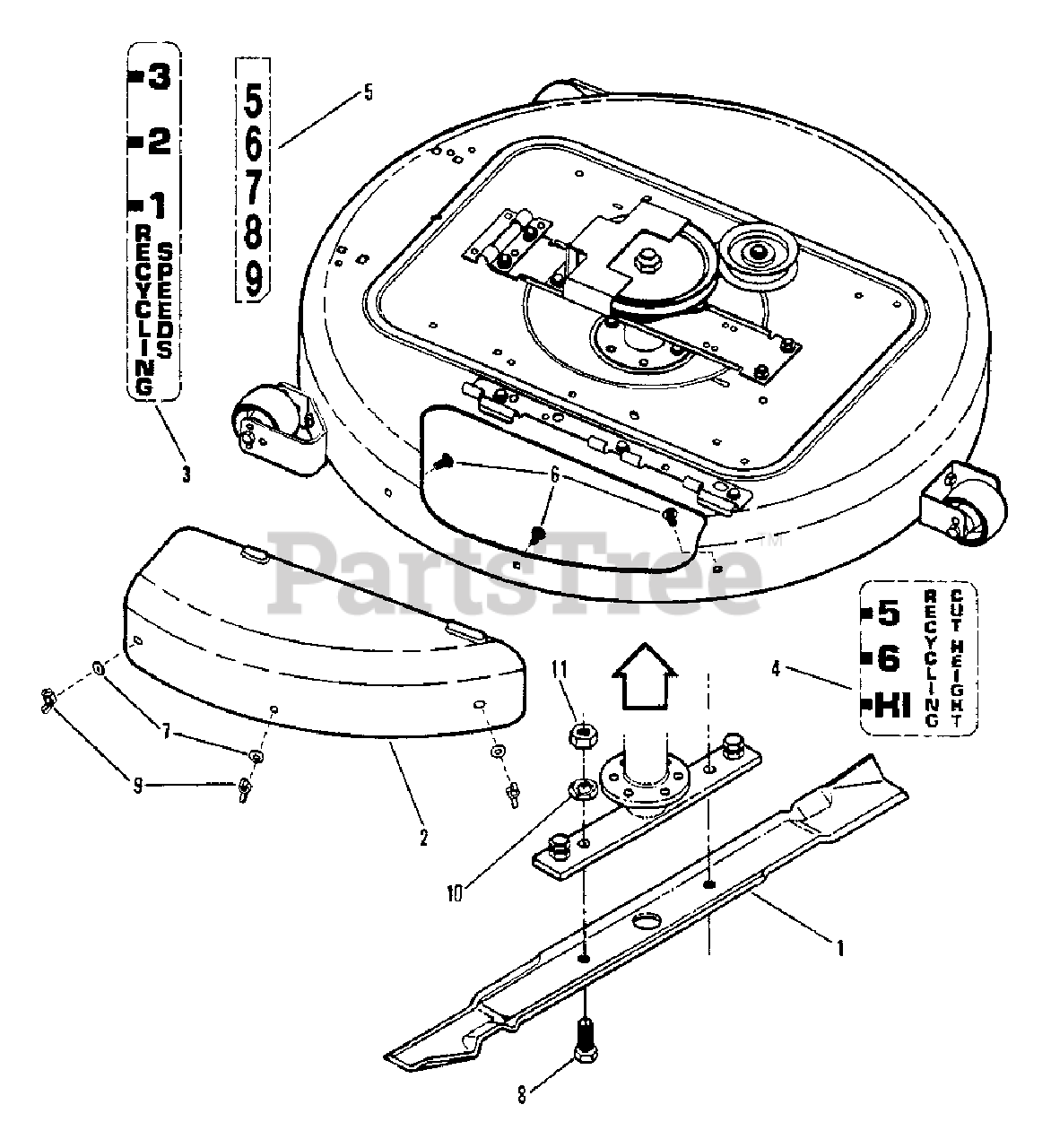

33" Recycle Kit Parts Diagram

  • Title

--

Snapper 7061255

KIT, 33" Recycling
(Superseded to 7061255YP)

Note: Was 61051 (Includes 1 thru 11)

$198.99

$

Usually ships in 2-12 days

0

1

Snapper 7016982

BLADE, 33" Recycling
(Superseded to 7024741AYP)

$94.99

$

Usually ships in 2-12 days

0

2

Snapper 7016984

COVER, 33" Side Chute
(Superseded to 7016984YP)

$

$

Not available

--

Snapper 7061093

BAG, Hardware

Note: (Incl. 3-11)

$

$

Not available

3

Snapper 7017176

DECAL, Recy. Ground Speed
(Superseded to 7017176SM)

$17.99

$

Usually ships in 2-12 days

0

4

Snapper 7017328

DECAL, Recycling Ht. of Cut

$

$

Not available

5

Snapper 7022325

DECAL, Cut Height
(Superseded to 7022325YP)

$9.99

$

In Stock, only 2 left!

0

6

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

7

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

8

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7090509

WASHER, 1/2" Internal Tooth
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

11

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0
