7060948 - Snapper 25" & 33" RER Thatcherizer Thatcherizer Parts Diagram

25" & 33" RER Thatcherizer

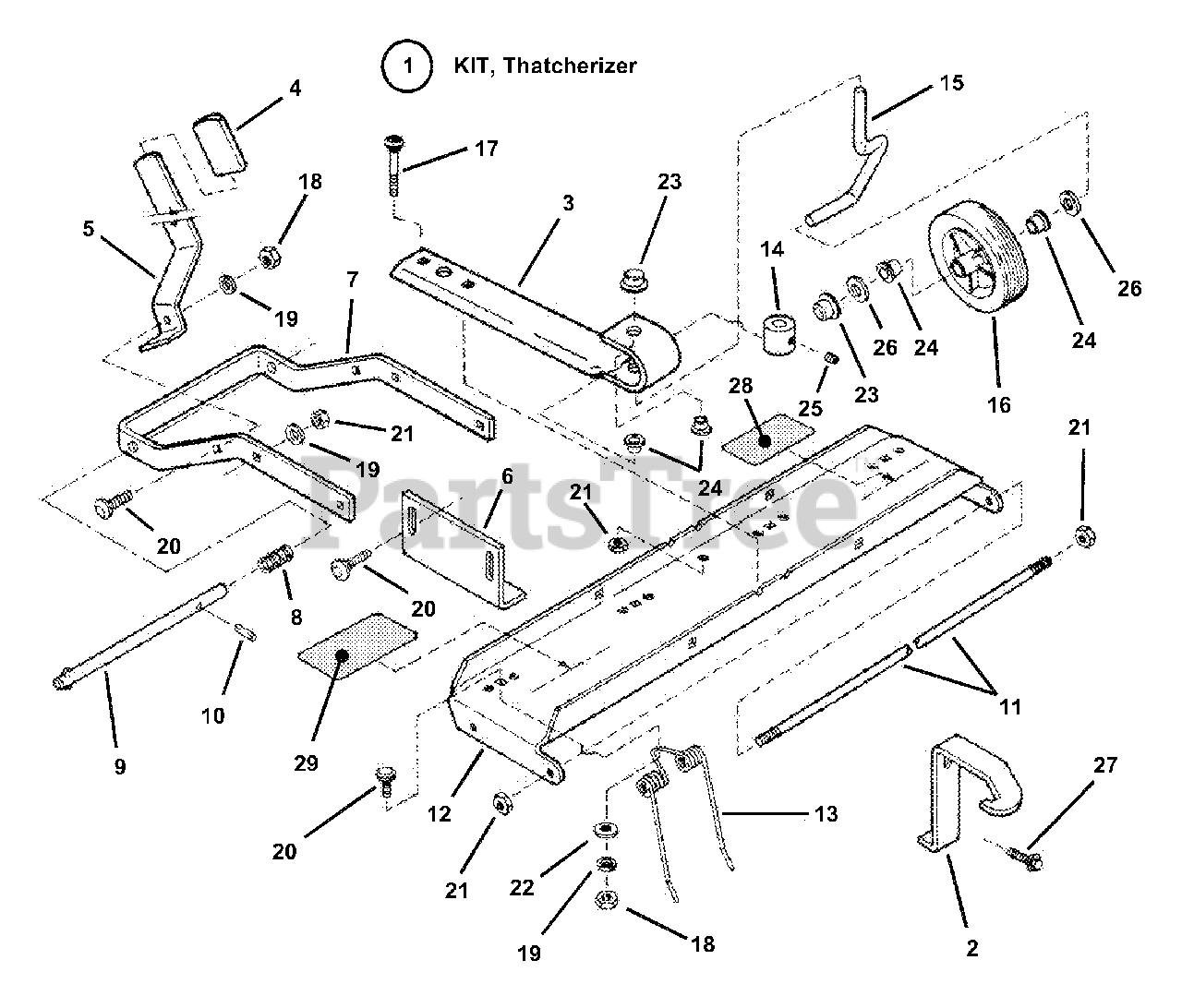

Thatcherizer Parts Diagram

  • Title
1

Snapper 7060948

KIT, 25" & 33" Thatcherizer

Note: (Incl. Items 2 Thru 29)

$

$

Not available

2

Snapper 7032864

BRACKET, Transport Lock

$

$

Not available

3

Snapper 7018700

SUPPORT, Wheel Assembly

$

$

Not available

4

Snapper 7014109

GRIP, Handle
(Superseded to 7014109YP)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7018494

HANDLE, Lift
(Superseded to 7018494BMYP)

$59.99

$

Usually ships in 2-12 days

0

6

Snapper 7014778

BRACKET, Frame Mount
(Superseded to 7014778YP)

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 16200

FRAME, Thatcherizer

$

$

Currently unavailable

8

Snapper 15594

SPRING, Coupler

$

$

Currently unavailable

9

Snapper 7015595

ROD, Mounting

$

$

Not available

10

Snapper 7014106

PIN, 1/4 x 1-3/4" Roll
(Superseded to 7014106YP)

$4.49

$

In Stock, only 2 left!

0

11

Snapper 7014110

ROD, Tine Retainer
(Superseded to 7014110YP)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 19947

TRAY, Tine (30.5")

$

$

Currently unavailable

13

Snapper 7018491

SPRING, Tine Thatching
(Superseded to 7018491YP)

$17.99

$

In Stock, only 1 left!

0

14

Snapper 7014100

BUSHING
(Superseded to 7014100YP)

$18.99

$

In Stock, only 1 left!

0

15

Snapper 7018493

AXLE, Wheel
(Superseded to 7018493YP)

$43.99

$

Usually ships in 2-12 days

0

16

Snapper 7018189

WHEEL, 7"

$

$

Not available

17

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Carr.
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 8

0

21

Snapper 7091705

NUT, 1/4-20 Hex Lock
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7014098

WASHER, Reinforcing
(Superseded to 7014098SM)

$16.99

$

In Stock, only 2 left!

0

23

Snapper 7014101

NUT, 1/2 Push
(Superseded to 7014101YP)

$4.49

$

In Stock, only 2 left!

0

24

Snapper 7014342

BEARING, Nyliner (Snap-In)
(Superseded to 7014342YP)

$6.49

$

In Stock, only 1 left!

0

25

Snapper 7014103

SCREW, 5/16-18 x 1/4" Slot Set
(Superseded to 7014103YP)

$3.49

$

In Stock, only 1 left!

0

26

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

27

Snapper 7091541

SCREW, 5/16-18 x 3/4" Self-Tap
(Superseded to 703228)

Note: Was 90765

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7014119

DECAL, Instruction

$

$

Not available

29

Snapper 7014062

DECAL, Thatcherizer

$

$

Not available
