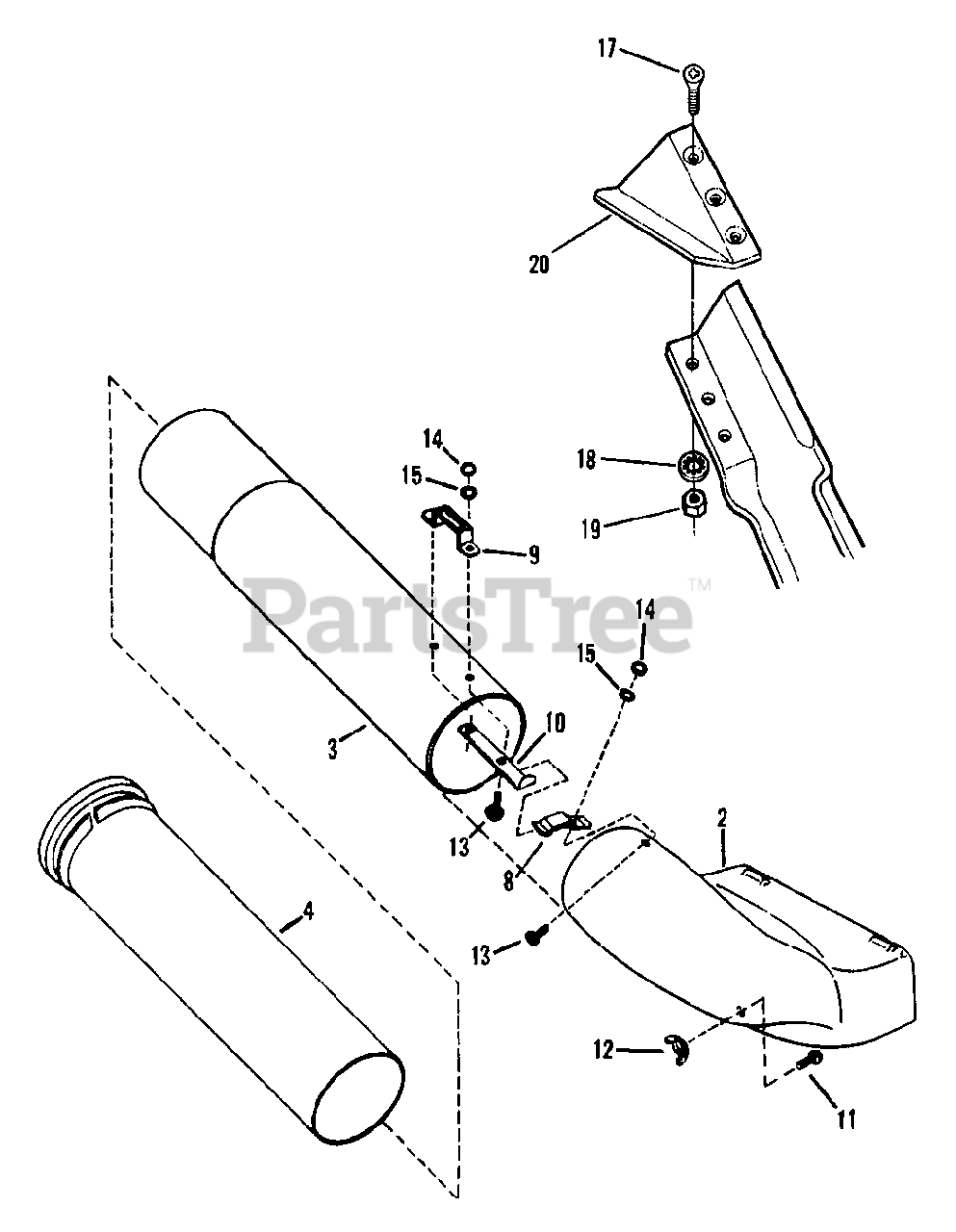

7060947 - Snapper Bag N-Wagon, 30 Bushel Tube Group Parts Diagram

Bag N-Wagon, 30 Bushel

Tube Group Parts Diagram

  • Title

--

Snapper 7060947

KIT, Snapper Bag-N-Wagon

Note: (Complete - see "Bag-N-Wagon (Complete) 60947 (Tube Section)", "Accessory, Bag-N-Wagon 60947 (Hitch And Body Section)", "Accessory, Bag-N-Wagon 60947 (60964 Cover Section)")

$

$

Currently unavailable

--

Snapper 7060964

KIT, Wagon Cover (Part of 60947)

Note: (See "Accessory, Bag-N-Wagon Adapter 61089 (For Hydro And Gear Drive Models)", item 1)

$

$

Currently unavailable

2

Snapper 7057816

ASSEMBLY, Deck Adapter/Decal
(Superseded to 7019912YP)

Note: (Includes Adapter, 19912 and Decal, 46720)

$134.99

$

In Stock, only 1 left!

0

3

Snapper 7023115

TUBE, Grass (8" Diameter

$

$

Not available

4

Snapper 7018985

TUBE, Grass (10" Diameter)

$

$

Not available

--

Snapper 7060592

BAG, Hardware

Note: (See "Accessory, Grass Catcher Adapter 61068 (For Hydro And Gear Drive Models)" for components)

$

$

Currently unavailable

--

Snapper 7060480

KIT, Air lift
(Superseded to 7060480SM)

Note: (Includes items 17 thru 20)

$

$

Not available

7

Snapper 7037725

BRACKET, Stand-Off
(Superseded to 7037725YP)

Note: (Not shown); Used on Rear Engine Riders only.

$38.99

$

Usually ships in 2-12 days

0

8

Snapper 7031951

LATCH, Tube
(Superseded to 7031951YP)

$5.99

$

In Stock, only 1 left!

0

9

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 7031952

BASE, Tube Handle
(Superseded to 7031952YP)

$7.49

$

In Stock, only 1 left!

0

11

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 12

0

12

Snapper 7090375

WING-NUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 2 left!

0

14

Snapper 7091576

NUT, 1/4-20
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

16

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

--

Snapper 7060480

KIT, Air Lift
(Superseded to 7060480SM)

Note: (Includes items 17 thru 20 below)

$

$

Not available

17

Snapper 7090228

SCREW, 5/16-24 x 11/16" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7037723

AIR LIFT
(Superseded to 7037723BMYP)

$

$

Not available

21

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 90548 (Not shown); Used on Rear Engine Riders only.

$3.99

$

In Stock, only 4 left!

0

--

Snapper 7051420

ASSEMBLY, Latch

Note: (Components listed "Accessory, Bag-N-Wagon 60947 (Hitch And Body Section)", item #'s 7, 8, 9, 10, 34, 35, 36, & 37)

$

$

Currently unavailable
