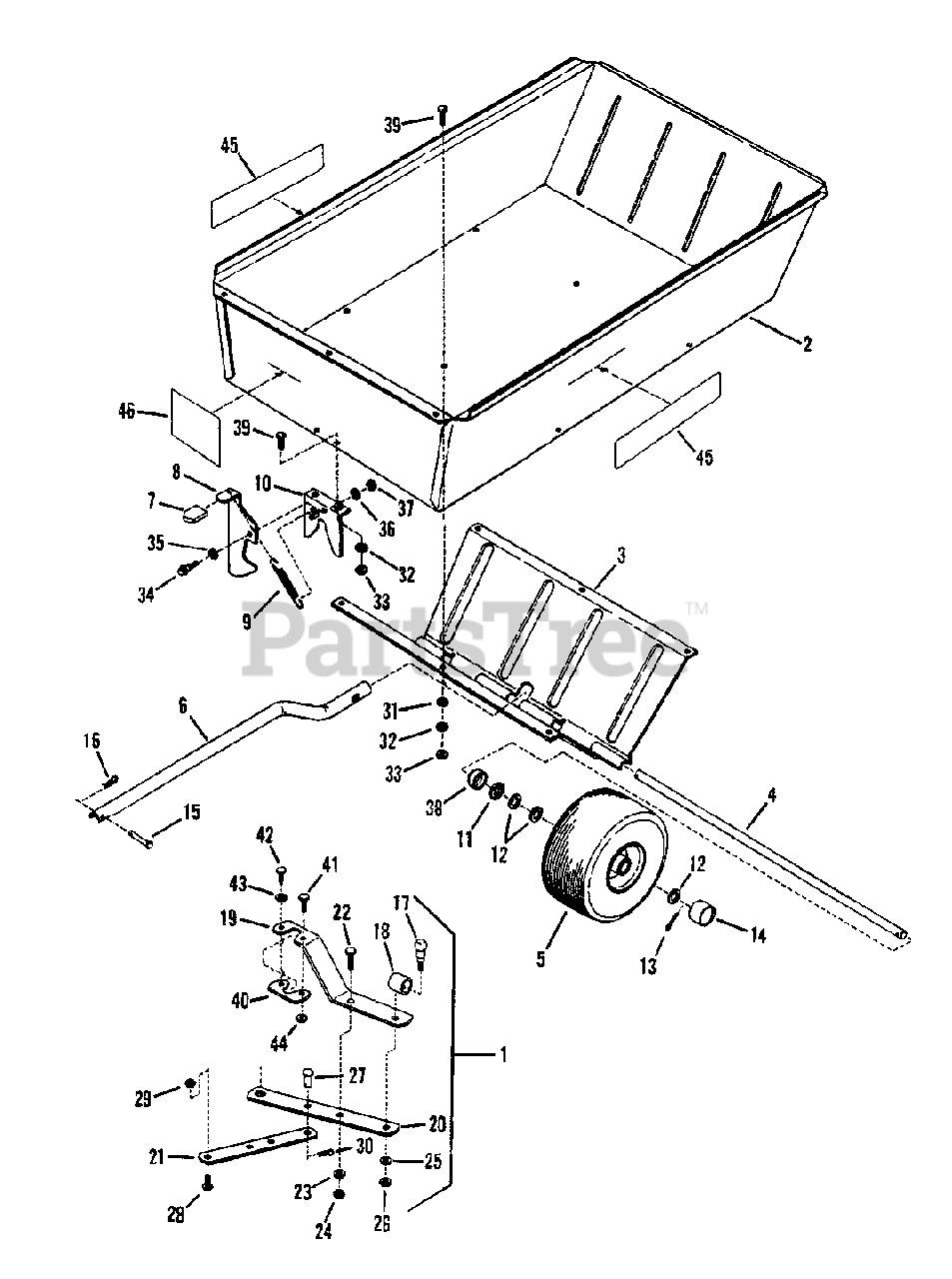

7060947 - Snapper Bag N-Wagon, 30 Bushel Hitch & Body Parts Diagram

Bag N-Wagon, 30 Bushel

Hitch & Body Parts Diagram

  • Title

1

Snapper 7051935

ASSEMBLY, Hitch

Note: (Includes items 17 thru 30 & 40 thru 44)

$

$

Not available

2

Snapper 7040446

BODY, Wagon Cart

$

$

Not available

3

Snapper 7039604

SUPPORT, Axle

$

$

Not available

4

Snapper 7031949

AXLE
(Superseded to 7031949YP)

$95.99

$

Usually ships in 2-12 days

0

5

Snapper 52667

ASSEMBLY, Wheel/Tire, Pneumatic

Note: (Includes indented items below) (may also use 51449 or 52305)

$

$

Currently unavailable

--

Snapper 7023828

TIRE, 4.10/3.50 x 4
(Superseded to 7023828YP)

Note: Was 10820

$59.99

$

Usually ships in 2-12 days

0

--

Snapper 7017146

RIM, (For 4.10/3.50x4 Tire)
(Superseded to 7058943YP)

Note: Was 10819 (Includes indented items below)

$102.99

$

In Stock, only 2 left!

0

--

Snapper 7011807

BEARING, Ball
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 20+

0

--

Snapper 7014247

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

--

Snapper 7010821

TUBE, Inner
(Superseded to 7010821YP)

$18.99

$

In Stock, Qty 5

0

6

Snapper 7031946

TONGUE
(Superseded to 7031946YP)

$61.99

$

Usually ships in 2-12 days

0

7

Snapper 7012391

GRIP, Latch
(Superseded to 7012391YP)

$2.99

$

Usually ships in 2-12 days

0

8

Snapper 7037736

LATCH

$

$

Not available

9

Snapper 7029025

SPRING, Latch
(Superseded to 7029025YP)

Note: Was 13694

$5.99

$

In Stock, only 4 left!

0

10

Snapper 7037737

YOKE
(Superseded to 7037737YP)

$30.99

$

Usually ships in 2-12 days

0

11

Snapper 7011032

WASHER, Felt
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 7010935

WASHER, 3/4"
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 14

0

14

Snapper 7011022

COVER, Dust
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7011713

PIN, 3/8 x 2-1/4" Clevis
(Superseded to 7011713YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7011714

HAIRPIN, 3/32"
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7012388

BALL, Hitch
(Superseded to 7012388YP)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$43.99

$

Usually ships in 2-12 days

0

18

Snapper 7021762

COLLAR, Hitch
(Superseded to 7021762YP)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$139.99

$

Usually ships in 2-12 days

0

19

Snapper 7029562

BAR, Upper Draw
(Superseded to 7029562YP)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$33.99

$

Usually ships in 2-12 days

0

20

Snapper 7037742

BRACE, Draw Bar
(Superseded to 7037742YP)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$21.99

$

Usually ships in 2-12 days

0

21

Snapper 7037743

BAR, Lower Draw

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$

$

Not available

22

Snapper 7090160

SCREW, 3/8-24 x 1" Hex Head Cap, Grade 5
(Superseded to 7090160YP)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$3.49

$

In Stock, only 2 left!

0

23

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$3.49

$

In Stock, Qty 17

0

24

Snapper 7091630

NUT, 3/8-24 Hex, Grade 2
(Superseded to 703895)

Note: Was 90155 (Kit P/N 60734 (Hitch Assembly) is comprised of these items.)

$4.49

$

In Stock, only 2 left!

0

25

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

Note: Was 90247 (Kit P/N 60734 (Hitch Assembly) is comprised of these items.)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7090460

NUT, 7/16-20 Hex, Grade B
(Superseded to 7090460SM)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$2.49

$

Usually ships in 2-12 days

0

27

Snapper 7012389

PIN, Hitch Clevis
(Superseded to 7012389YP)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7090268

SCREW, 1/2-20 x 1" Hex Head Cap, Grade 2

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$

$

Currently unavailable

29

Snapper 7090819

NUT, 1/2-20 Hex Jam Lock
(Superseded to 7090819YP)

Note: Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$3.49

$

In Stock, only 1 left!

0

30

Snapper 7091503

HAIRPIN, 3/32 x 1-19/32"
(Superseded to 7091503SM)

Note: Was 15067, Kit P/N 60734 (Hitch Assembly) is comprised of these items.

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7012485

RETAINER, 1/4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

33

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7011078

BOLT, 5/16-18 Shoulder
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

35

Snapper 7011079

WASHER, Spring
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

36

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

37

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7031038

DUST-CAP
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 12

0

39

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 2 left!

0

40

Snapper 7027713

CLIP, Retaining

$

$

Currently unavailable

41

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

42

Snapper 7090534

SCREW, 5/16-18 x 1/2" Hex Head Cap, Grade 2
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

43

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

44

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

45

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

Note: (18593 may be used)

$13.99

$

In Stock, only 4 left!

0

46

Snapper 7012464

DECAL, Maximum Load
(Superseded to 7012464YP)

$10.99

$

Usually ships in 2-12 days
