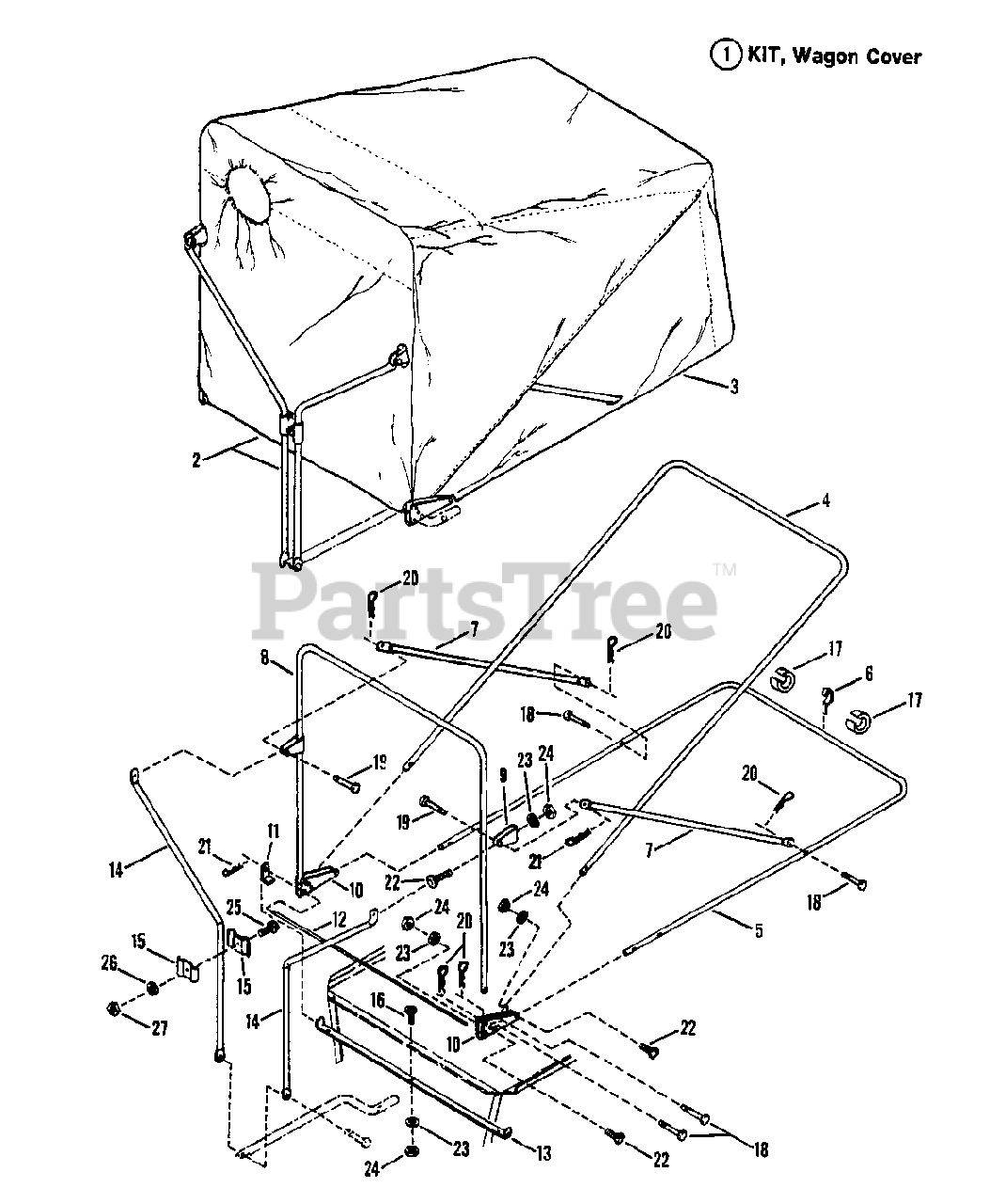

7060947 - Snapper Bag N-Wagon, 30 Bushel Cover Parts Diagram

Bag N-Wagon, 30 Bushel

Cover Parts Diagram

  • Title

1

Snapper 7060964

KIT, Bag-N-Wagon Cover

Note: (Includes hitch assembly, chute and air lifts as well as items 2 thru 35)

$

$

Currently unavailable

2

Snapper 7051936

ASSEMBLY, Frame & Canopy

Note: (Includes items 3 thru 27)

$

$

Not available

3

Snapper 7023818

CANOPY, Cloth Only (CHARCOAL); (12396, White)

$

$

Not available

4

Snapper 7031943

FRAME, Center
(Superseded to 7031943YP)

$36.99

$

Usually ships in 2-12 days

0

5

Snapper 7031945

FRAME, Base
(Superseded to 7031945YP)

$122.99

$

Usually ships in 2-12 days

0

--

Snapper 7060592

BAG, Hardware

Note: (Includes indented items below)

$

$

Currently unavailable

6

Snapper 7031950

LOCK, Canopy

$

$

Not available

7

Snapper 7031941

BRACE, Frame
(Superseded to 7031941YP)

$

$

Not available

8

Snapper 7031944

FRAME, Front
(Superseded to 7031944BMYP)

$

$

Not available

9

Snapper 7031939

CLAMP, Rod
(Superseded to 7031939YP)

$29.99

$

Usually ships in 2-12 days

0

10

Snapper 7031938

BRACKET, Corner
(Superseded to 7031938YP)

$31.99

$

Usually ships in 2-12 days

0

11

Snapper 7031948

CLIP, Hinge
(Superseded to 7031948YP)

$22.99

$

Usually ships in 2-12 days

0

12

Snapper 7021761

PIN, Hinge
(Superseded to 7021761YP)

$64.99

$

Usually ships in 2-12 days

0

13

Snapper 7031940

MOUNT, Hinge
(Superseded to 7031940YP)

$20.99

$

Usually ships in 2-12 days

0

14

Snapper 7031942

STRUT, Frame

$

$

Not available

15

Snapper 7031956

CLAMP, Strut
(Superseded to 7031956YP)

$23.99

$

Usually ships in 2-12 days

0

16

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 2 left!

0

17

Snapper 7023791

RING, Plastic Wear
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7012393

PIN, 1/4 x 1-1/8" Clevis
(Superseded to 7012393YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Was 12407

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7012431

HAIRPIN, 1/4"
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 7091503

HAIRPIN, 3/32 x 1-19/32"
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7090496

BOLT, 1/4-20 1" Square Neck Carriage, Grade 2
(Superseded to 7090496YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

24

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7090160

SCREW, 3/8-24 x 1" Hex Head Cap, Grade 5
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

26

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

27

Snapper 7091630

NUT, 3/8-24 Hex, Grade 2
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

--

Snapper 7031951

LATCH, Tube Chute
(Superseded to 7031951YP)

Note: (See "Bag-N-Wagon (Complete) 60947 (Tube Section)", item 8)

$5.99

$

In Stock, only 1 left!

0

--

Snapper 7031952

BASE, Handle
(Superseded to 7031952YP)

Note: (See "Bag-N-Wagon (Complete) 60947 (Tube Section)", item 10)

$7.49

$

In Stock, only 1 left!

0

--

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

Note: (See "Bag-N-Wagon (Complete) 60947 (Tube Section)", item 9)

$10.99

$

Usually ships in 2-12 days

0

31

Snapper 7037725

BRACKET, Stand-off
(Superseded to 7037725YP)

Note: (Not shown)

$38.99

$

Usually ships in 2-12 days

0

32

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: (Not shown)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7090375

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: (Not shown)

$4.49

$

In Stock, only 3 left!

0

34

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 90383 (Not shown)

$3.99

$

In Stock, Qty 12

0

35

Snapper 7027230

BOLT, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 90548 (Not shown)

$3.99

$

In Stock, only 4 left!

0

--

Snapper 7018985

TUBE, Grass

Note: (See "Bag-N-Wagon (Complete) 60947 (Tube Section)", item 4)

$

$

Not available

--

Snapper 7057816

ADAPTER, Bagger
(Superseded to 7019912YP)

Note: (Includes Decal #4-7620) (See "Bag-N-Wagon (Complete) 60947 (Tube Section)", item 2)

$134.99

$

In Stock, only 1 left!

0

--

Snapper 7023115

GRASS TUBE, Bag-N-Wagon

Note: (See "Bag-N-Wagon (Complete) 60947 (Tube Section)", item 3)

$

$

Not available

--

Snapper 7051935

ASSEMBLY, Hitch

Note: (See "Accessory, Bag-N-Wagon 60947 (Hitch And Body Section)", item 1)

$

$

Not available

--

Snapper 7060480

KIT, Air Lift
(Superseded to 7060480SM)

Note: (See "Bag-N-Wagon (Complete) 60947 (Tube Section)", item 6)

$

$

Not available
