7060870 - Snapper Thatcherizer for LT12D Series Thatcherizer Parts Diagram

Thatcherizer for LT12D Series

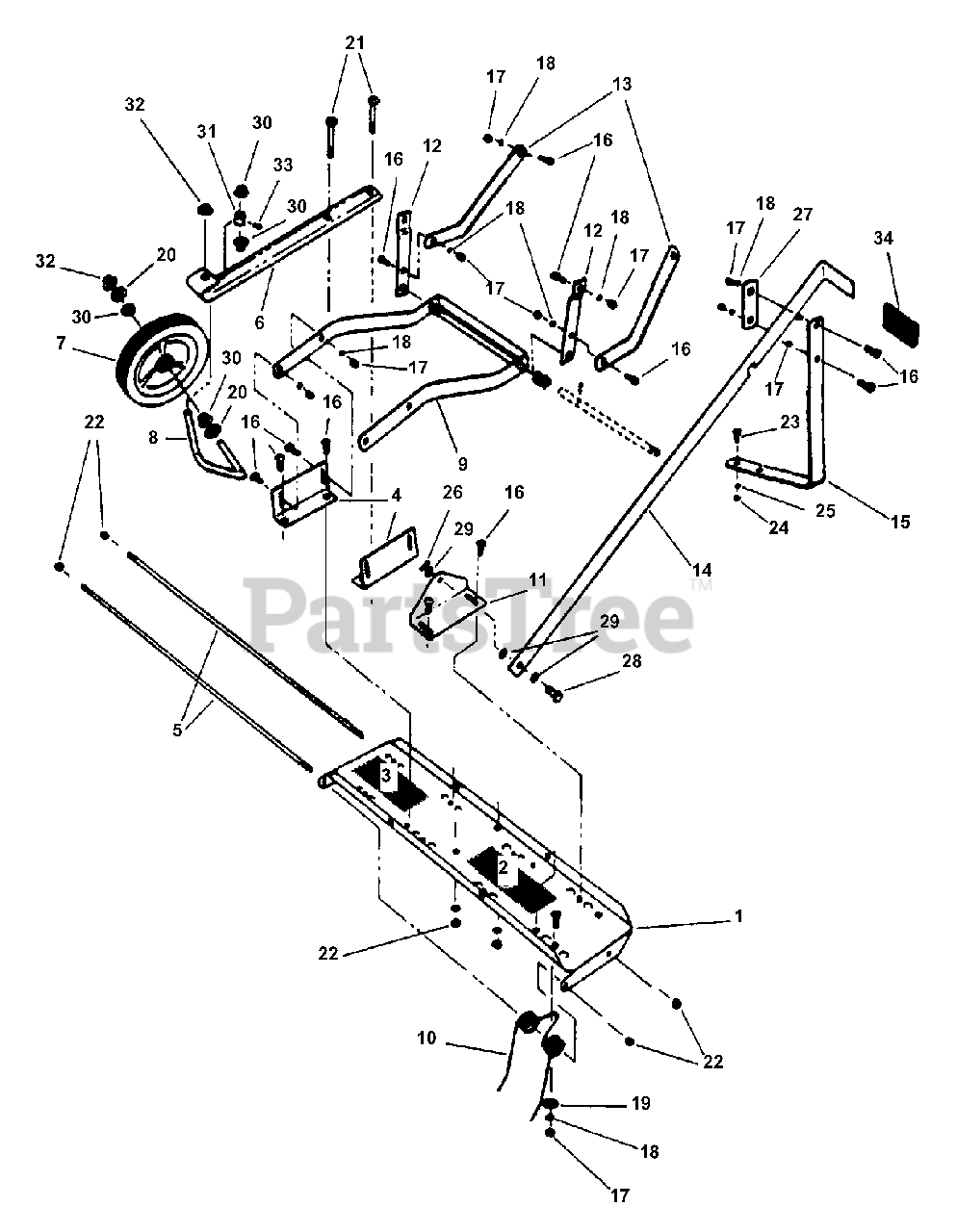

Thatcherizer Parts Diagram

  • Title

Snapper 7060870

THATCHERIZER KIT

$

$

Currently unavailable

1

Snapper 19947

TRAY, Tine

$

$

Currently unavailable

2

Snapper 7023565

DECAL, Adjustment

$

$

Not available

3

Snapper 7014062

DECAL, Thatcherizer

$

$

Not available

4

Snapper 23564

BRACKET, Frame Mounting

$

$

Currently unavailable

5

Snapper 7014110

ROD, Tine
(Superseded to 7014110YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 7018700

SUPPORT, Wheel

$

$

Not available

7

Snapper 7018189

WHEEL, 7 x 1.50 V21

$

$

Not available

8

Snapper 7018493

AXLE, Wheel
(Superseded to 7018493YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper 7017046

ASSEMBLY, Mounting Bracket Mechanism

$

$

Currently unavailable

10

Snapper 7018491

TINE, Thatching
(Superseded to 7018491YP)

$17.99

$

In Stock, only 1 left!

0

11

Snapper 7019150

BRACKET, Lift

$

$

Currently unavailable

12

Snapper 7023532

BAR, Thatcher Mount
(Superseded to 7023532YP)

$25.99

$

Usually ships in 2-12 days

0

13

Snapper 7019135

BAR, Mount Brace

$

$

Not available

14

Snapper 7019137

HANDLE, Lift

$

$

Currently unavailable

15

Snapper 7019136

BRACKET, Lift Lock
(Superseded to 7019136YP)

$60.99

$

Usually ships in 2-12 days

0

16

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 7

0

17

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7014098

WASHER, 5/16" Flat
(Superseded to 7014098SM)

$16.99

$

In Stock, only 2 left!

0

20

Snapper 7090250

WASHER, 1/2" SAE Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

21

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Square Neck Carriage, Grade 2
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

24

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

26

Snapper 13113

PIN, Hair

$

$

Currently unavailable

27

Snapper 7014780

STRAP, Handle Retaining
(Superseded to 7014780YP)

$11.99

$

Usually ships in 2-12 days

0

28

Snapper 7014779

PIN, Clevis
(Superseded to 7014779YP)

$6.49

$

Usually ships in 2-12 days

0

29

Snapper 7090692

WASHER, 5/16" Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7014342

BEARING, Nylon
(Superseded to 7014342YP)

$6.49

$

In Stock, only 1 left!

0

31

Snapper 7014100

BUSHING, Wheel Adjustment
(Superseded to 7014100YP)

$18.99

$

In Stock, only 1 left!

0

32

Snapper 7014101

NUT, 1/2" Push
(Superseded to 7014101YP)

$4.49

$

In Stock, only 2 left!

0

33

Snapper 7014103

SCREW, 5/16-18 x 1/4" Set
(Superseded to 7014103YP)

$3.49

$

In Stock, only 1 left!

0

34

Snapper 7014784

GRIP, Vinyl

$

$

Currently unavailable
