7060860 - Snapper Grass Catcher Adapter Grass Catcher Adapter Parts Diagram

Grass Catcher Adapter

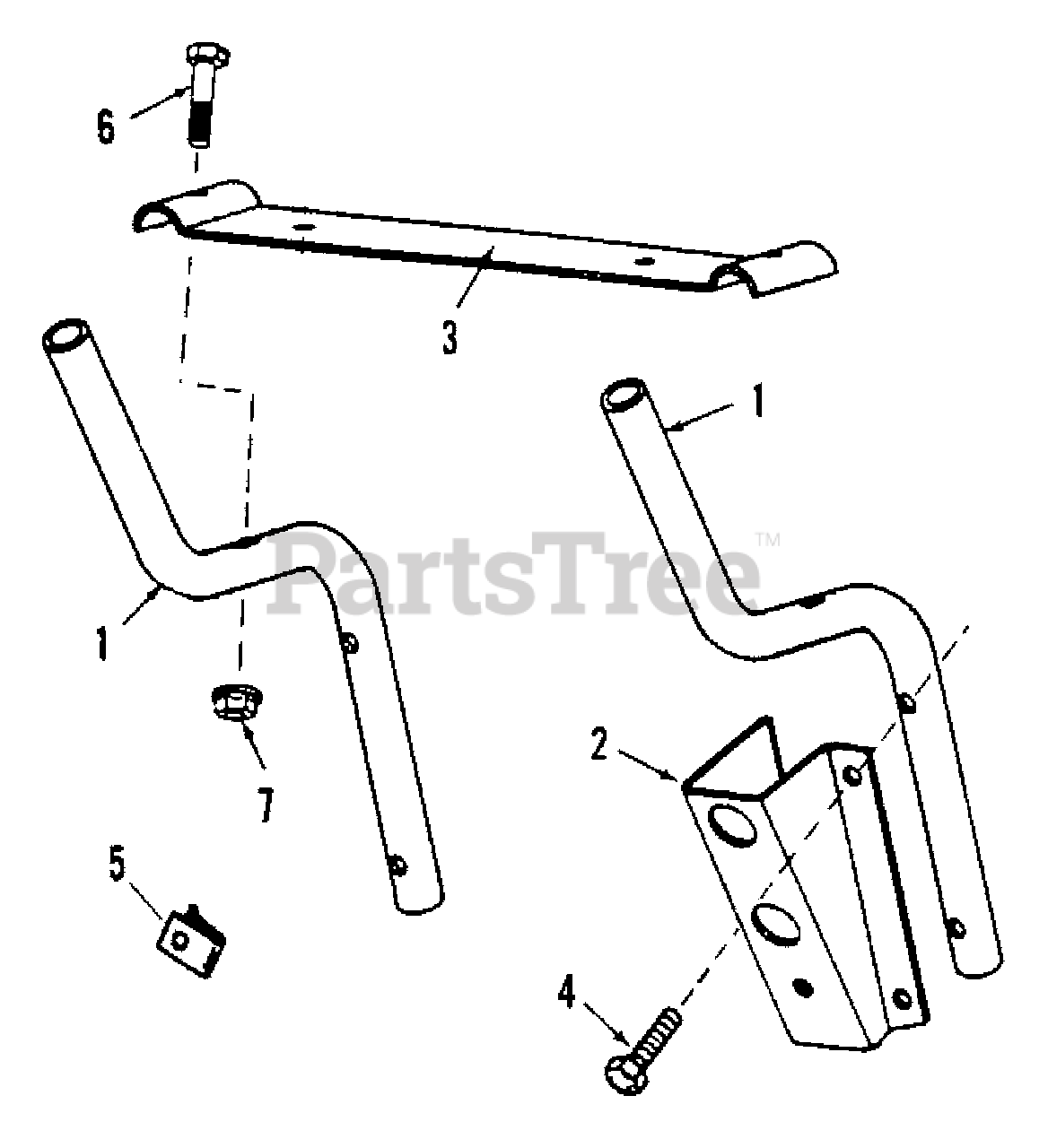

Grass Catcher Adapter Parts Diagram

  • Title
--

Snapper 7060860

KIT, Bagger Adapter
(Superseded to 7060860YP)

Note: (Includes items 1 thru 7)

$119.99

$

Usually ships in 2-12 days

0

1

Snapper 7036258

BUMPER
(Superseded to 7036258YP)

$38.99

$

Usually ships in 2-12 days

0

2

Snapper 7034020

BRACKET
(Superseded to 7034020YP)

$30.99

$

Usually ships in 2-12 days

0

3

$

$

Currently unavailable

--

Snapper 7060997

BAG, Hardware

Note: (Includes indented items below)

$

$

Currently unavailable

4

Snapper 7091592

BOLT, 5/16-18 x 2" Hex Flange Lock, Grade 5
(Superseded to 704062)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7016116

NUT, 5/16" Push-on
(Superseded to 7016116YP)

$2.49

$

In Stock, Qty 10

0

6

Snapper 7090639

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 7090639YP)

$3.49

$

In Stock, only 1 left!

0

7

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0
