7060857 - Snapper 12hp Briggs & Stratton Muffler Kit Briggs 12HP Muffler Parts Diagram

12hp Briggs & Stratton Muffler Kit

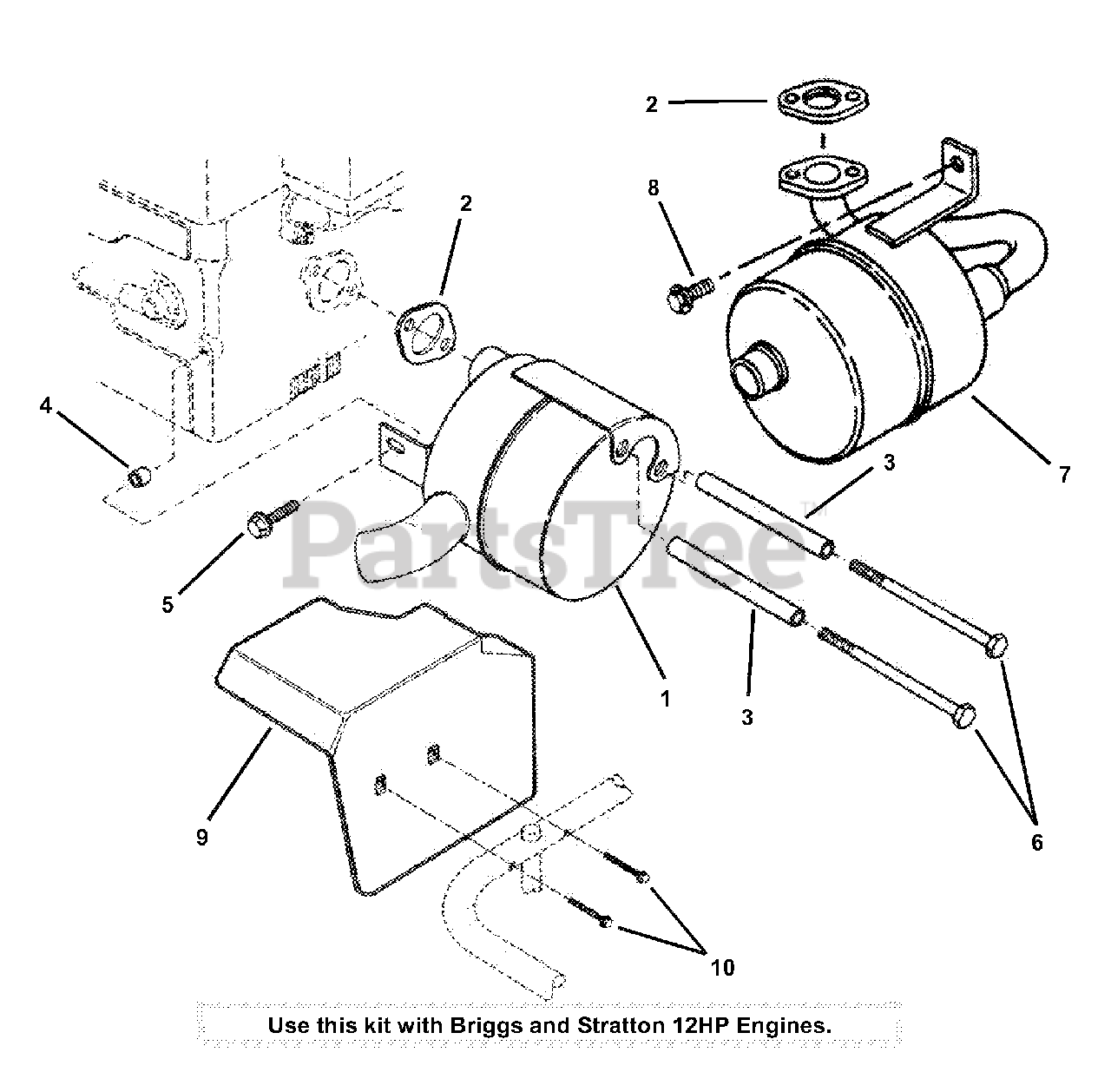

Briggs 12HP Muffler Parts Diagram

  • Title
--

Snapper 7060857

KIT, Muffler

Note: (Includes items 1 thru 6)

$

$

Not available

1

Snapper 7016026

MUFFLER, 12HP Briggs

$

$

Not available

2

Snapper 7015352

GASKET, Exhaust
(Superseded to 7015352SM)

$5.49

$

In Stock, Qty 8

0

3

Snapper 7015353

SPACER, .312 I.D. x 3-1/2"
(Superseded to 7015353YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7021866

SPACER, .33 x .5 x .40 Thick
(Superseded to 7021866YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7090986

BOLT, 1/4-20 x 1" Hex Flange Lock

$

$

Not available

6

Snapper 7090912

SCREW, 5/16-18 x 4-1/4" Hex Head Cap

$

$

Currently unavailable

8

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tapping
(Superseded to 703054)

Note: Was 90362 (Not included in this kit.)

$4.49

$

In Stock, Qty 5

0

9

Snapper 7057429

ASSEMBLY, Heat Shield
(Superseded to 7057429YP)

Note: Was 51647

$51.99

$

Usually ships in 2-12 days

0

10

Snapper 7090922

SCREW, #10-32 x 1-1/2" Hex Washer Head
(Superseded to 7090922YP)

$3.99

$

Usually ships in 2-12 days

0
